BlackStar D80ATL14H - Double Strand 80 Pitch Taper Lock Sprocket - 14 Tooth


Price:
$ 72.90

Description

The BlackStar D80ATL14H is a 80 pitch double strand Taper Lock roller chain sprocket with 14 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number D80ATL14H
Chain Pitch 80
Number of Teeth 14
Bore Type Plain Bore
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Double
Material Steel
Outside Diameter 4.98"
Pitch Diameter 4.494"
Approx. Weight 3.500 lbs

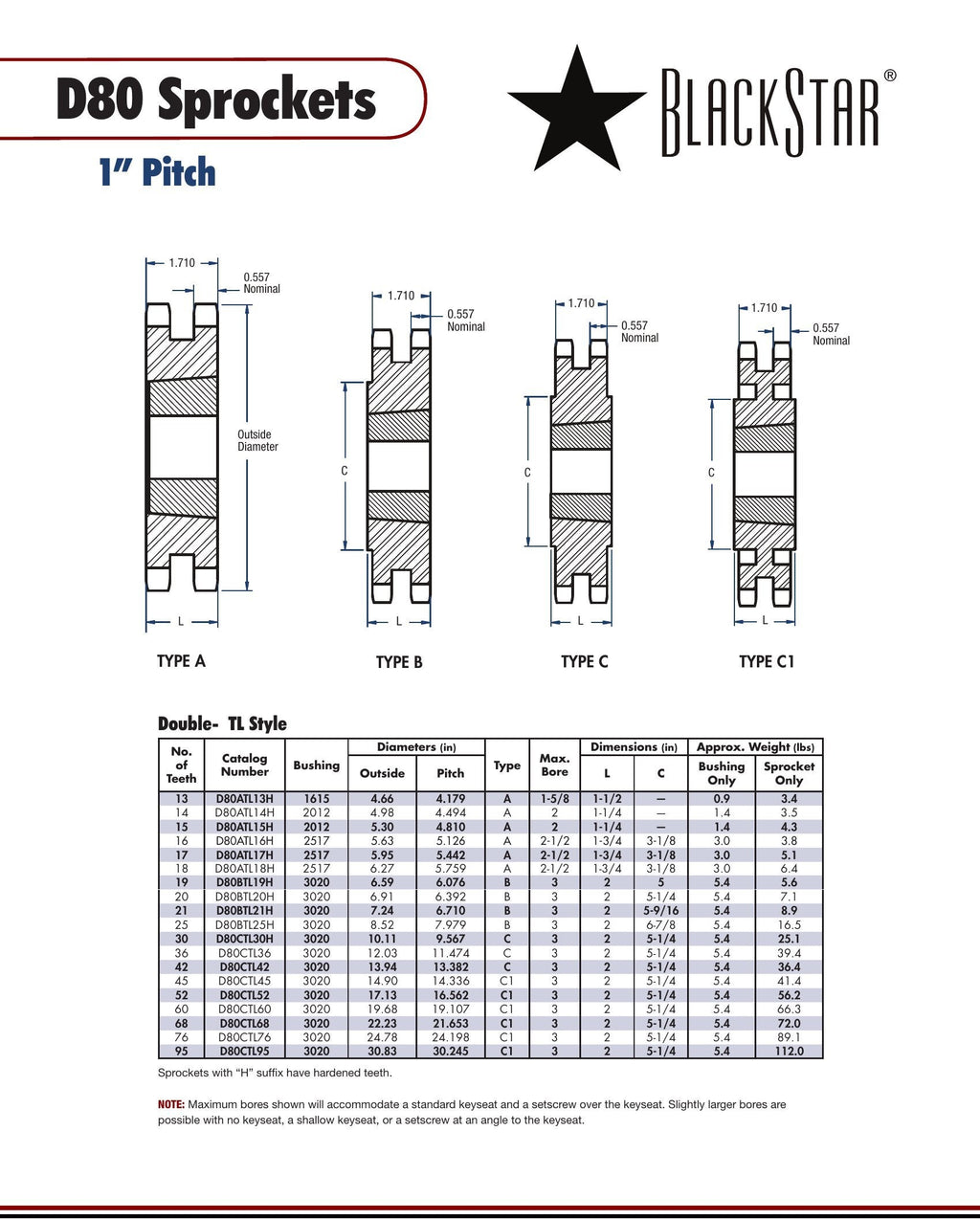

BlackStar D80ATL14H Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin D80TB14, Browning D80TB14
