BlackStar D80E60 - Double Strand 80 Pitch QD Sprocket - 60 Tooth


Price:
$ 911.74

Description

The BlackStar D80E60 is a 80 pitch double strand QD roller chain sprocket with 60 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type E Bushing (sold separately).

Specifications
Part Number D80E60
Chain Pitch 80
Number of Teeth 60
Maximum Bore 3-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type E Bushing
Strand Count Double
Material Steel
Outside Diameter 19.68"
Pitch Diameter 19.107"
Approx. Weight 68.2 lbs

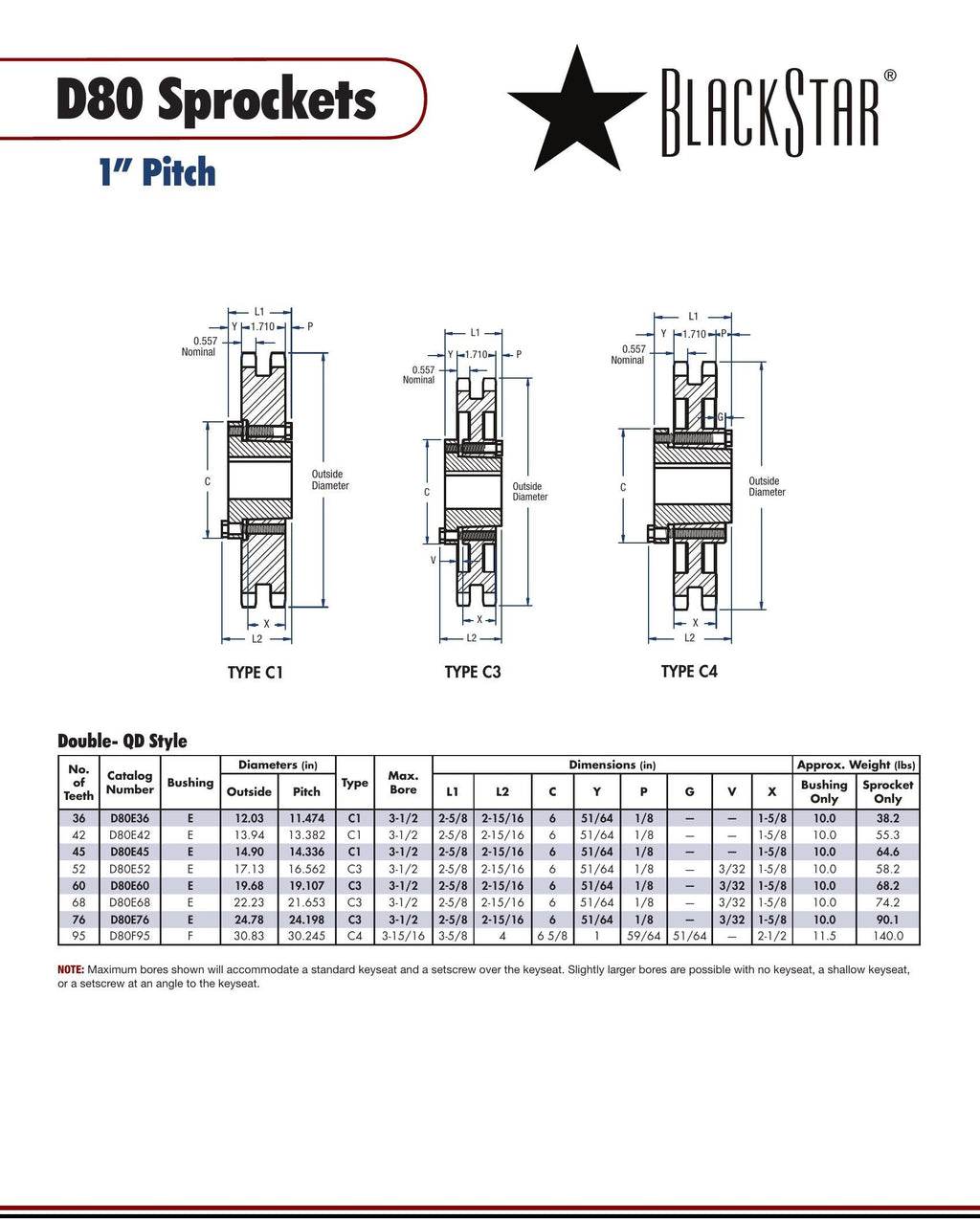

BlackStar D80E60 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type E Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type E Bushing Spec Sheet

Cross-references: Browning D80E60, Martin D80E60
