BlackStar DS40H21H - Double-Single 40 Pitch Split Taper Sprocket - 21 Tooth


Price:
$ 46.66

Description

The BlackStar DS40H21H is a 40 pitch double-single strand Split Taper roller chain sprocket with 21 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Split Taper Bushing (sold separately).

Specifications
Part Number DS40H21H
Chain Pitch 40
Number of Teeth 21
Bore Type Split Taper
Hub Style Split Taper
Bushing Required Split Taper Bushing
Strand Count Double-Single
Material Steel
Outside Diameter 3.62"
Pitch Diameter 3.355"
Approx. Weight 2.000 lbs
BlackStar DS40H21H Sprocket Spec Sheet

Bushing Required

This sprocket requires a Split Taper Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

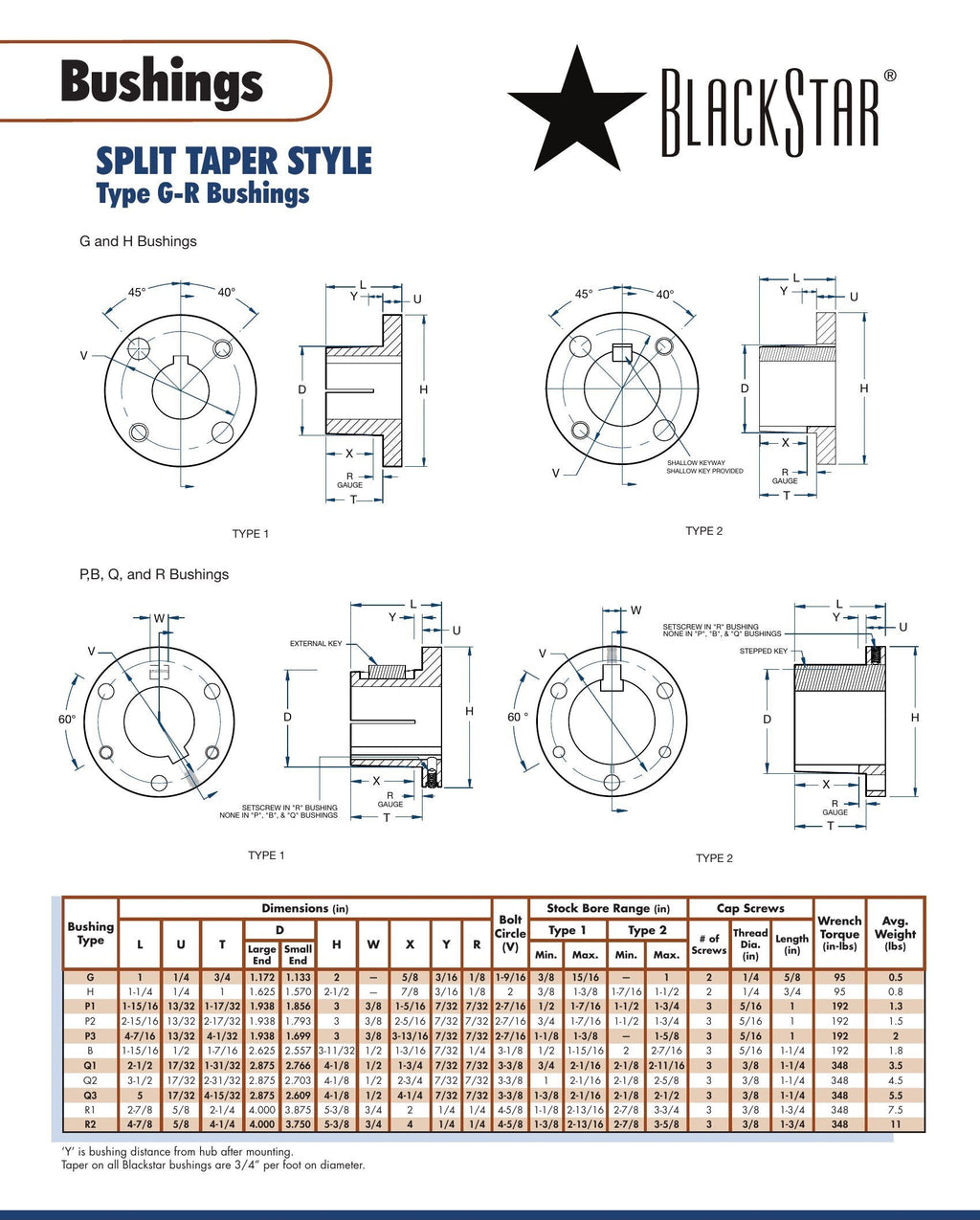

BlackStar Split Taper Bushing Spec Sheet
