BlackStar H120J32 - 120 Pitch QD Sprocket - 32 Tooth


Price:
$ 458.30

Description

The BlackStar H120J32 is a 120 pitch QD roller chain sprocket with 32 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type JA Bushing (sold separately).

Specifications
Part Number H120J32
Chain Pitch 120
Number of Teeth 32
Bore Type QD
Hub Style QD
Bushing Required QD Type JA Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 16.13"
Pitch Diameter 15.303"
Approx. Weight 58.900 lbs

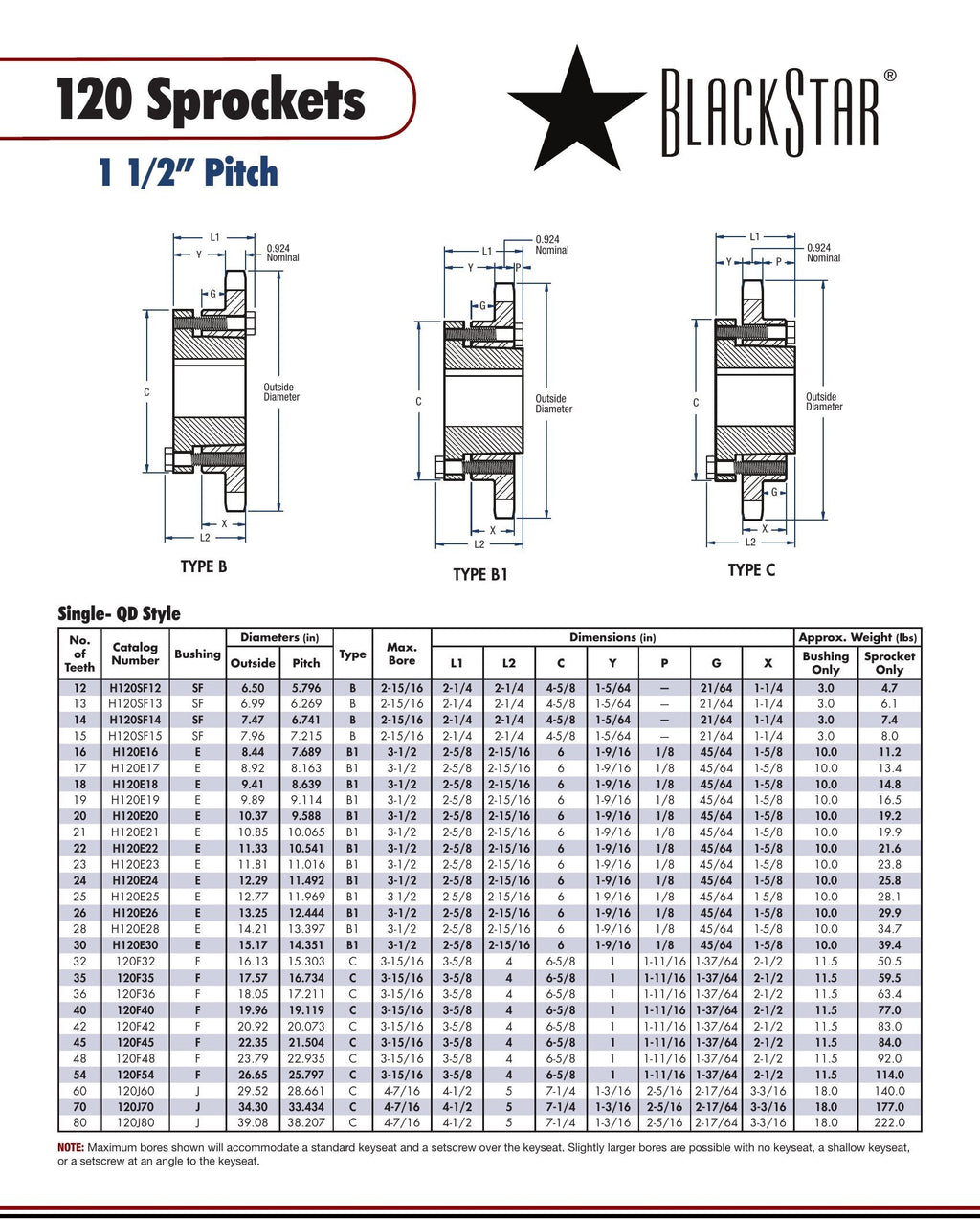

BlackStar H120J32 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type JA Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type JA Bushing Spec Sheet
