BlackStar H200S15 - 200 Pitch Split Taper Sprocket - 15 Tooth


Price:
$ 854.87

Description

The BlackStar H200S15 is a 200 pitch Split Taper roller chain sprocket with 15 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Split Taper Bushing (sold separately).

Specifications
Part Number H200S15
Chain Pitch 200
Number of Teeth 15
Bore Type Plain Bore
Hub Style Split Taper
Bushing Required Split Taper Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 13.26"
Pitch Diameter 12.025"
Approx. Weight 61.000 lbs
BlackStar H200S15 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Split Taper Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

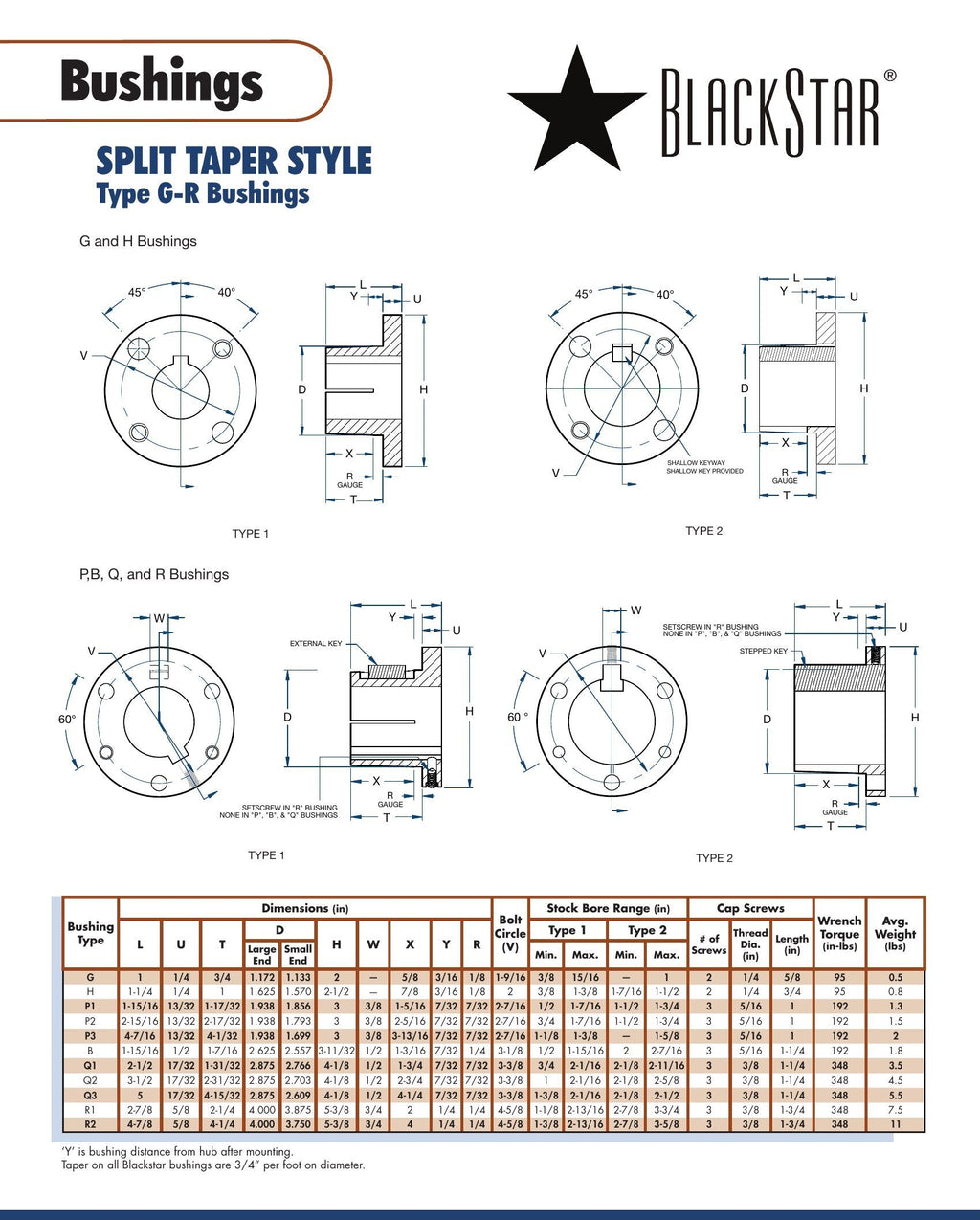

BlackStar Split Taper Bushing Spec Sheet
