BlackStar H35JA25 - 35 Pitch QD Sprocket - 25 Tooth


Price:
$ 20.90

Description

The BlackStar H35JA25 is a 35 pitch QD roller chain sprocket with 25 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type JA Bushing (sold separately).

Specifications
Part Number H35JA25
Chain Pitch 35
Number of Teeth 25
Maximum Bore 1-1/4"
Bore Type QD
Hub Style QD
Bushing Required QD Type JA Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 3.19"
Pitch Diameter 2.992"
Approx. Weight 0.4 lbs

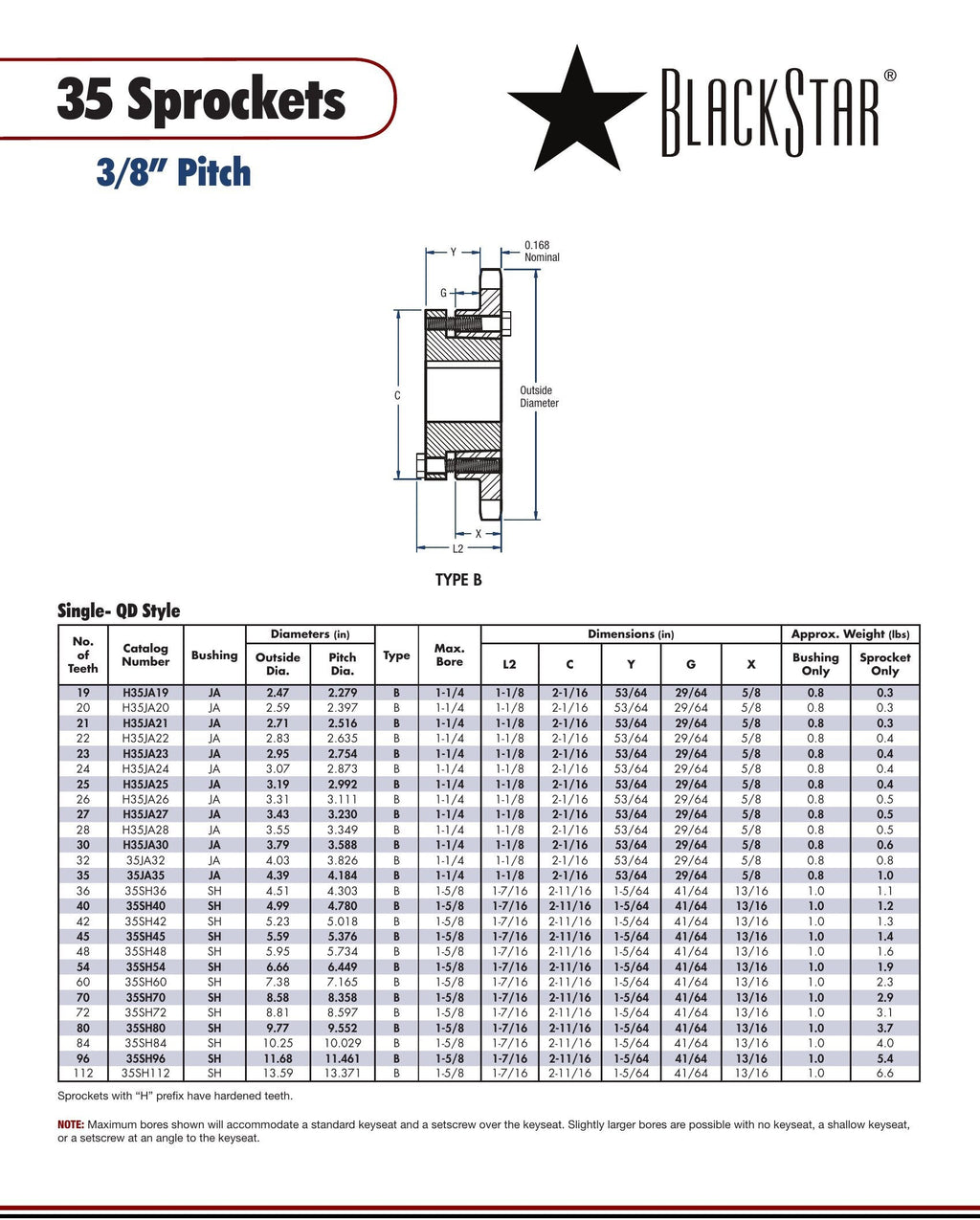

BlackStar H35JA25 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type JA Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type JA Bushing Spec Sheet
