BlackStar H40H20 - 40 Pitch Split Taper Sprocket - 20 Tooth


Price:
$ 25.76

Description

The BlackStar H40H20 is a 40 pitch Split Taper roller chain sprocket with 20 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Split Taper Bushing (sold separately).

Specifications
Part Number H40H20
Chain Pitch 40
Number of Teeth 20
Bore Type Split Taper
Hub Style Split Taper
Bushing Required Split Taper Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 3.46"
Pitch Diameter 3.196"
Approx. Weight 0.900 lbs
BlackStar H40H20 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Split Taper Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

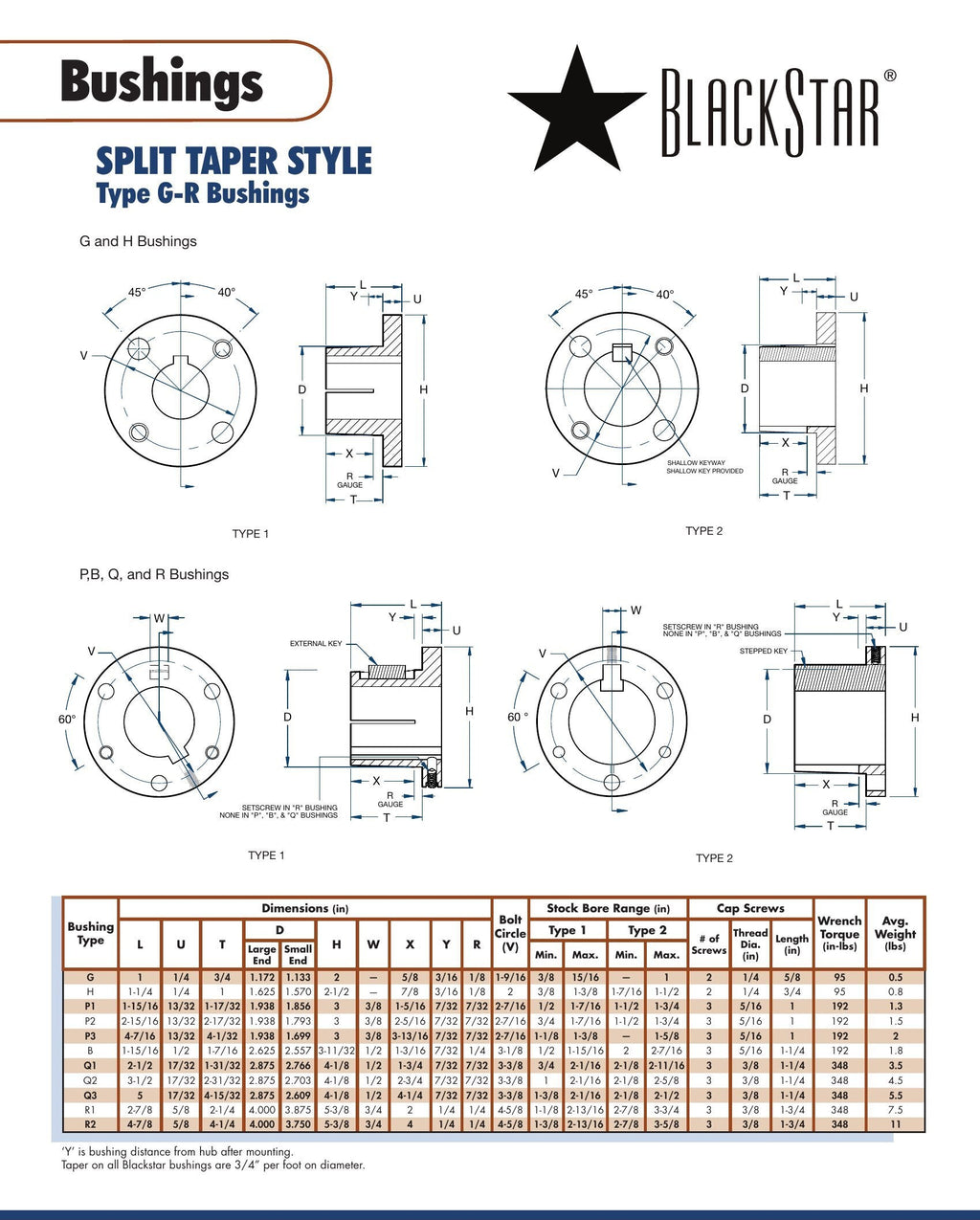

BlackStar Split Taper Bushing Spec Sheet
