BlackStar H40JA19 - 40 Pitch QD Sprocket - 19 Tooth


Price:
$ 18.47

Description

The BlackStar H40JA19 is a 40 pitch QD roller chain sprocket with 19 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type JA Bushing (sold separately).

Specifications
Part Number H40JA19
Chain Pitch 40
Number of Teeth 19
Maximum Bore 1"
Bore Type QD
Hub Style QD
Bushing Required QD Type JA Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 3.30"
Pitch Diameter 3.038"
Approx. Weight 0.6 lbs

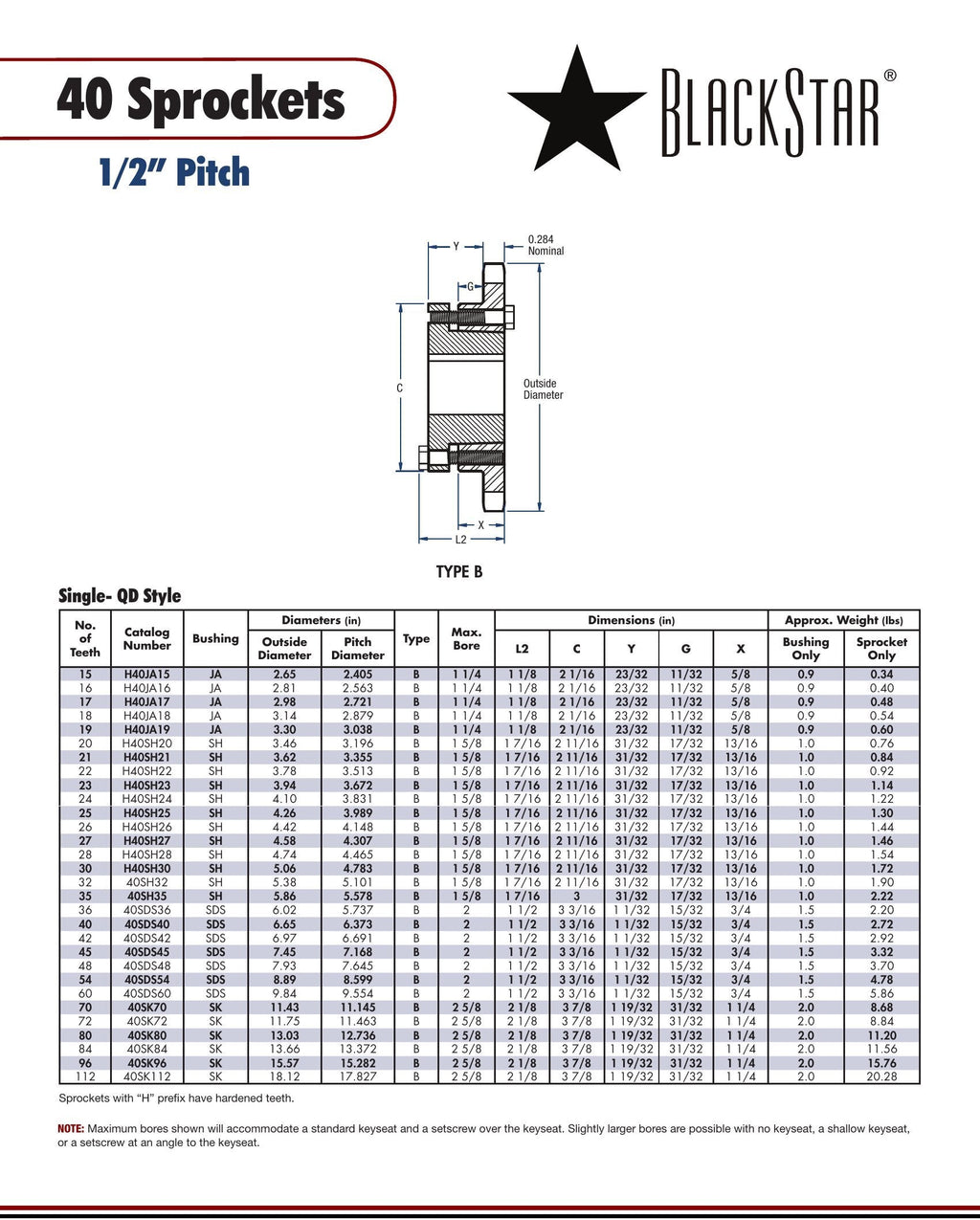

BlackStar H40JA19 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type JA Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type JA Bushing Spec Sheet
