BlackStar H40SH22 - 40 Pitch QD Sprocket - 22 Tooth


Price:
$ 24.30

Description

The BlackStar H40SH22 is a 40 pitch QD roller chain sprocket with 22 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SH Bushing (sold separately).

Specifications
Part Number H40SH22
Chain Pitch 40
Number of Teeth 22
Maximum Bore 1"
Bore Type QD
Hub Style QD
Bushing Required QD Type SH Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 3.78"
Pitch Diameter 3.513"
Approx. Weight 0.92 lbs

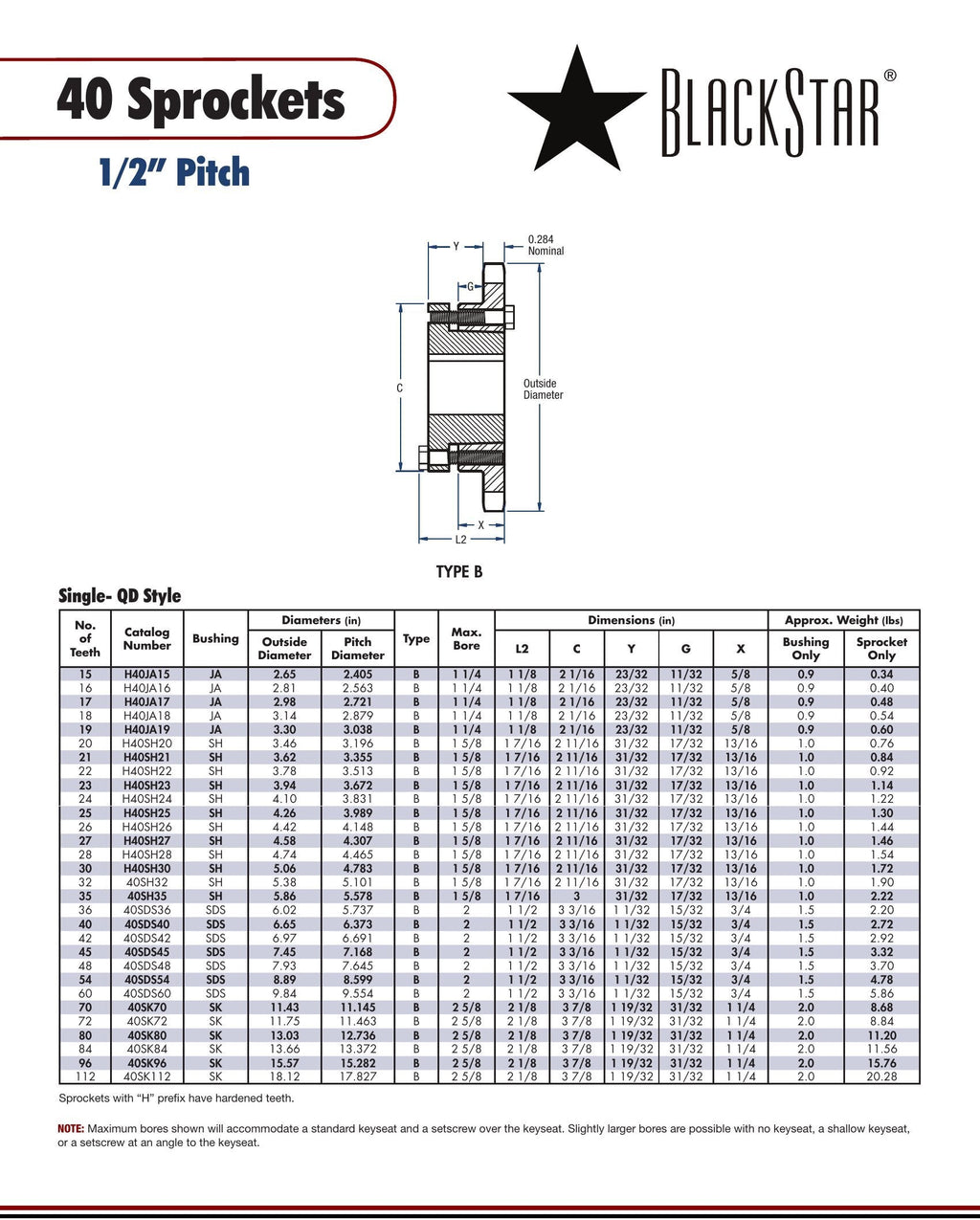

BlackStar H40SH22 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type SH Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type SH Bushing Spec Sheet
