BlackStar H60SF60 - 60 Pitch QD Sprocket - 60 Tooth


Price:
$ 184.19

Description

The BlackStar H60SF60 is a 60 pitch QD roller chain sprocket with 60 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SF Bushing (sold separately).

Specifications
Part Number H60SF60
Chain Pitch 60
Number of Teeth 60
Maximum Bore 2-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type SF Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 14.76"
Pitch Diameter 14.330"
Approx. Weight 20.8 lbs

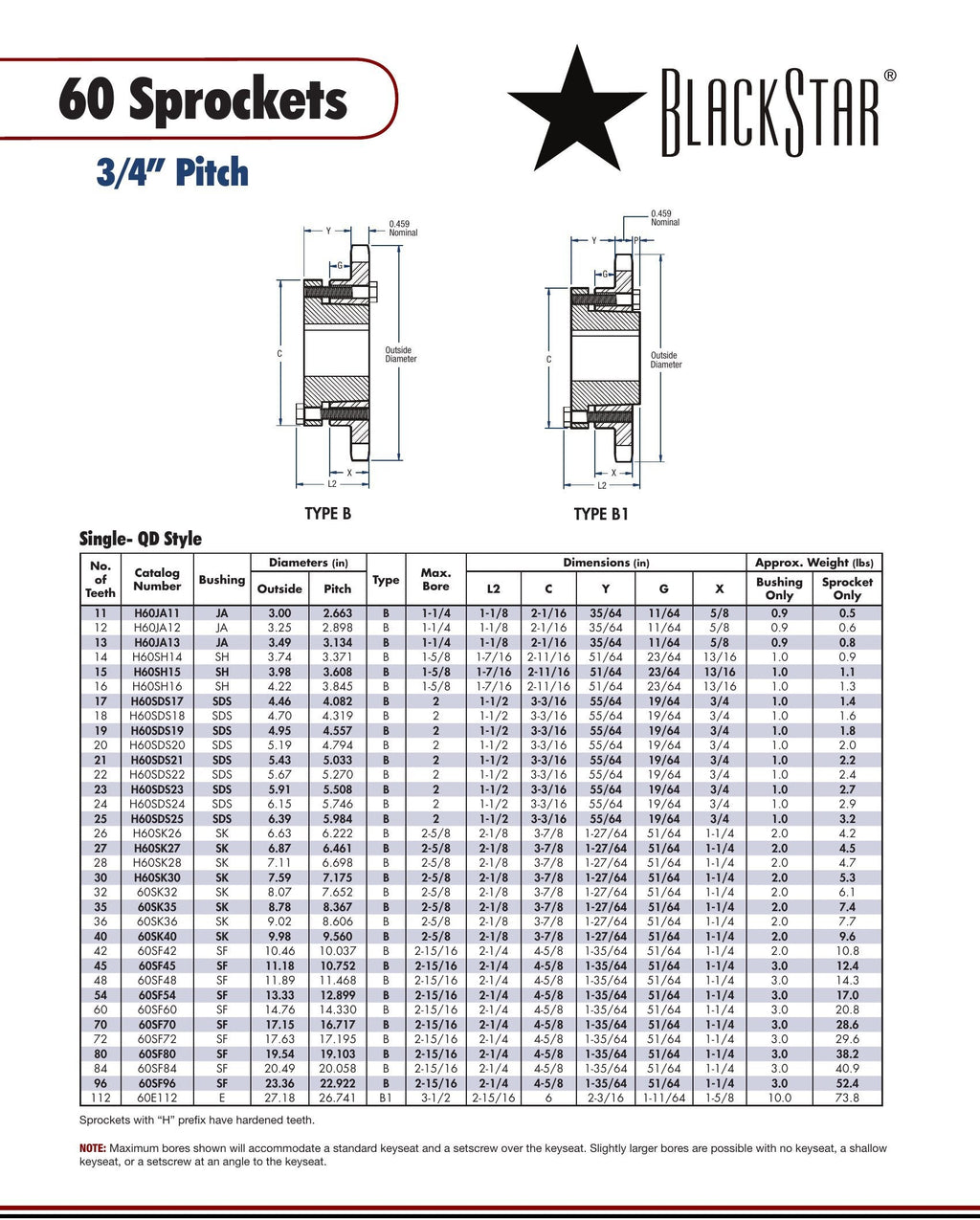

BlackStar H60SF60 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type SF Bushing Spec Sheet
