BlackStar H80BTL12 REV MNT - 80 Pitch Taper Lock Sprocket - 12 Tooth


Price:
$ 41.80

Description

The BlackStar H80BTL12 REV MNT is a 80 pitch Taper Lock roller chain sprocket with 12 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number H80BTL12 REV MNT
Chain Pitch 80
Number of Teeth 12
Bore Type Taper Lock
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 4.33"
Pitch Diameter 3.864"
Approx. Weight 1.8 lbs

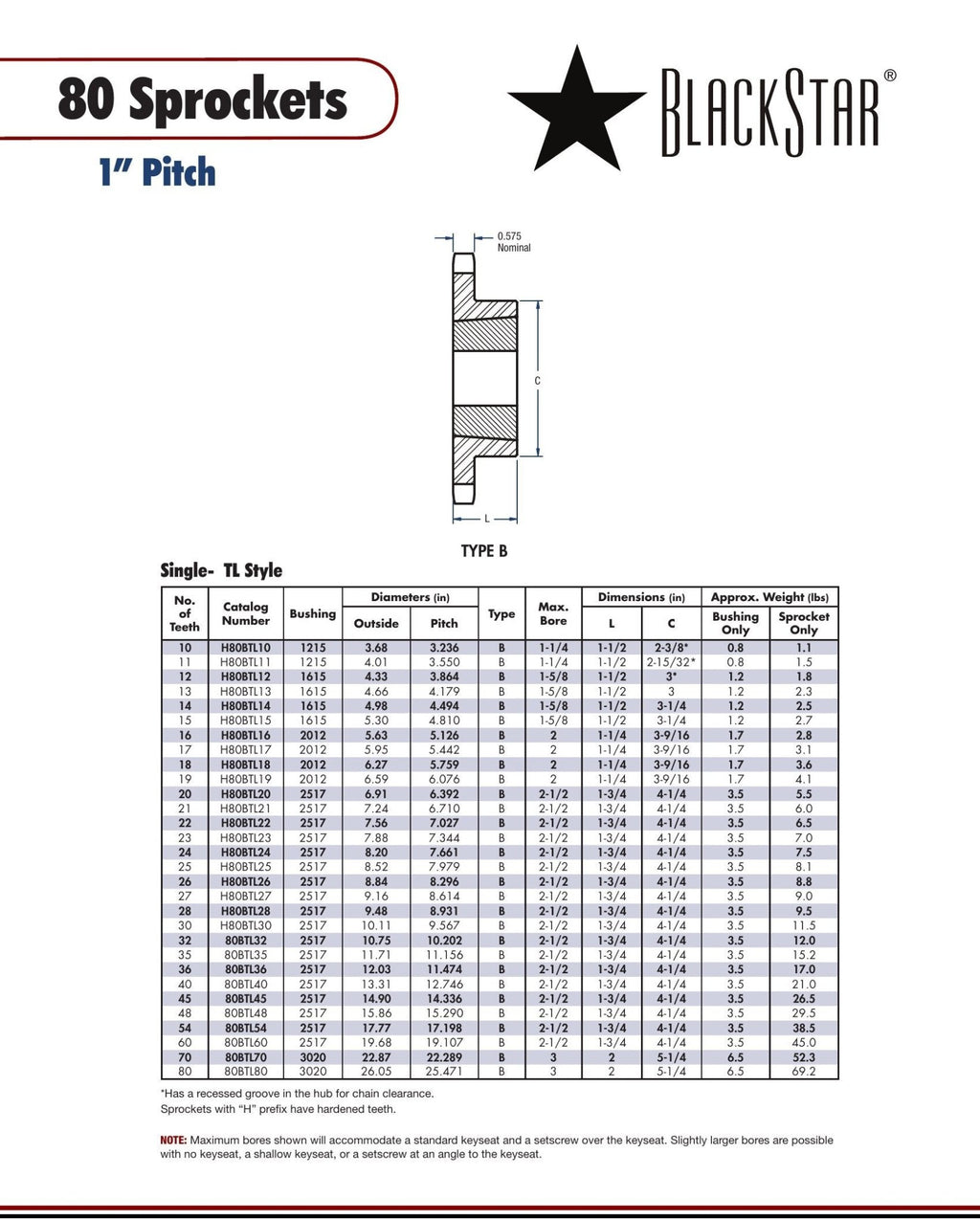

BlackStar H80BTL12 REV MNT Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin 80TB12, Browning 80TB12
