BlackStar H80BTL27 - 80 Pitch Taper Lock Sprocket - 27 Tooth


Price:
$ 147.26

Description

The BlackStar H80BTL27 is a 80 pitch Taper Lock roller chain sprocket with 27 teeth, precision manufactured from SAE 1045 steel with induction-hardened teeth for extended wear life and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number H80BTL27
Chain Pitch 80
Number of Teeth 27
Bore Type Taper Lock
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Single
Material Steel
Hardened Teeth Yes
Outside Diameter 9.16"
Pitch Diameter 8.614"
Approx. Weight 9.0 lbs

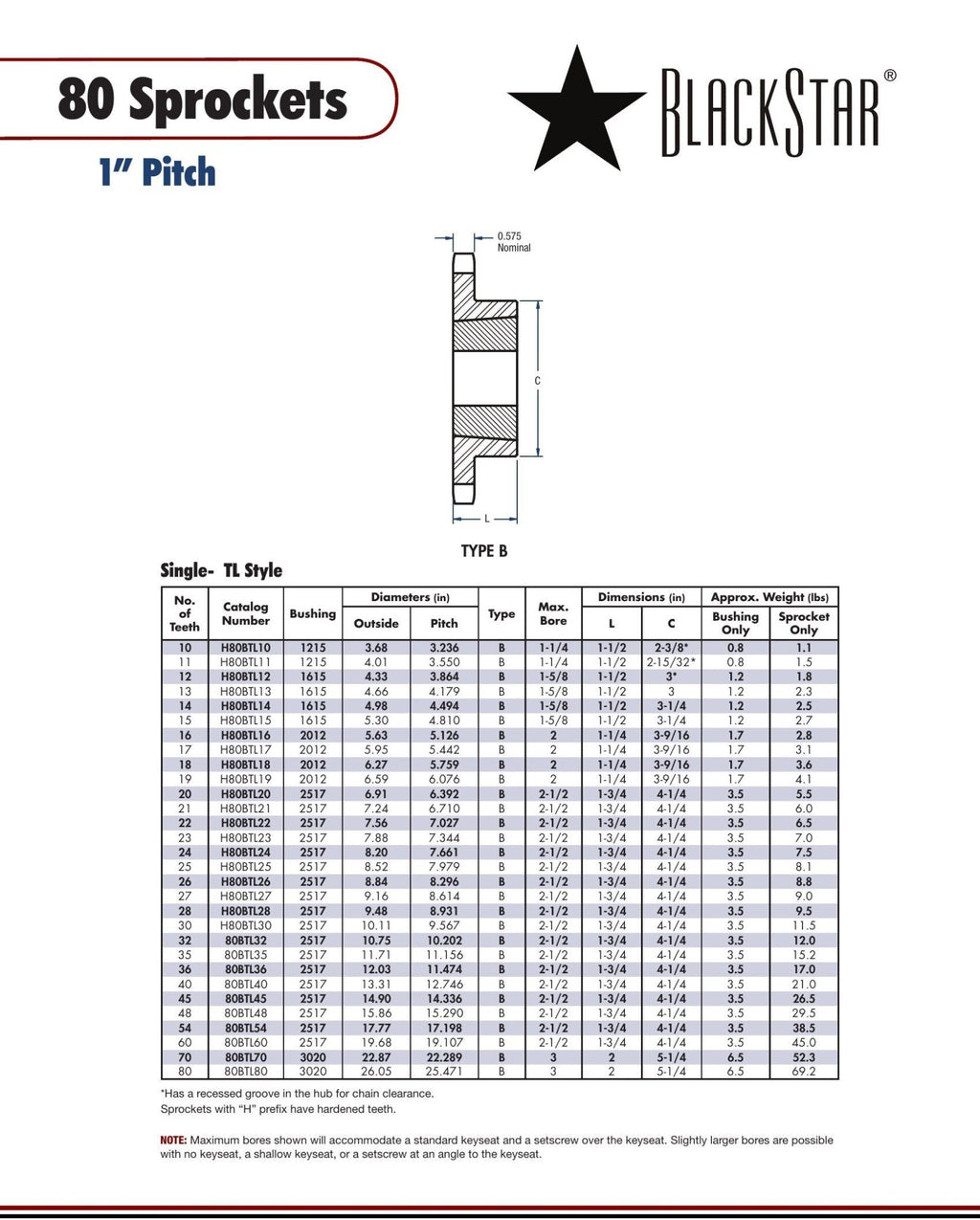

BlackStar H80BTL27 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin 80TB27, Browning 80TB27
