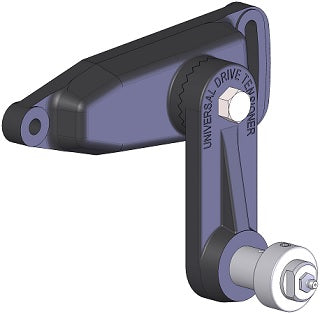

Brewer TM22 Automatic Spring Tensioner — 22lb (RED)


Price:
$ 217.20

Description

Brewer TM22 Automatic Spring Universal Drive Tensioner. Manufactured in St. Louis, MO. Sold by Texas Belting & Supply, an authorized Brewer distributor.

Authorized Brewer distributor · Same-day shipping from Houston
Volume pricing on quantities of 5+. Need application help or a different mount style? Call 888-203-2358 — you'll talk to a real person who knows tensioners.

Spring & Pivot

Spring Force 22lb(RED)
Pivot Range 90º BothDirections from Center

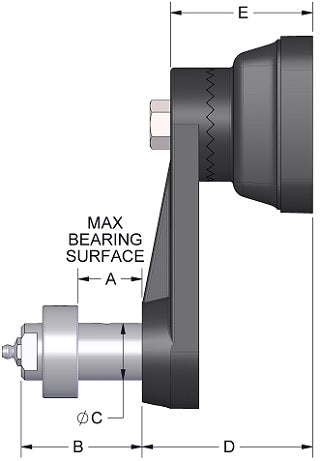

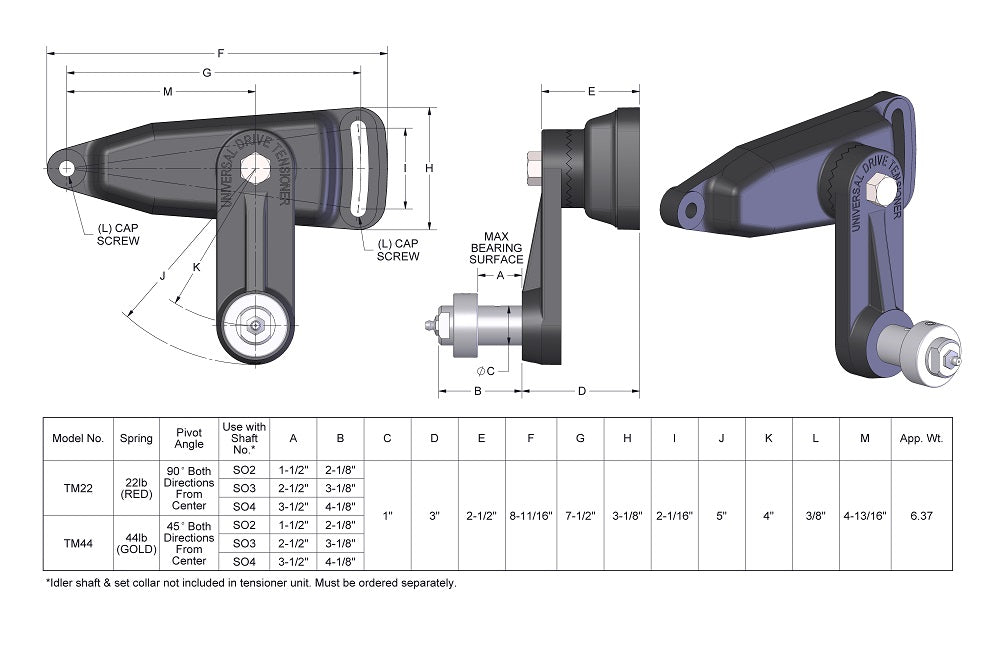

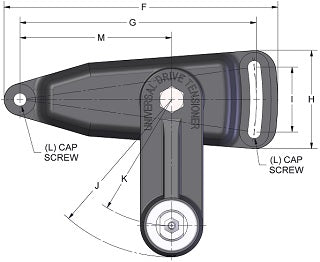

Specifications

Dimension C 1"
Dimension D 3"
Dimension E 2-1/2"
Dimension F 8-11/16"
Dimension G 7-1/2"
Dimension H 3-1/8"
Dimension I 2-1/16"
Dimension J 5"
Dimension K 4"
Dimension L 3/8"
Dimension M 4-13/16"
Weight 6.37 lb

Compatible Idler Shafts

Sold separately. Different shafts produce different overall assembled length (Dim A):

Shaft Overall Dim A
SO2 1-1/2"
SO3 2-1/2"
SO4 3-1/2"

CAD Drawings

Why Brewer

  • Universal Drive Tensioner® — full 360° controlled tensioning, eliminates shock loading from chain vibration and HP loss from belt slippage
  • Reverse-motion capable; parallel and square machined mounting surfaces for true alignment
  • Manufactured in St. Louis, MO since 1944 — sold through authorized industrial distributors
