Description

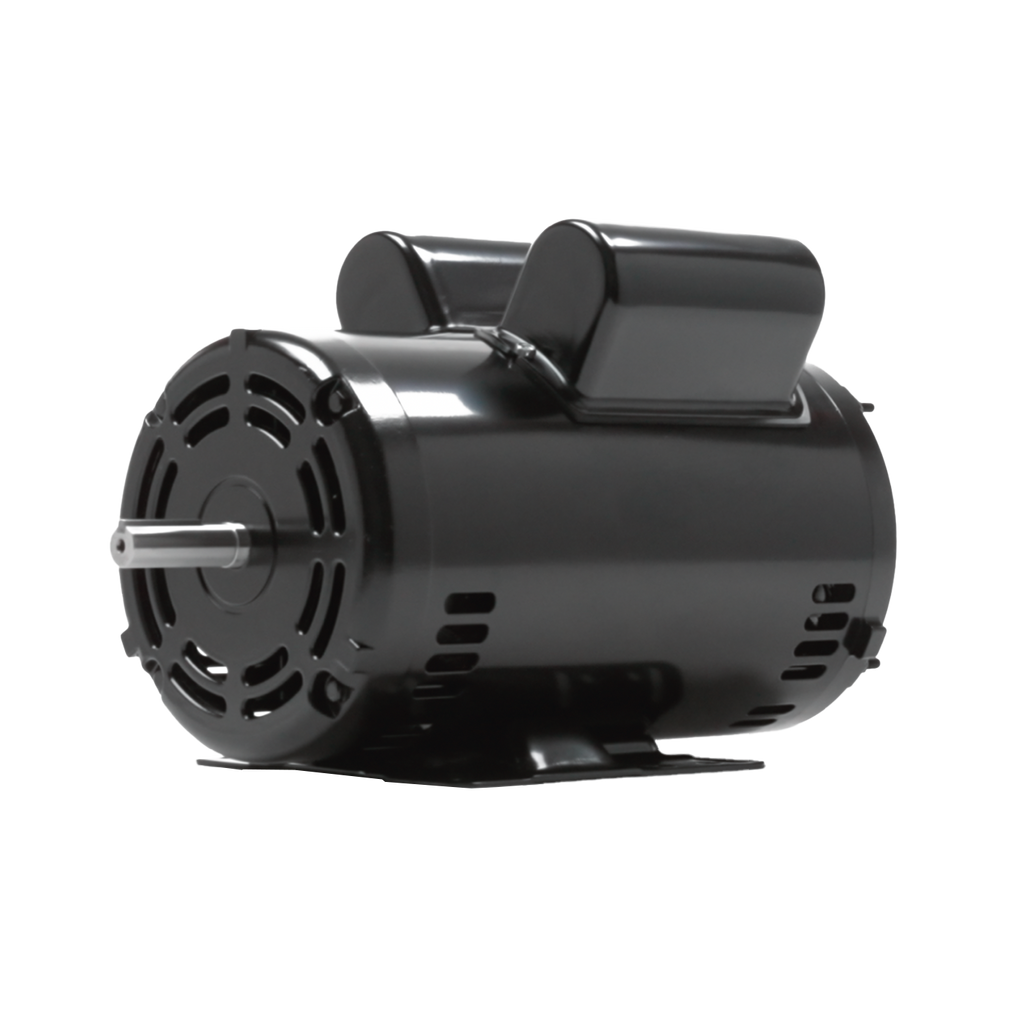

CDM2-36-56 — Compressor Duty Motor
The CDM2-36-56 is a 2 hp, 3600 rpm, 1-phase, 115/230v, 56 frame, odp compressor duty motor for reciprocating and rotary-screw air compressors. ODP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | CDM2-36-56 |
| Horsepower (HP) | 2 |
| Speed (RPM) | 3600 |
| Phase | Single-Phase |
| Voltage | 115/230 |
| Frequency | 60 HZ |
| NEMA Frame | 56 |
| Enclosure | ODP |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 82.9 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP23 |
| Weight (lbs) | 39 |
| Warranty | One Year |
Applications
- Reciprocating and rotary-screw air compressors
- Belt-driven compressor packages
- High-cycle, high-torque starting loads
- Shop and farm compressed-air systems
Documentation & Downloads
Frequently Asked Questions
What is the CDM2-36-56 used for?
The CDM2-36-56 is a 2 hp, 3600 rpm, 1-phase, 115/230v, 56 frame, odp compressor duty motor used for reciprocating and rotary-screw air compressors and similar loads.
What frame is the CDM2-36-56?
The CDM2-36-56 uses a NEMA 56 frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the CDM2-36-56 run on?
The CDM2-36-56 is rated 115/230V, 1-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the CDM2-36-56 ship?
Most in-stock units of the CDM2-36-56 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
