Description

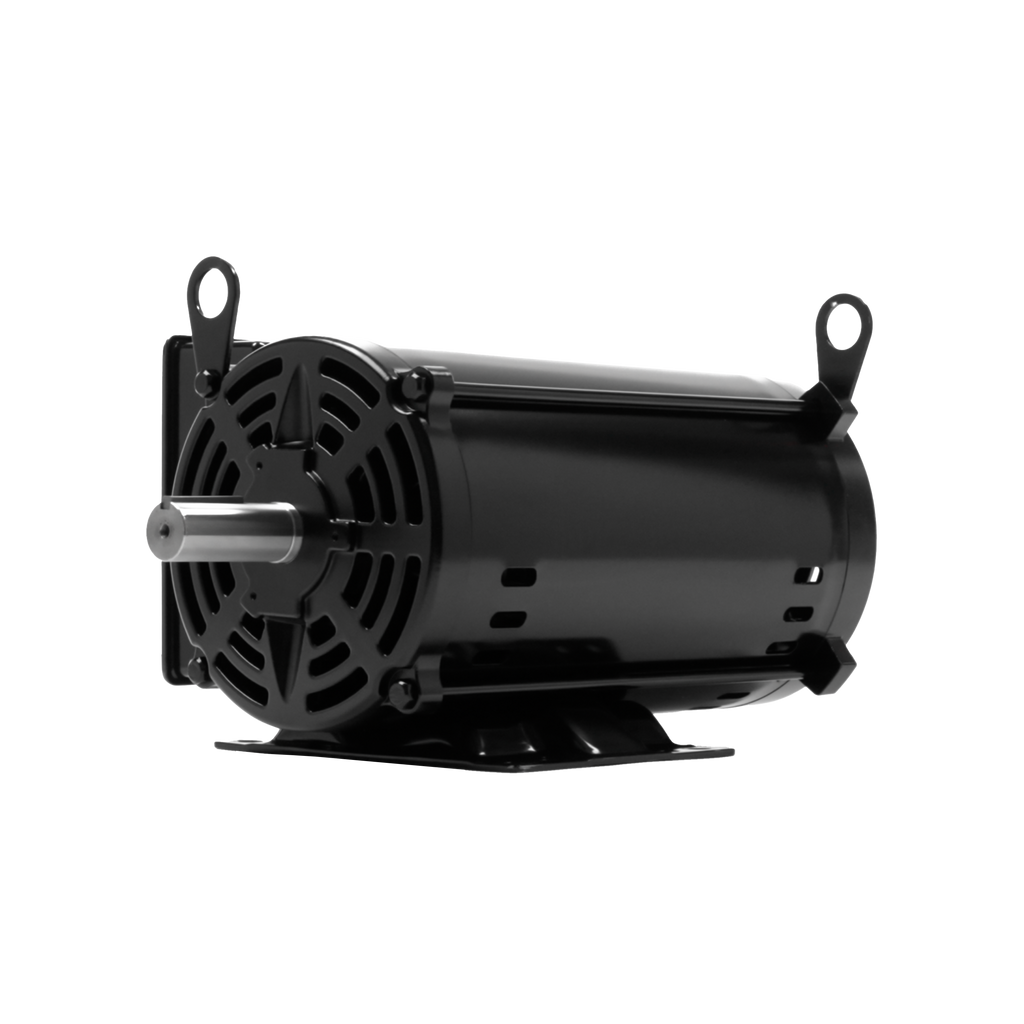

CDM3-18-182T — Compressor Duty Motor
The CDM3-18-182T is a 3 hp, 1800 rpm, 1-phase, 115/230v, 182t frame, odp compressor duty motor for reciprocating and rotary-screw air compressors. ODP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | CDM3-18-182T |
| Horsepower (HP) | 3 |
| Speed (RPM) | 1800 |
| Phase | Single-Phase |
| Voltage | 115/230 |
| Frequency | 60 HZ |
| NEMA Frame | 182T |
| Enclosure | ODP |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 84.5 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP23 |
| Weight (lbs) | 76 |
| Warranty | One Year |
Applications
- Reciprocating and rotary-screw air compressors
- Belt-driven compressor packages
- High-cycle, high-torque starting loads
- Shop and farm compressed-air systems
Documentation & Downloads
Frequently Asked Questions
What is the CDM3-18-182T used for?
The CDM3-18-182T is a 3 hp, 1800 rpm, 1-phase, 115/230v, 182t frame, odp compressor duty motor used for reciprocating and rotary-screw air compressors and similar loads.
What frame is the CDM3-18-182T?
The CDM3-18-182T uses a NEMA 182T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the CDM3-18-182T run on?
The CDM3-18-182T is rated 115/230V, 1-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the CDM3-18-182T ship?
Most in-stock units of the CDM3-18-182T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
