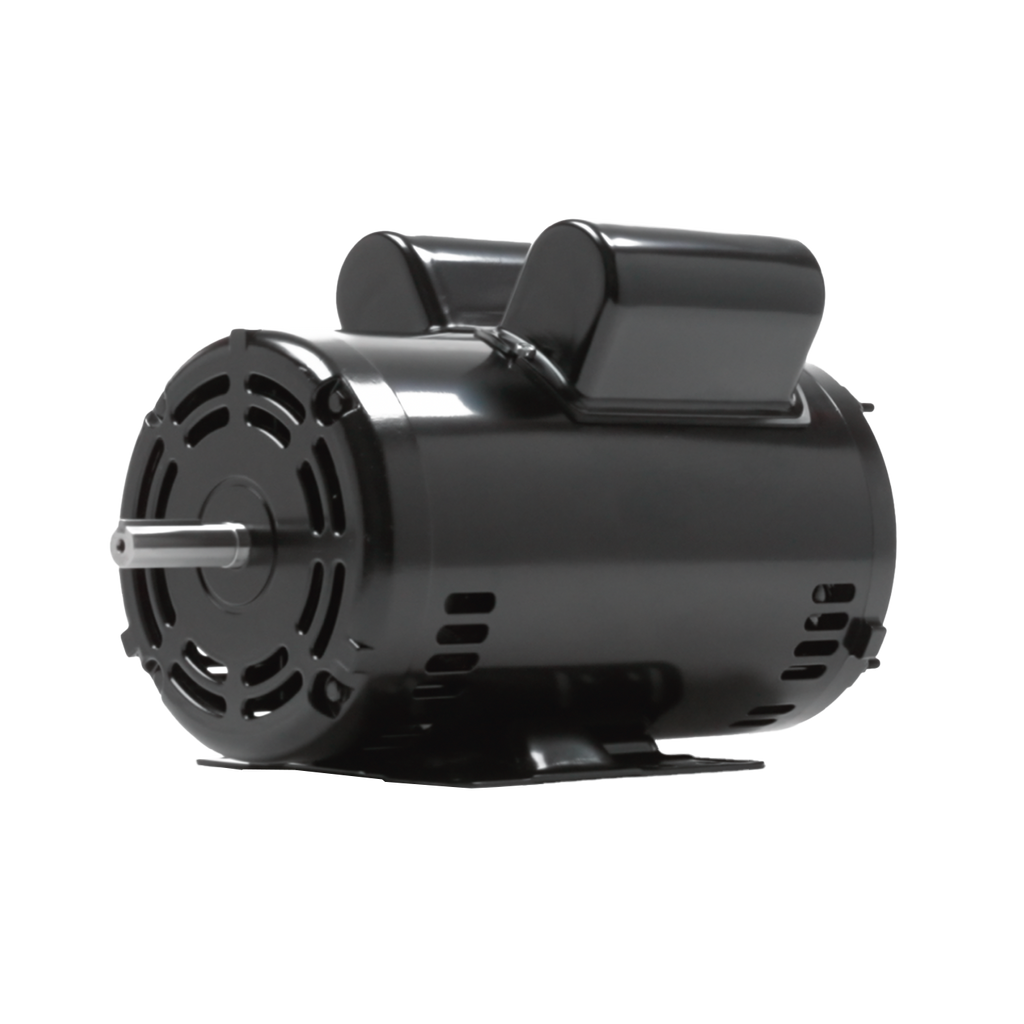

CDM3-36-56 — Compressor Duty Motor


Price:
$ 405.36

Description

CDM3-36-56 — Compressor Duty Motor

The CDM3-36-56 is a 3 hp, 3600 rpm, 1-phase, 115/230v, 56 frame, odp compressor duty motor for reciprocating and rotary-screw air compressors. ODP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number CDM3-36-56
Horsepower (HP) 3
Speed (RPM) 3600
Phase Single-Phase
Voltage 115/230
Frequency 60 HZ
NEMA Frame 56
Enclosure ODP
Service Factor 1.15
Full-Load Efficiency (%) 84.1
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP23
Weight (lbs) 47
Warranty One Year

Applications

  • Reciprocating and rotary-screw air compressors
  • Belt-driven compressor packages
  • High-cycle, high-torque starting loads
  • Shop and farm compressed-air systems

Documentation & Downloads

Frequently Asked Questions

What is the CDM3-36-56 used for?

The CDM3-36-56 is a 3 hp, 3600 rpm, 1-phase, 115/230v, 56 frame, odp compressor duty motor used for reciprocating and rotary-screw air compressors and similar loads.

What frame is the CDM3-36-56?

The CDM3-36-56 uses a NEMA 56 frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the CDM3-36-56 run on?

The CDM3-36-56 is rated 115/230V, 1-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the CDM3-36-56 ship?

Most in-stock units of the CDM3-36-56 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on CDM3-36-56?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
