CDM5-18-184T — Compressor Duty Motor


Price:
$ 659.69

Description

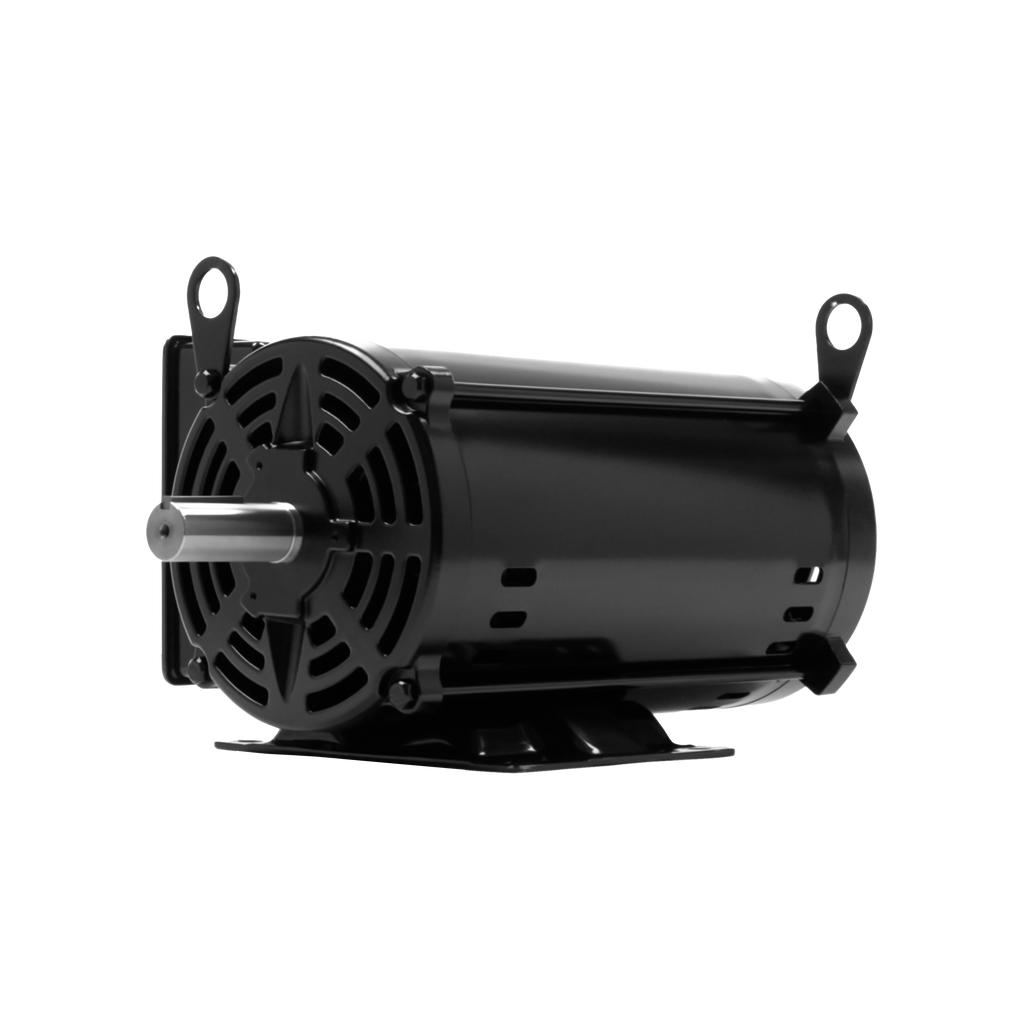

CDM5-18-184T — Compressor Duty Motor

The CDM5-18-184T is a 5 hp, 1800 rpm, 1-phase, 230v, 184t frame, odp compressor duty motor for reciprocating and rotary-screw air compressors. ODP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number CDM5-18-184T
Horsepower (HP) 5
Speed (RPM) 1800
Phase Single-Phase
Voltage 230
Frequency 60 HZ
NEMA Frame 184T
Enclosure ODP
Service Factor 1.15
Full-Load Efficiency (%) 87.5
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP23
Weight (lbs) 100
Warranty One Year

Applications

  • Reciprocating and rotary-screw air compressors
  • Belt-driven compressor packages
  • High-cycle, high-torque starting loads
  • Shop and farm compressed-air systems

Documentation & Downloads

Frequently Asked Questions

What is the CDM5-18-184T used for?

The CDM5-18-184T is a 5 hp, 1800 rpm, 1-phase, 230v, 184t frame, odp compressor duty motor used for reciprocating and rotary-screw air compressors and similar loads.

What frame is the CDM5-18-184T?

The CDM5-18-184T uses a NEMA 184T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the CDM5-18-184T run on?

The CDM5-18-184T is rated 230V, 1-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the CDM5-18-184T ship?

Most in-stock units of the CDM5-18-184T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
