D1420-5M-09 Timing Belt


Price:
$ 37.89

Description

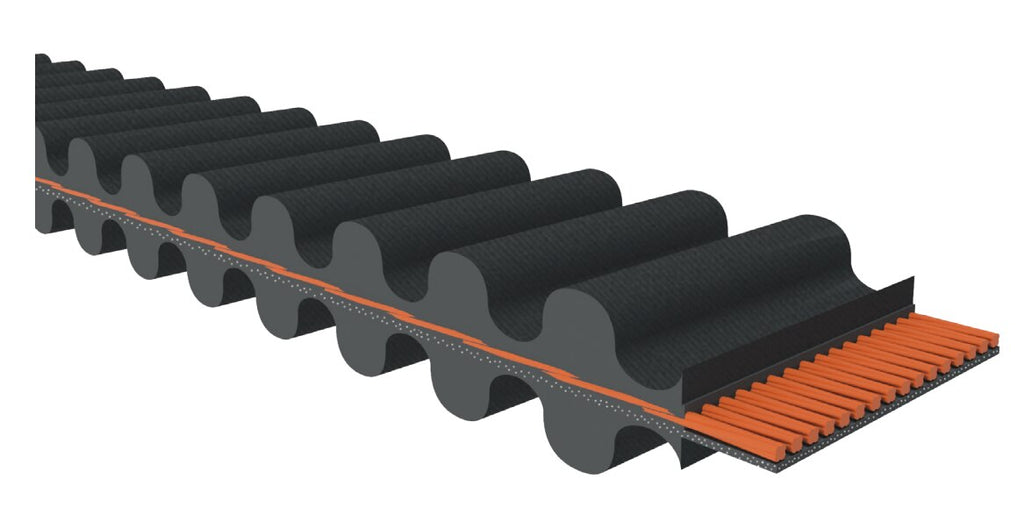

D1420-5M-09 Timing Belt

The D1420-5M-09 is a timing belt from D&D Global's Dual Dura-Sync Torque - 5M Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.

Specification Value
Part Number D1420-5M-09
Belt Type Timing Belt
Tooth Profile D5M HTD (curvilinear)
Tooth Pitch 5 mm
Number of Teeth 284
Belt Width 9 mm
Pitch Length 1420 mm (Pitch Length)
Construction Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover
Weight 0.127 lb
UPC 190859201687

Applications

  • Conveyors and indexing drives
  • Pumps, compressors, and blowers
  • Packaging, processing, and automation equipment
  • Positive drives where timing must stay locked with no slip

Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.

Cross-Reference

D1420-5M-09 is a standardized industry size, so a D1420-5M-09 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.

All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.

Frequently Asked Questions

What is D1420-5M-09 used for?

D1420-5M-09 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.

What are the dimensions of D1420-5M-09?

D1420-5M-09 has a 5 mm tooth pitch, 284 teeth, a belt width of 9 mm, and a 1420 mm (Pitch Length). The pitch length is the pitch-line circumference.

What does the D5M in D1420-5M-09 mean?

D5M is a HTD (curvilinear) synchronous tooth profile. The belt must match the pulley, so a D5M belt runs only on D5M pulleys.

Does D1420-5M-09 ship from Houston?

Yes. D1420-5M-09 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.

Need a quote on D1420-5M-09?

Houston warehouse — same-day shipping on stock items.

Call (888) 203-2358
