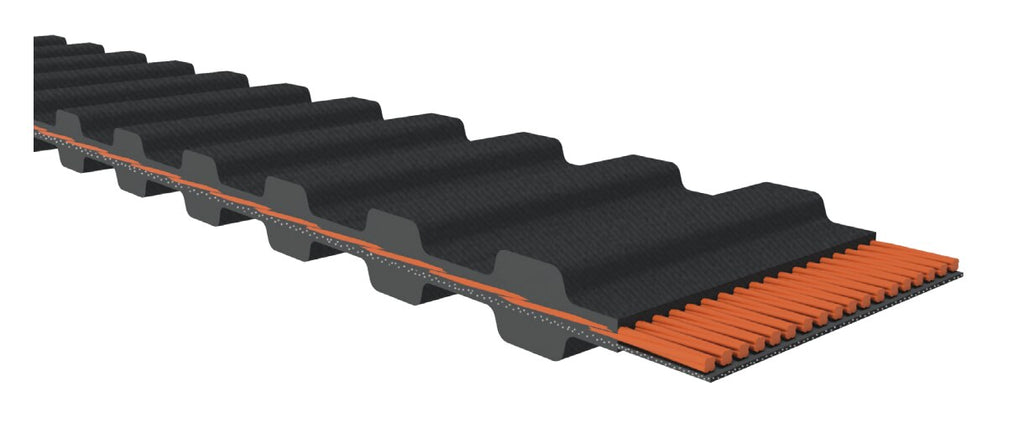

D156XL760 Timing Belt
The D156XL760 is a timing belt from D&D Global's Dual Dura-Premium Torque - Xl Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.
| Specification | Value |
|---|---|
| Part Number | D156XL760 |
| Belt Type | Timing Belt |
| Tooth Profile | DXL HTD (curvilinear) |
| Tooth Pitch | 5.08 mm |
| Number of Teeth | 78 |
| Belt Width | 7.6 in |
| Pitch Length | 15.6 in (Pitch Length) |
| Construction | Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover |
| Weight | 0.434 lb |
Applications
- Conveyors and indexing drives
- Pumps, compressors, and blowers
- Packaging, processing, and automation equipment
- Positive drives where timing must stay locked with no slip
Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.
Cross-Reference
D156XL760 is a standardized industry size, so a D156XL760 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.
All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.
Frequently Asked Questions
What is D156XL760 used for?
D156XL760 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.
What are the dimensions of D156XL760?
D156XL760 has a 5.08 mm tooth pitch, 78 teeth, a belt width of 7.6 in, and a 15.6 in (Pitch Length). The pitch length is the pitch-line circumference.
What does the DXL in D156XL760 mean?
DXL is a HTD (curvilinear) synchronous tooth profile. The belt must match the pulley, so a DXL belt runs only on DXL pulleys.
Does D156XL760 ship from Houston?
Yes. D156XL760 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.
