D1685-5M-25 Timing Belt


Price:
$ 124.88

Description

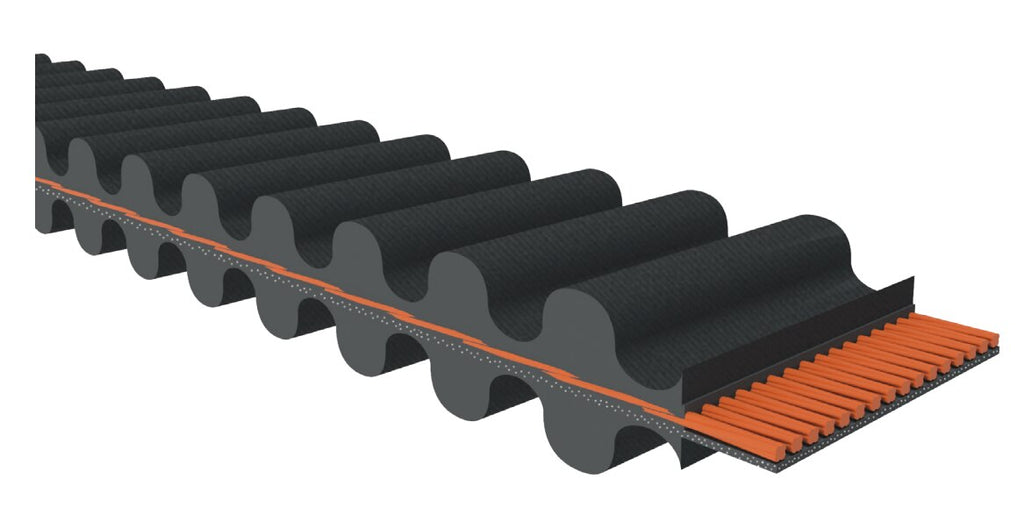

D1685-5M-25 Timing Belt

The D1685-5M-25 is a timing belt from D&D Global's Dual Dura-Sync Torque - 5M Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.

Specification Value
Part Number D1685-5M-25
Belt Type Timing Belt
Tooth Profile D5M HTD (curvilinear)
Tooth Pitch 5 mm
Number of Teeth 337
Belt Width 25 mm
Pitch Length 1685 mm (Pitch Length)
Construction Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover
Weight 0.418 lb
UPC 190859686576

Applications

  • Conveyors and indexing drives
  • Pumps, compressors, and blowers
  • Packaging, processing, and automation equipment
  • Positive drives where timing must stay locked with no slip

Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.

Cross-Reference

D1685-5M-25 is a standardized industry size, so a D1685-5M-25 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.

All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.

Frequently Asked Questions

What is D1685-5M-25 used for?

D1685-5M-25 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.

What are the dimensions of D1685-5M-25?

D1685-5M-25 has a 5 mm tooth pitch, 337 teeth, a belt width of 25 mm, and a 1685 mm (Pitch Length). The pitch length is the pitch-line circumference.

What does the D5M in D1685-5M-25 mean?

D5M is a HTD (curvilinear) synchronous tooth profile. The belt must match the pulley, so a D5M belt runs only on D5M pulleys.

Does D1685-5M-25 ship from Houston?

Yes. D1685-5M-25 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.

Need a quote on D1685-5M-25?

Houston warehouse — same-day shipping on stock items.

Call (888) 203-2358
