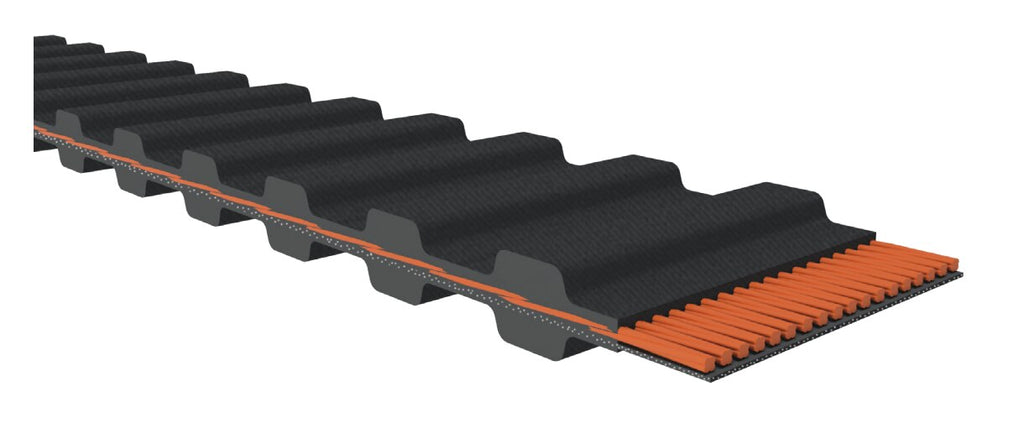

D316XL620 Timing Belt
The D316XL620 is a timing belt from D&D Global's Dual Dura-Premium Torque - Xl Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.
| Specification | Value |
|---|---|
| Part Number | D316XL620 |
| Belt Type | Timing Belt |
| Tooth Profile | DXL HTD (curvilinear) |
| Tooth Pitch | 5.08 mm |
| Number of Teeth | 158 |
| Belt Width | 6.2 in |
| Pitch Length | 31.6 in (Pitch Length) |
| Construction | Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover |
| Weight | 0.717 lb |
Applications
- Conveyors and indexing drives
- Pumps, compressors, and blowers
- Packaging, processing, and automation equipment
- Positive drives where timing must stay locked with no slip
Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.
Cross-Reference
D316XL620 is a standardized industry size, so a D316XL620 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.
All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.
Frequently Asked Questions
What is D316XL620 used for?
D316XL620 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.
What are the dimensions of D316XL620?
D316XL620 has a 5.08 mm tooth pitch, 158 teeth, a belt width of 6.2 in, and a 31.6 in (Pitch Length). The pitch length is the pitch-line circumference.
What does the DXL in D316XL620 mean?
DXL is a HTD (curvilinear) synchronous tooth profile. The belt must match the pulley, so a DXL belt runs only on DXL pulleys.
Does D316XL620 ship from Houston?
Yes. D316XL620 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.
