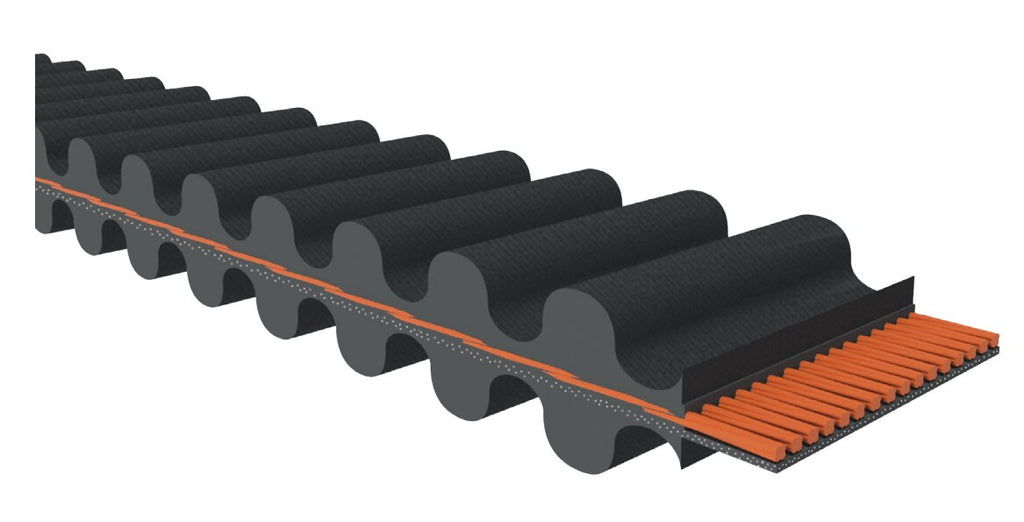

D4004-14M-100 Timing Belt
The D4004-14M-100 is a timing belt from D&D Global's Dual Dura-Sync Torque - 14M Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.
| Specification | Value |
|---|---|
| Part Number | D4004-14M-100 |
| Belt Type | Timing Belt |
| Tooth Profile | D14M HTD (curvilinear) |
| Tooth Pitch | 14 mm |
| Number of Teeth | 286 |
| Belt Width | 100 mm |
| Pitch Length | 4004 mm (Pitch Length) |
| Construction | Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover |
| Weight | 11.204 lb |
Applications
- Conveyors and indexing drives
- Pumps, compressors, and blowers
- Packaging, processing, and automation equipment
- Positive drives where timing must stay locked with no slip
Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.
Cross-Reference
D4004-14M-100 is a standardized industry size, so a D4004-14M-100 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.
All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.
Frequently Asked Questions
What is D4004-14M-100 used for?
D4004-14M-100 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.
What are the dimensions of D4004-14M-100?
D4004-14M-100 has a 14 mm tooth pitch, 286 teeth, a belt width of 100 mm, and a 4004 mm (Pitch Length). The pitch length is the pitch-line circumference.
What does the D14M in D4004-14M-100 mean?
D14M is a HTD (curvilinear) synchronous tooth profile. The belt must match the pulley, so a D14M belt runs only on D14M pulleys.
Does D4004-14M-100 ship from Houston?
Yes. D4004-14M-100 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.
