D480-5M-120 Timing Belt


Price:
$ 170.78

Description

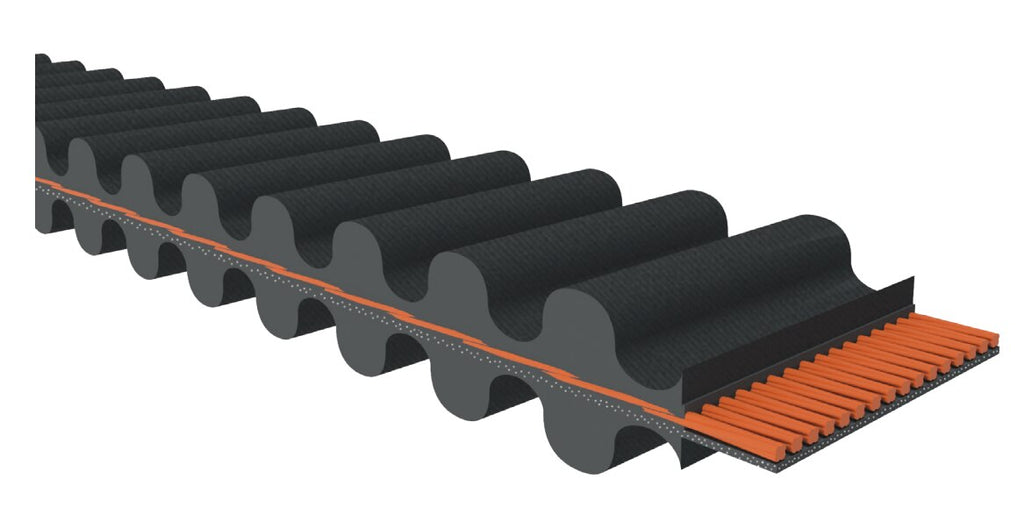

D480-5M-120 Timing Belt

The D480-5M-120 is a timing belt from D&D Global's Dual Dura-Sync Torque - 5M Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.

Specification Value
Part Number D480-5M-120
Belt Type Timing Belt
Tooth Profile D5M HTD (curvilinear)
Tooth Pitch 5 mm
Number of Teeth 96
Belt Width 120 mm
Pitch Length 480 mm (Pitch Length)
Construction Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover
Weight 0.572 lb

Applications

  • Conveyors and indexing drives
  • Pumps, compressors, and blowers
  • Packaging, processing, and automation equipment
  • Positive drives where timing must stay locked with no slip

Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.

Cross-Reference

D480-5M-120 is a standardized industry size, so a D480-5M-120 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.

All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.

Frequently Asked Questions

What is D480-5M-120 used for?

D480-5M-120 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.

What are the dimensions of D480-5M-120?

D480-5M-120 has a 5 mm tooth pitch, 96 teeth, a belt width of 120 mm, and a 480 mm (Pitch Length). The pitch length is the pitch-line circumference.

What does the D5M in D480-5M-120 mean?

D5M is a HTD (curvilinear) synchronous tooth profile. The belt must match the pulley, so a D5M belt runs only on D5M pulleys.

Does D480-5M-120 ship from Houston?

Yes. D480-5M-120 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.

Need a quote on D480-5M-120?

Houston warehouse — same-day shipping on stock items.

Call (888) 203-2358
