D506XL775 Timing Belt


Price:
$ 774.34

Description

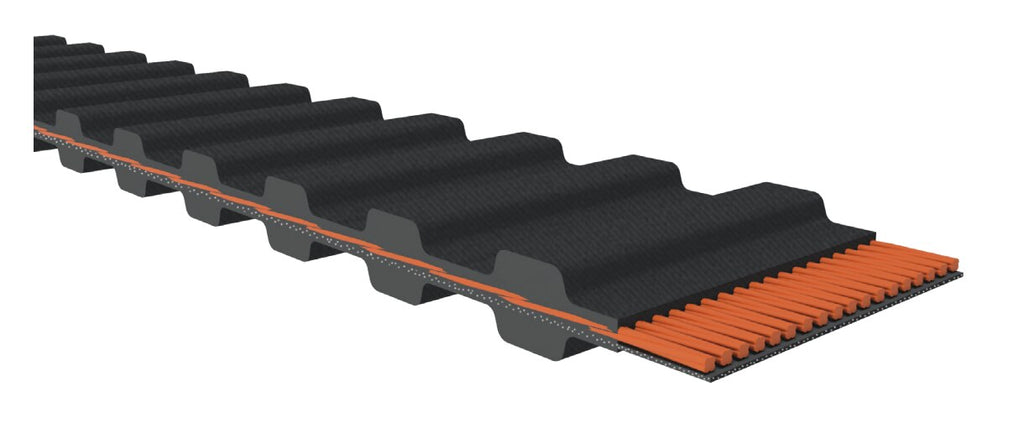

D506XL775 Timing Belt

The D506XL775 is a timing belt from D&D Global's Dual Dura-Premium Torque - Xl Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.

Specification Value
Part Number D506XL775
Belt Type Timing Belt
Tooth Profile DXL HTD (curvilinear)
Tooth Pitch 5.08 mm
Number of Teeth 253
Belt Width 7.75 in
Pitch Length 50.6 in (Pitch Length)
Construction Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover
Weight 1.435 lb

Applications

  • Conveyors and indexing drives
  • Pumps, compressors, and blowers
  • Packaging, processing, and automation equipment
  • Positive drives where timing must stay locked with no slip

Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.

Cross-Reference

D506XL775 is a standardized industry size, so a D506XL775 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.

All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.

Frequently Asked Questions

What is D506XL775 used for?

D506XL775 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.

What are the dimensions of D506XL775?

D506XL775 has a 5.08 mm tooth pitch, 253 teeth, a belt width of 7.75 in, and a 50.6 in (Pitch Length). The pitch length is the pitch-line circumference.

What does the DXL in D506XL775 mean?

DXL is a HTD (curvilinear) synchronous tooth profile. The belt must match the pulley, so a DXL belt runs only on DXL pulleys.

Does D506XL775 ship from Houston?

Yes. D506XL775 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.

Need a quote on D506XL775?

Houston warehouse — same-day shipping on stock items.

Call (888) 203-2358
