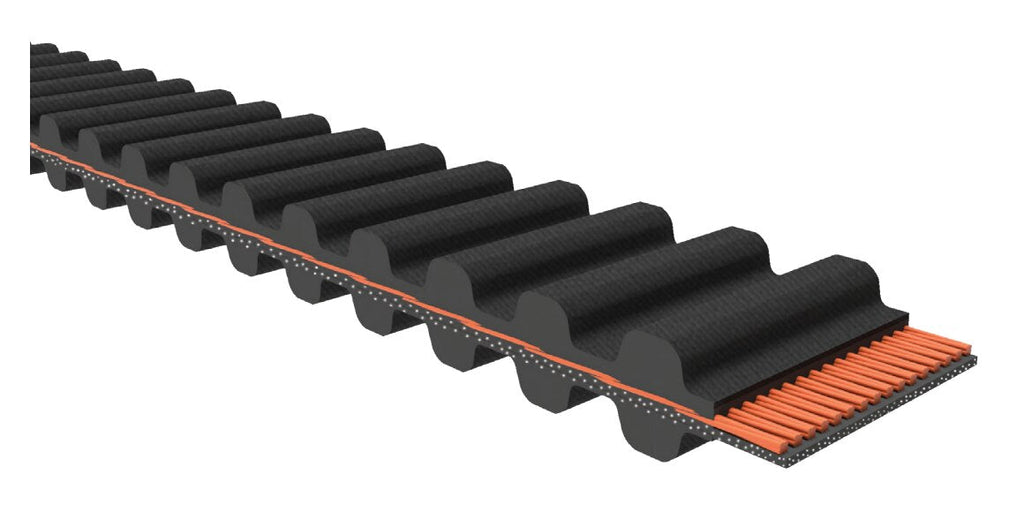

D90-S5M-525 Timing Belt
The D90-S5M-525 is a timing belt from D&D Global's Dual Dura-Sure Torque - S5M Series line. It transmits power positively with no slip, holding timing between shafts on synchronous drives.
| Specification | Value |
|---|---|
| Part Number | D90-S5M-525 |
| Belt Type | Timing Belt |
| Tooth Profile | DS5M HTD (curvilinear) |
| Tooth Pitch | 5 mm |
| Number of Teeth | 105 |
| Belt Width | 9 mm |
| Pitch Length | 525 mm (Pitch Length) |
| Construction | Chloroprene (Neoprene), Fiberglass cord, fabric tooth cover |
| Weight | 0.045 lb |
| UPC | 190859673309 |
Applications
- Conveyors and indexing drives
- Pumps, compressors, and blowers
- Packaging, processing, and automation equipment
- Positive drives where timing must stay locked with no slip
Browse the full range in Timing Belts, or use our belt identification guide to match an existing part.
Cross-Reference
D90-S5M-525 is a standardized industry size, so a D90-S5M-525 from any major manufacturer shares the same dimensions and runs on the same pulleys/sheaves. For OEM or proprietary numbers, confirm the equivalent before ordering — call (888) 203-2358.
All manufacturer names and part numbers are used for reference and identification purposes only. Texas Belting & Supply is not affiliated with, sponsored by, or endorsed by any other manufacturer.
Frequently Asked Questions
What is D90-S5M-525 used for?
D90-S5M-525 is a timing belt used on positive, no-slip drives such as conveyors, pumps, packaging machinery, robotics, and machine tools. Synchronous belts hold timing between shafts, so they suit applications where slip is unacceptable.
What are the dimensions of D90-S5M-525?
D90-S5M-525 has a 5 mm tooth pitch, 105 teeth, a belt width of 9 mm, and a 525 mm (Pitch Length). The pitch length is the pitch-line circumference.
What does the DS5M in D90-S5M-525 mean?
DS5M is a HTD (curvilinear) synchronous tooth profile. The belt must match the pulley, so a DS5M belt runs only on DS5M pulleys.
Does D90-S5M-525 ship from Houston?
Yes. D90-S5M-525 ships from our Houston, Texas warehouse, with same-day shipping on in-stock items. Call (888) 203-2358 to confirm stock and request a quote.
