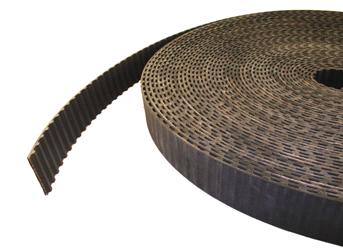

Megadyne DL14M-85 Open-End Timing Belt, 14M
The Megadyne DL14M-85 is an open-ended 14M polyurethane synchronous belt, supplied by length and cut to size for linear positioning, conveying, and automation drives. It replaces the equivalent Jason Industrial DL14M-85.
| Specification | Value |
|---|---|
| Part Number | DL14M-85 |
| Profile / Pitch | 14M |
| Construction | Rubber |
| Tooth Profile | Curvilinear (HTD/RPP) |
| Width | 85mm |
| Thickness | 10.0mm |
| Temperature Range | -13°F to 176°F |
Applications
- Linear positioning and actuation
- Conveying and indexing
- Cut-to-length synchronous drives
Cross-References
The 14M cross section and length are industry-standard, so the DL14M-85 interchanges with Gates DL14M-85, Dayco DL14M-85, Continental DL14M-85, and Jason Industrial DL14M-85. Browse the timing belts collection.
Compatible Components
Matched Timing Pulleys
- 28-14M-FS Timing Pulley Flange
- 28-14M-FSS Timing Pulley Flange
- 28-14M115-6FS13 Powerhouse® HTD Timing Pulley, 28 Teeth, 14M Pitch
- 28-14M85-6FS13 Powerhouse® HTD Timing Pulley, 28 Teeth, 14M Pitch
Shop all 314 matched options ›
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
Frequently Asked Questions
What is the Megadyne DL14M-85 used for?
The DL14M-85 is used for linear positioning and actuation, such as conveying and indexing and cut-to-length synchronous drives.
What are the dimensions of DL14M-85?
The DL14M-85 has a 85mm width in the 14M profile.
Is DL14M-85 interchangeable with Gates DL14M-85?
Yes. The 14M section and length are industry-standard, so the Megadyne DL14M-85 interchanges with Gates, Dayco, Continental, and Jason Industrial belts of the same designation.
What is the temperature rating of DL14M-85?
The DL14M-85 is rated for continuous operation from -13°F to 176°F.
Does DL14M-85 ship from Houston?
Yes. The DL14M-85 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.
