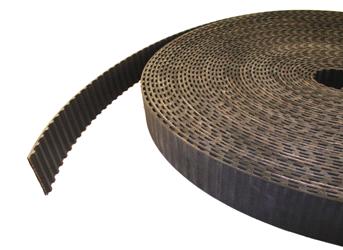

Megadyne DL8M-50 Open-End Timing Belt, 8M
The Megadyne DL8M-50 is an open-ended 8M polyurethane synchronous belt, supplied by length and cut to size for linear positioning, conveying, and automation drives. It replaces the equivalent Jason Industrial DL8M-50.
| Specification | Value |
|---|---|
| Part Number | DL8M-50 |
| Profile / Pitch | 8M |
| Construction | Rubber |
| Tooth Profile | Curvilinear (HTD/RPP) |
| Width | 50mm |
| Thickness | 5.6mm |
| Temperature Range | -13°F to 176°F |
Applications
- Linear positioning and actuation
- Conveying and indexing
- Cut-to-length synchronous drives
Cross-References
The 8M cross section and length are industry-standard, so the DL8M-50 interchanges with Gates DL8M-50, Dayco DL8M-50, Continental DL8M-50, and Jason Industrial DL8M-50. Browse the timing belts collection.
Compatible Components
Matched Timing Pulleys
- 18-8M-FS Timing Pulley Flange, 2.06 in OD
- 18-8M-FSS Timing Pulley Flange
- 20-8M-FA Timing Pulley Flange
- 20-8M-PS10A Timing Pulley Bar Stock, 2 Teeth, 8M Pitch
Shop all 294 matched options ›
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
Frequently Asked Questions
What is the Megadyne DL8M-50 used for?
The DL8M-50 is used for linear positioning and actuation, such as conveying and indexing and cut-to-length synchronous drives.
What are the dimensions of DL8M-50?
The DL8M-50 has a 50mm width in the 8M profile.
Is DL8M-50 interchangeable with Gates DL8M-50?
Yes. The 8M section and length are industry-standard, so the Megadyne DL8M-50 interchanges with Gates, Dayco, Continental, and Jason Industrial belts of the same designation.
What is the temperature rating of DL8M-50?
The DL8M-50 is rated for continuous operation from -13°F to 176°F.
Does DL8M-50 ship from Houston?
Yes. The DL8M-50 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.
