Durus 100142 SBV - 1" × 1.499" × 0.25" Viton Oil Seal


Price:
$ 11.29

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 1" shaft diameter with different OD/width combinations:

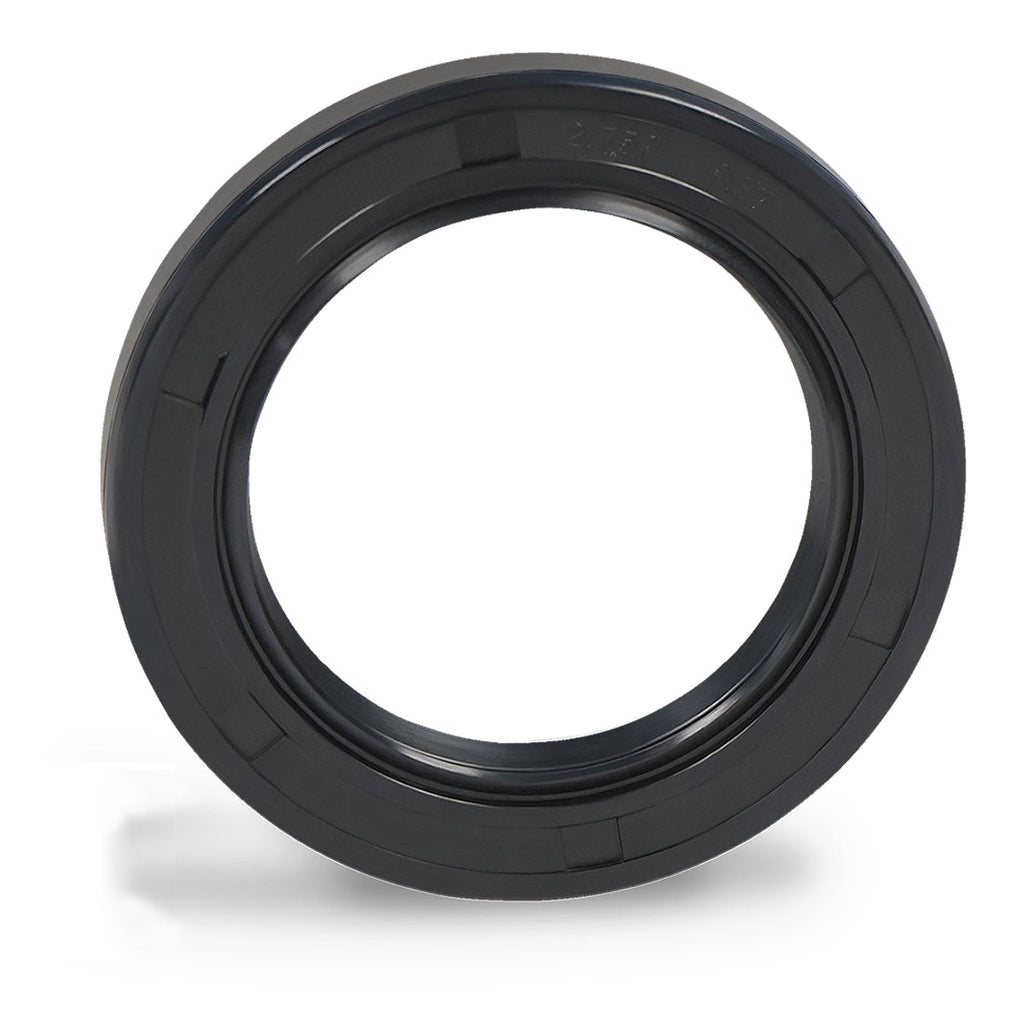

The Durus 100142 SBV is a 1" × 1.499" × 0.25" rotary shaft oil seal (Single + Auxiliary (Metal Case)) with Viton (FKM) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 100142 SBV
Brand Durus
Category Inch Oil Seal
Seal Type SB2 - Single + Auxiliary (Metal Case)
Inner Diameter (Shaft) 1"
Outer Diameter (Bore) 1.499"
Width 0.25"
Material Viton (FKM)
Weight 0.022 lbs

Application

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -40°F to 400°F. Excellent for fuels, synthetic oils, hydraulic fluids, and aggressive chemicals.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
