Durus 110X130X8 SC - 110mm × 130mm × 8mm Single Lip Oil Seal (Metric)


Price:
$ 18.65

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 110mm shaft diameter with different OD/width combinations:

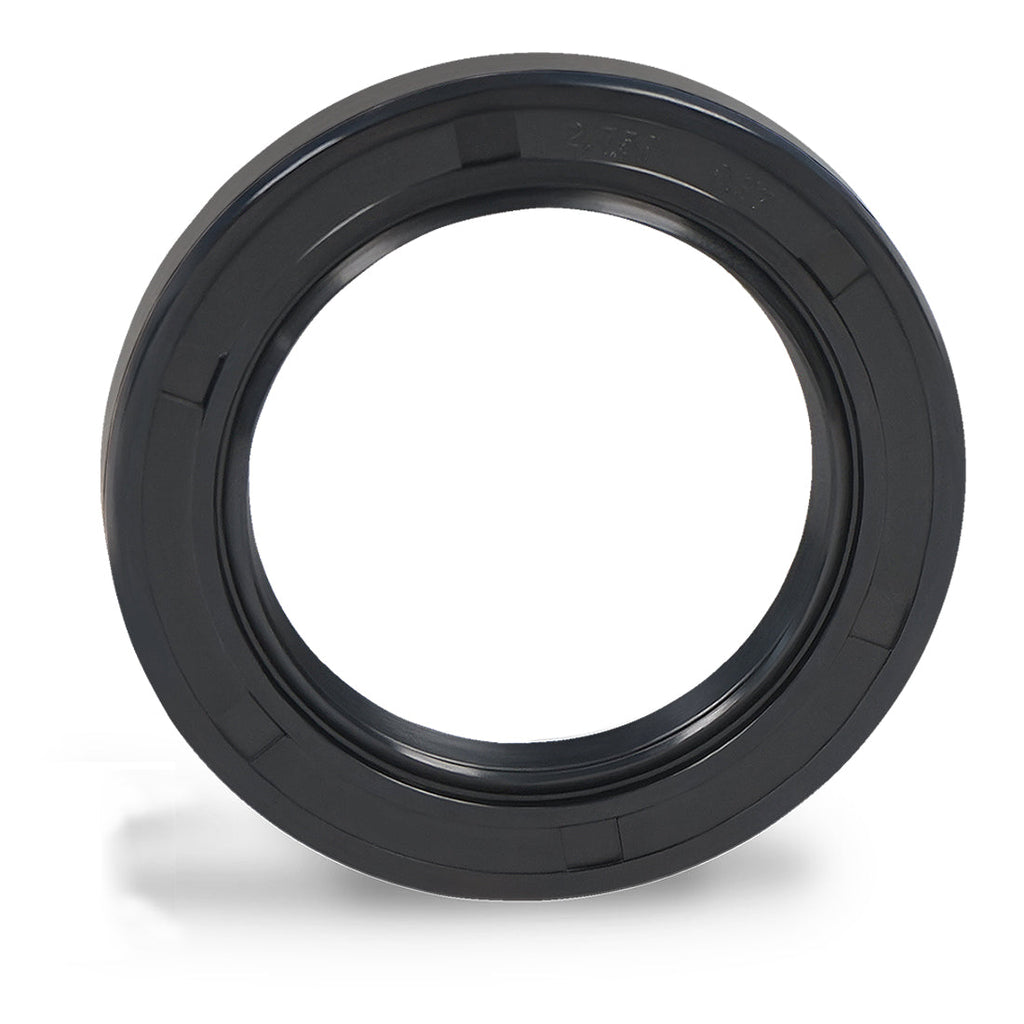

The Durus 110X130X8 SC is a 110mm × 130mm × 8mm rotary shaft oil seal (Single Lip + Dust Lip (Metal Case)) with NBR (Buna-N) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 110X130X8 SC
Brand Durus
Category Metric Oil Seal

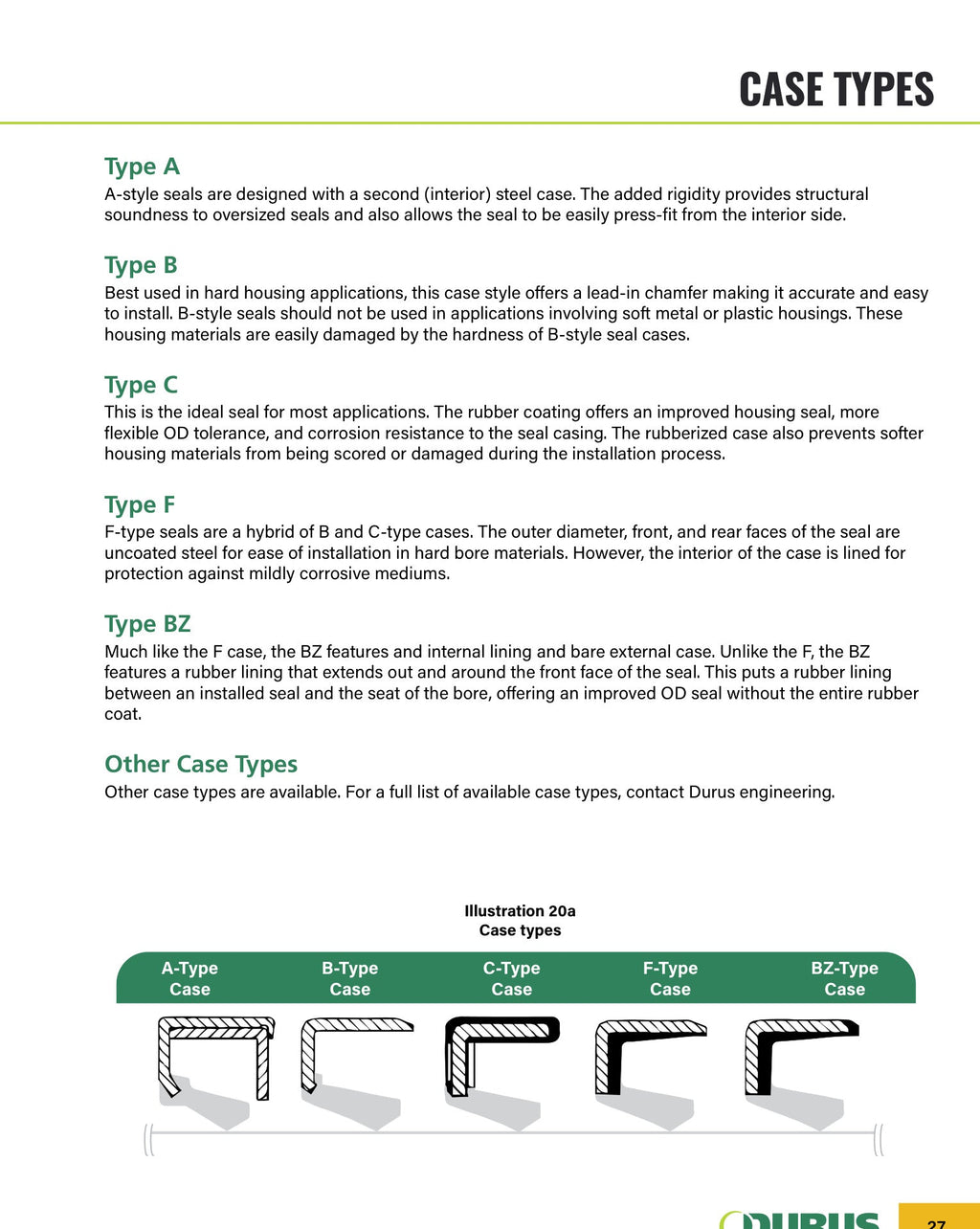

Seal Type SC - Single Lip + Dust Lip (Metal Case)
Inner Diameter (Shaft) 110mm
Outer Diameter (Bore) 130mm
Width 8mm
Material NBR (Buna-N)

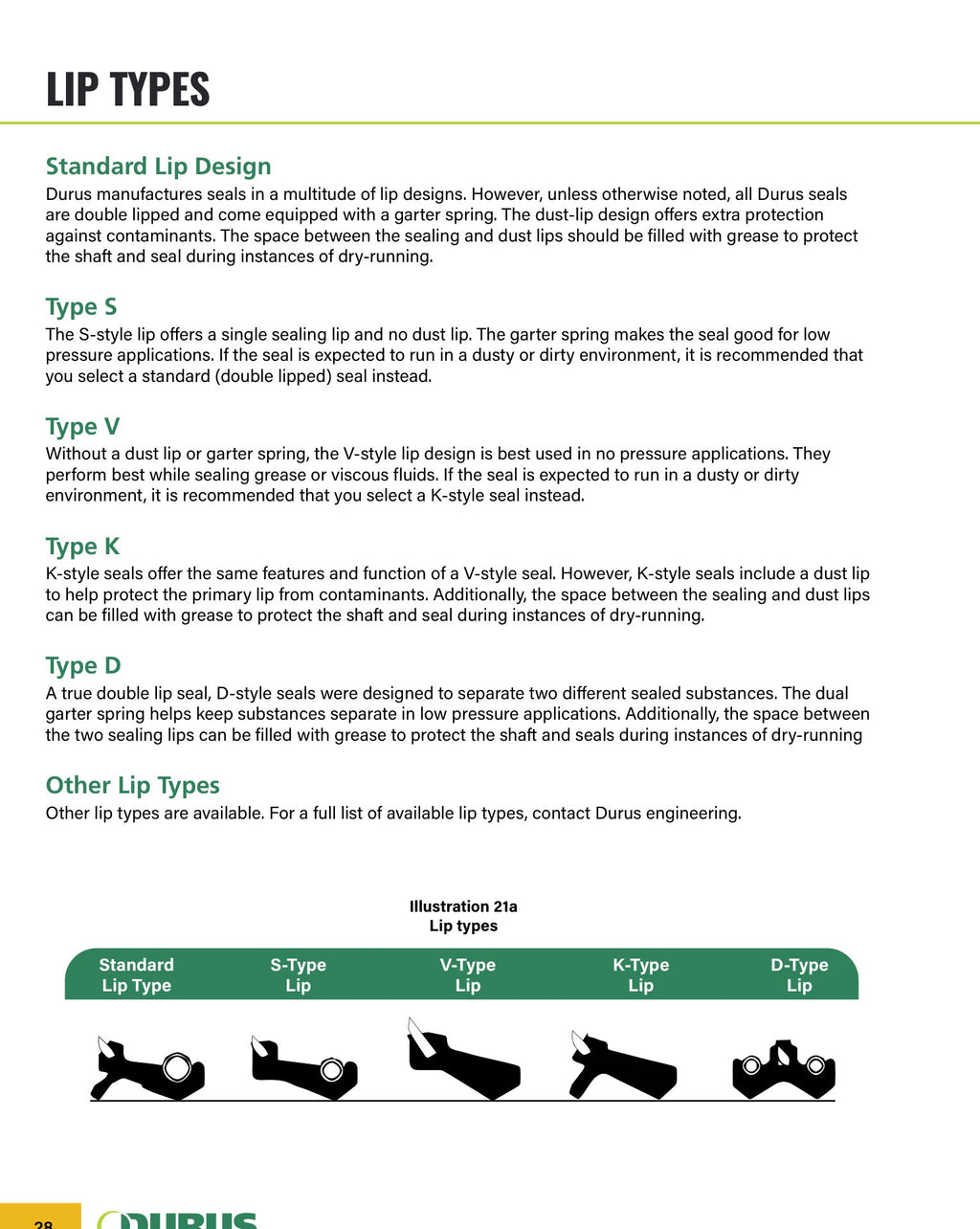

Lip Configuration Single Lip
Weight 0.166 lbs

Application

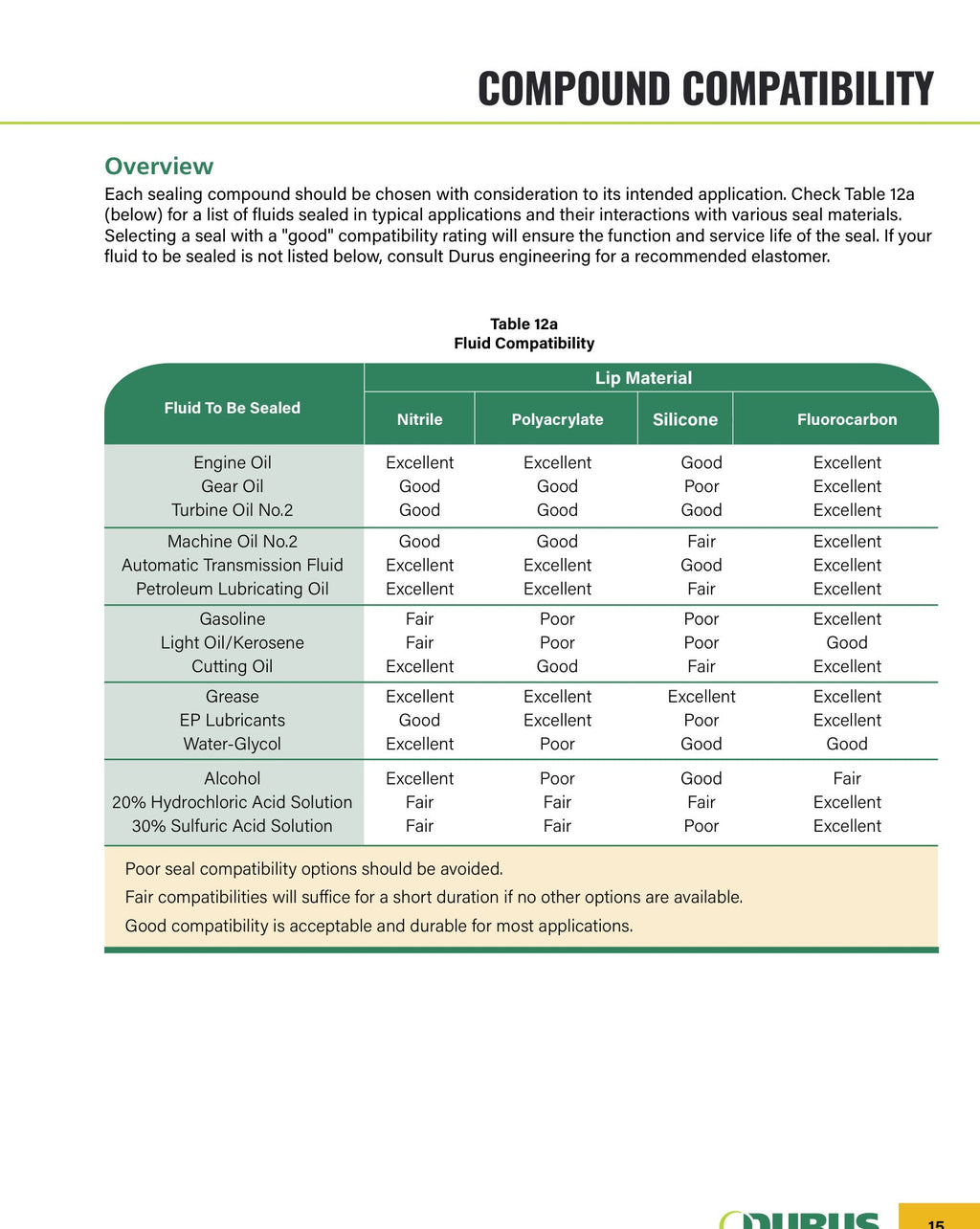

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -40°F to 250°F. Compatible with mineral oils, lubricating greases, hydraulic fluids, and most industrial fluids.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
