Durus 12X23X6 VCY - 12mm × 23mm × 6mm Single Lip Viton Oil Seal (Metric)


Price:
$ 3.48

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 12mm shaft diameter with different OD/width combinations:

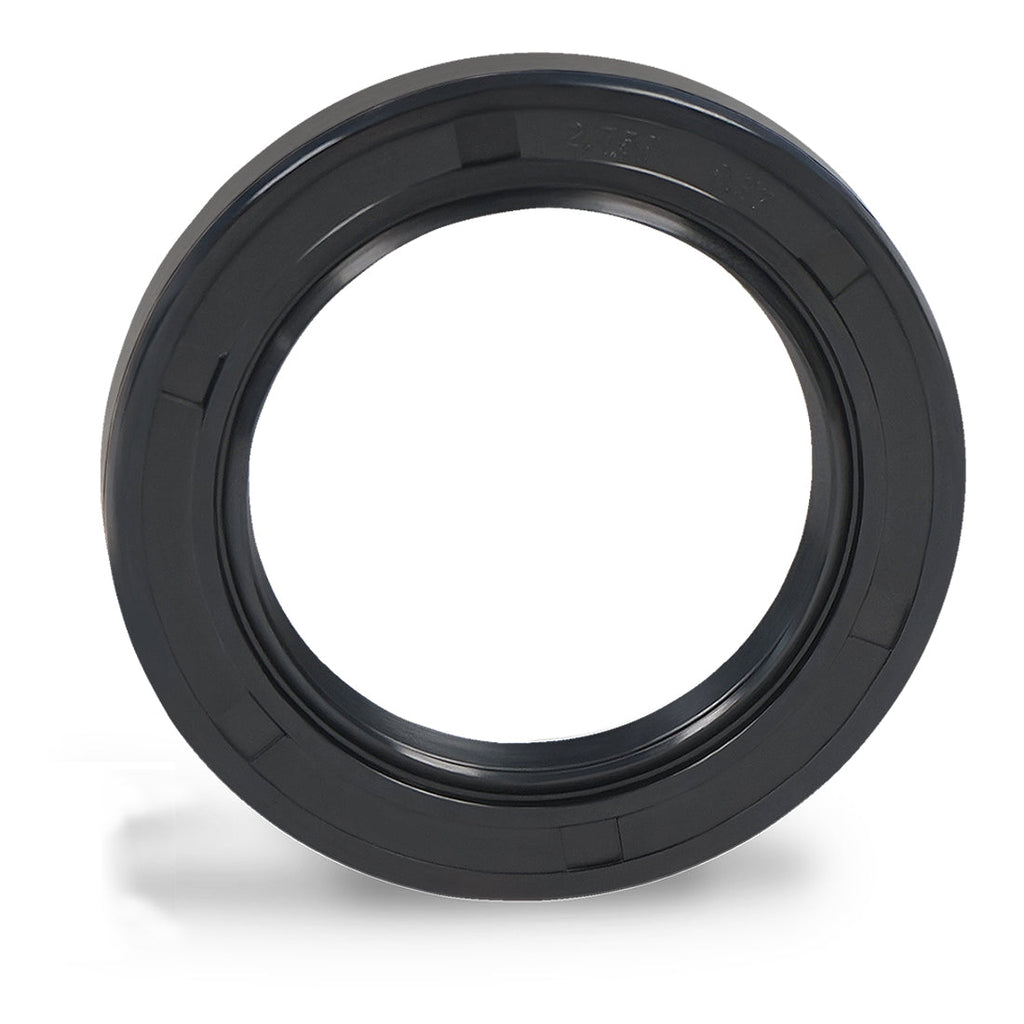

The Durus 12X23X6 VCY is a 12mm × 23mm × 6mm rotary shaft oil seal (Type VCY) with Viton (FKM) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 12X23X6 VCY
Brand Durus
Category Metric Oil Seal
Seal Type VCY - Type VCY
Inner Diameter (Shaft) 12mm
Outer Diameter (Bore) 23mm
Width 6mm
Material Viton (FKM)
Lip Configuration Single Lip
Weight 0.02 lbs

Application

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -40°F to 400°F. Excellent for fuels, synthetic oils, hydraulic fluids, and aggressive chemicals.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
