Durus 190X225X16 B - 190mm × 225mm × 16mm Double Lip Oil Seal (Metric)


Price:
$ 78.80

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 190mm shaft diameter with different OD/width combinations:

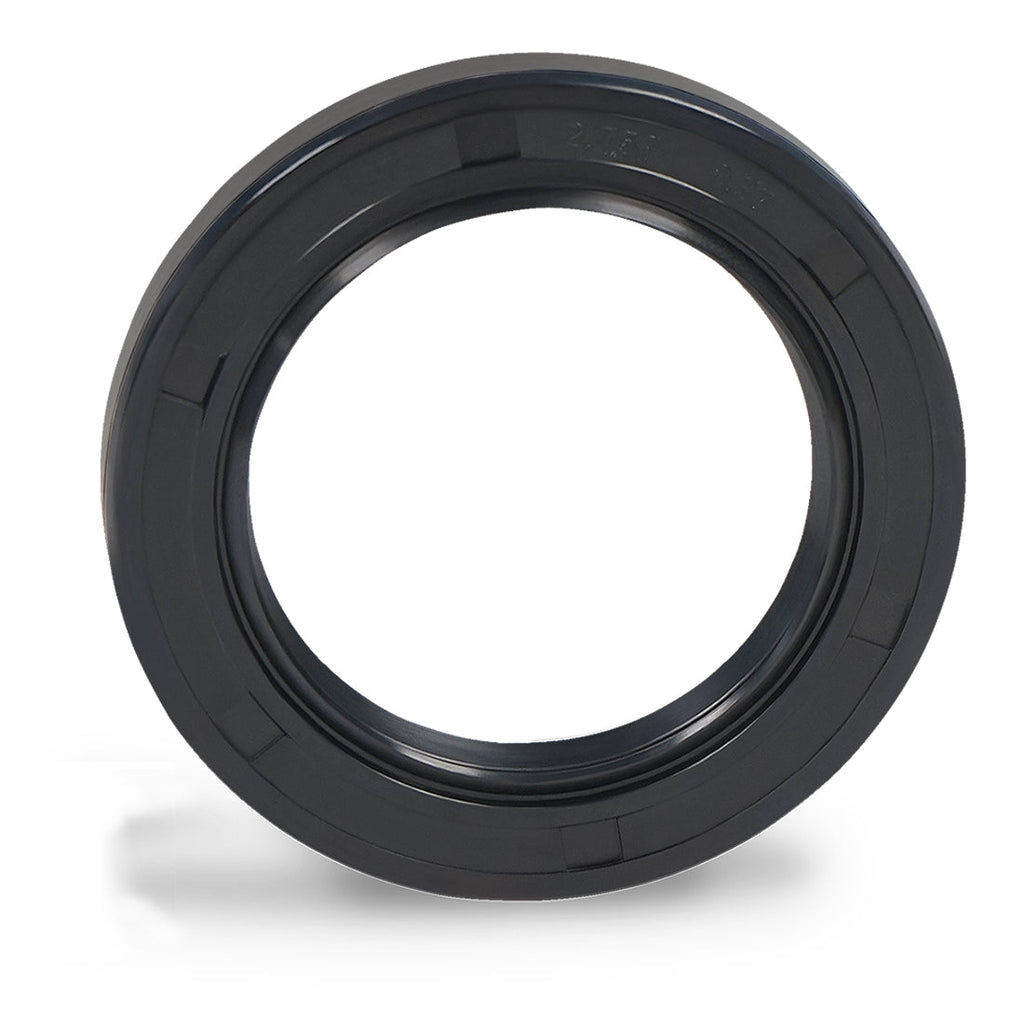

The Durus 190X225X16 B is a 190mm × 225mm × 16mm rotary shaft oil seal (Single Lip) with NBR (Buna-N) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 190X225X16 B
Brand Durus
Category Metric Oil Seal

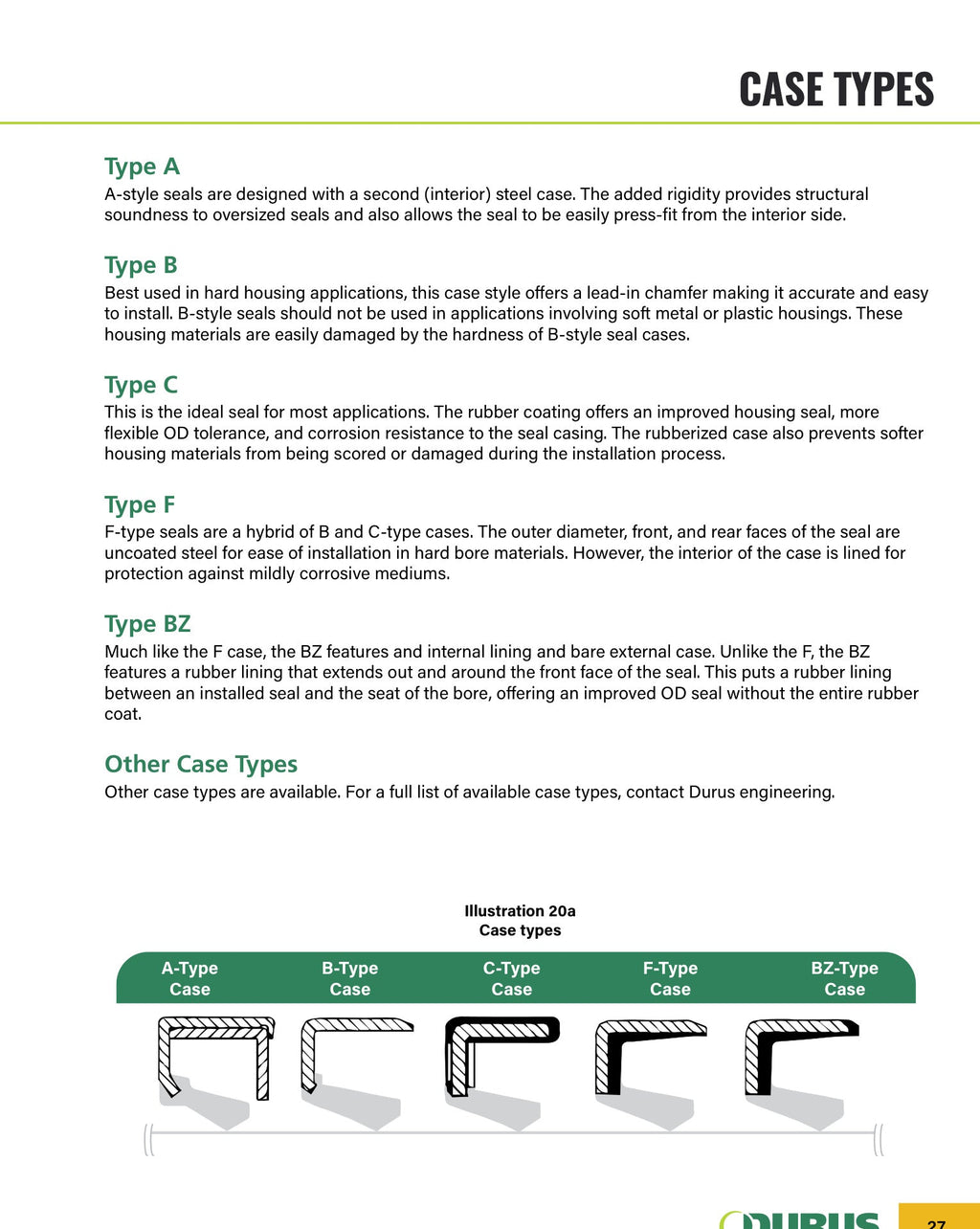

Seal Type B - Single Lip
Inner Diameter (Shaft) 190mm
Outer Diameter (Bore) 225mm
Width 16mm
Material NBR (Buna-N)

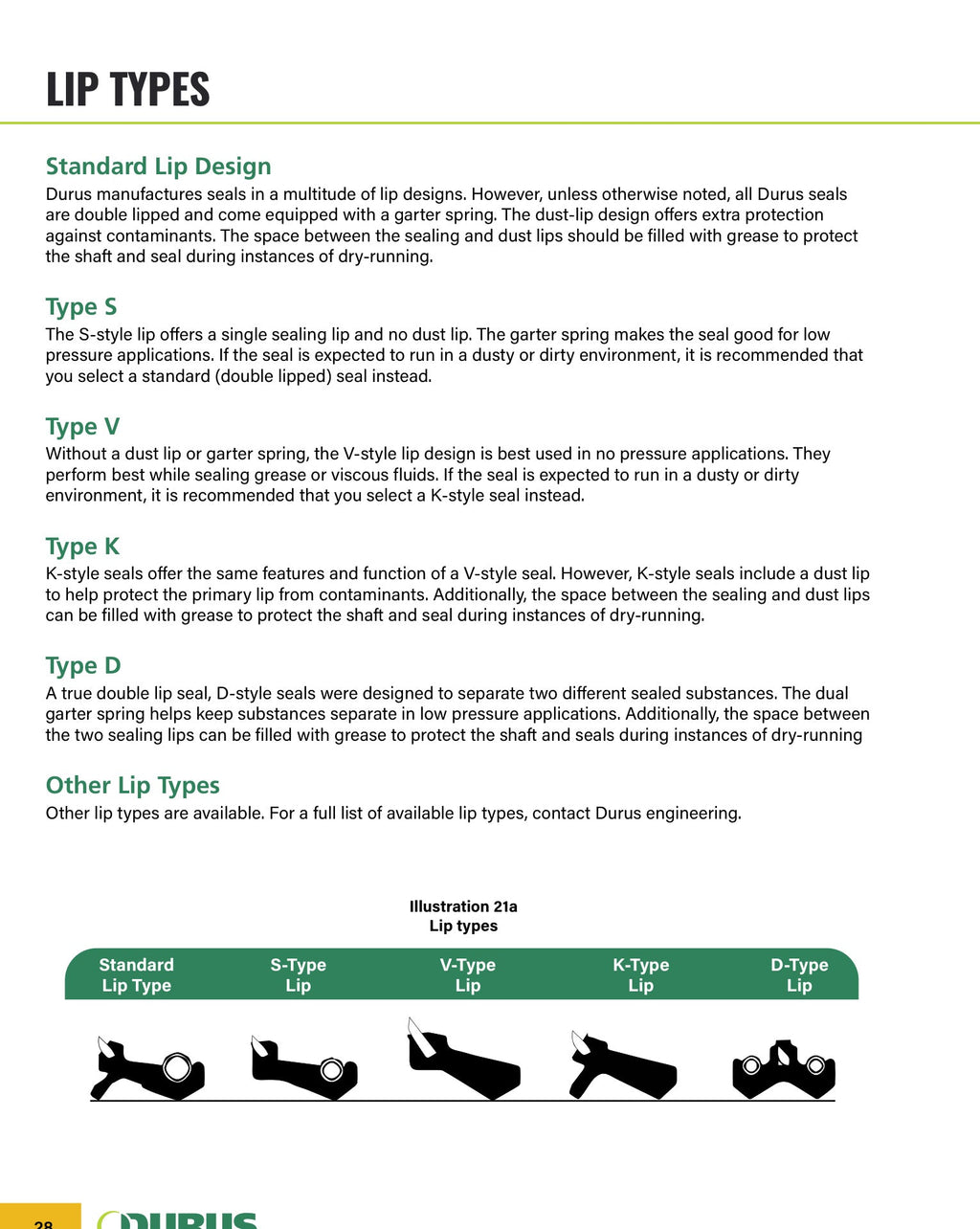

Lip Configuration Double Lip
Weight 1.006 lbs

Application

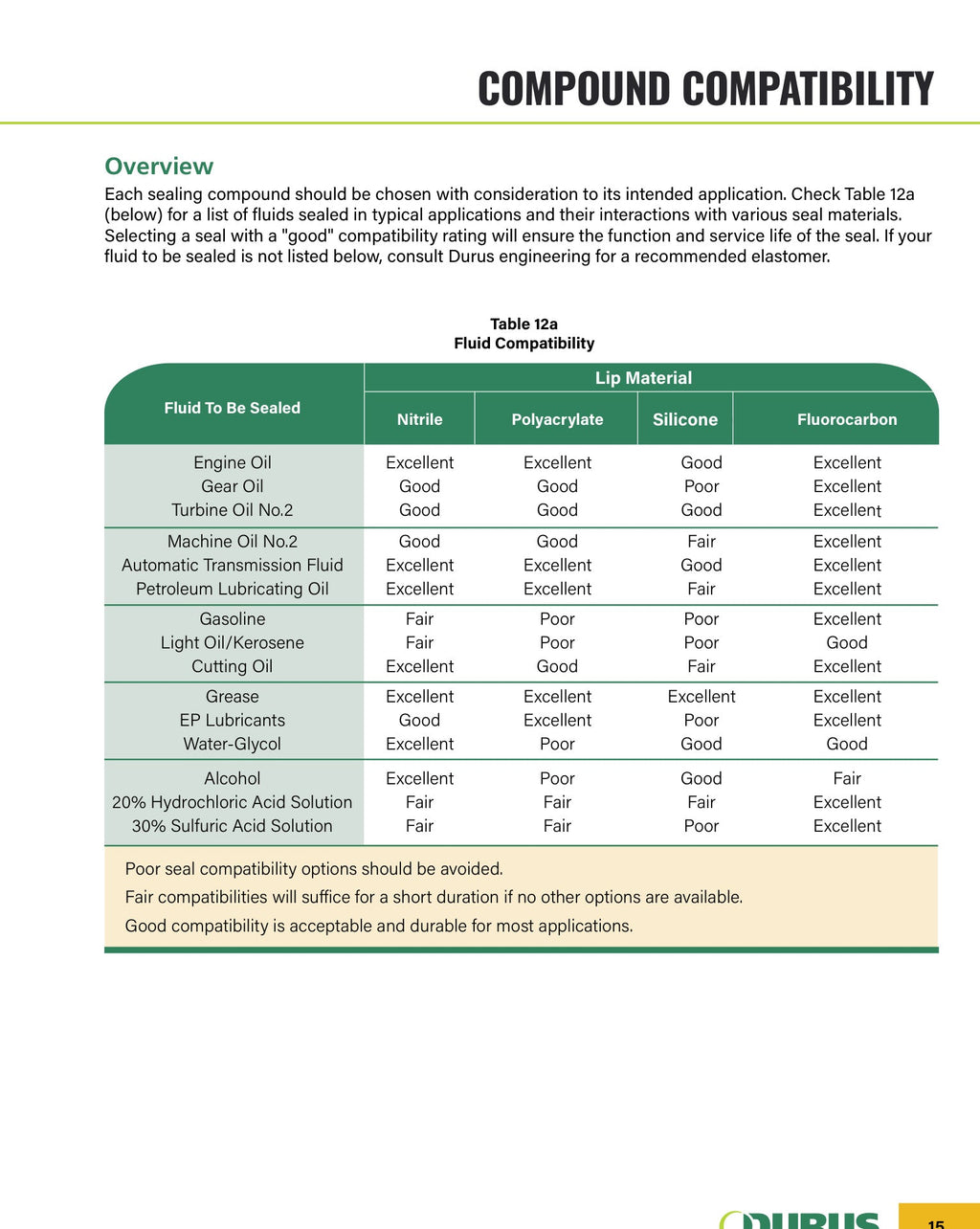

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -40°F to 250°F. Compatible with mineral oils, lubricating greases, hydraulic fluids, and most industrial fluids.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
