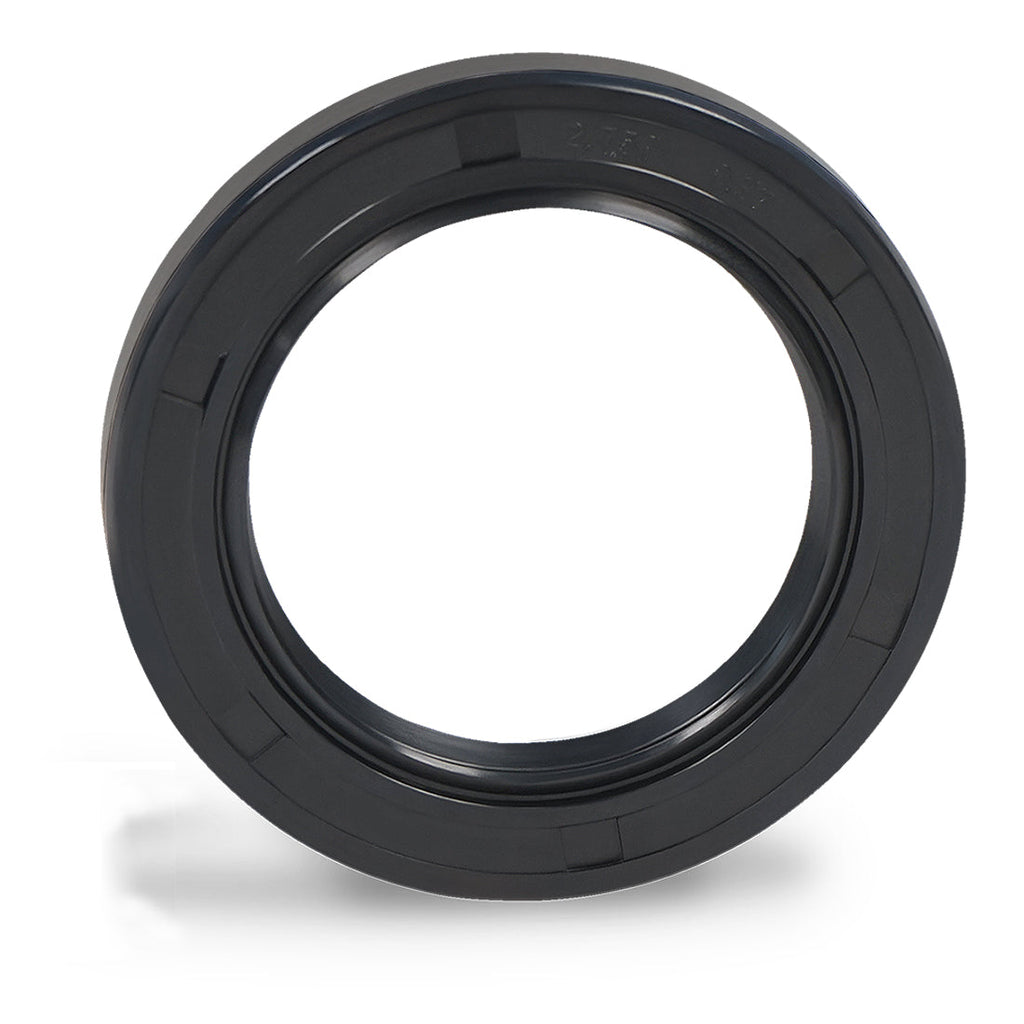

Durus 210X250X16 SC - 210mm × 250mm × 16mm Single Lip Oil Seal (Metric)


Price:
$ 79.60

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 210mm shaft diameter with different OD/width combinations:

The Durus 210X250X16 SC is a 210mm × 250mm × 16mm rotary shaft oil seal (Single Lip + Dust Lip (Metal Case)) with NBR (Buna-N) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 210X250X16 SC
Brand Durus
Category Metric Oil Seal
Seal Type SC - Single Lip + Dust Lip (Metal Case)
Inner Diameter (Shaft) 210mm
Outer Diameter (Bore) 250mm
Width 16mm
Material NBR (Buna-N)
Lip Configuration Single Lip
Weight 1.274 lbs

Application

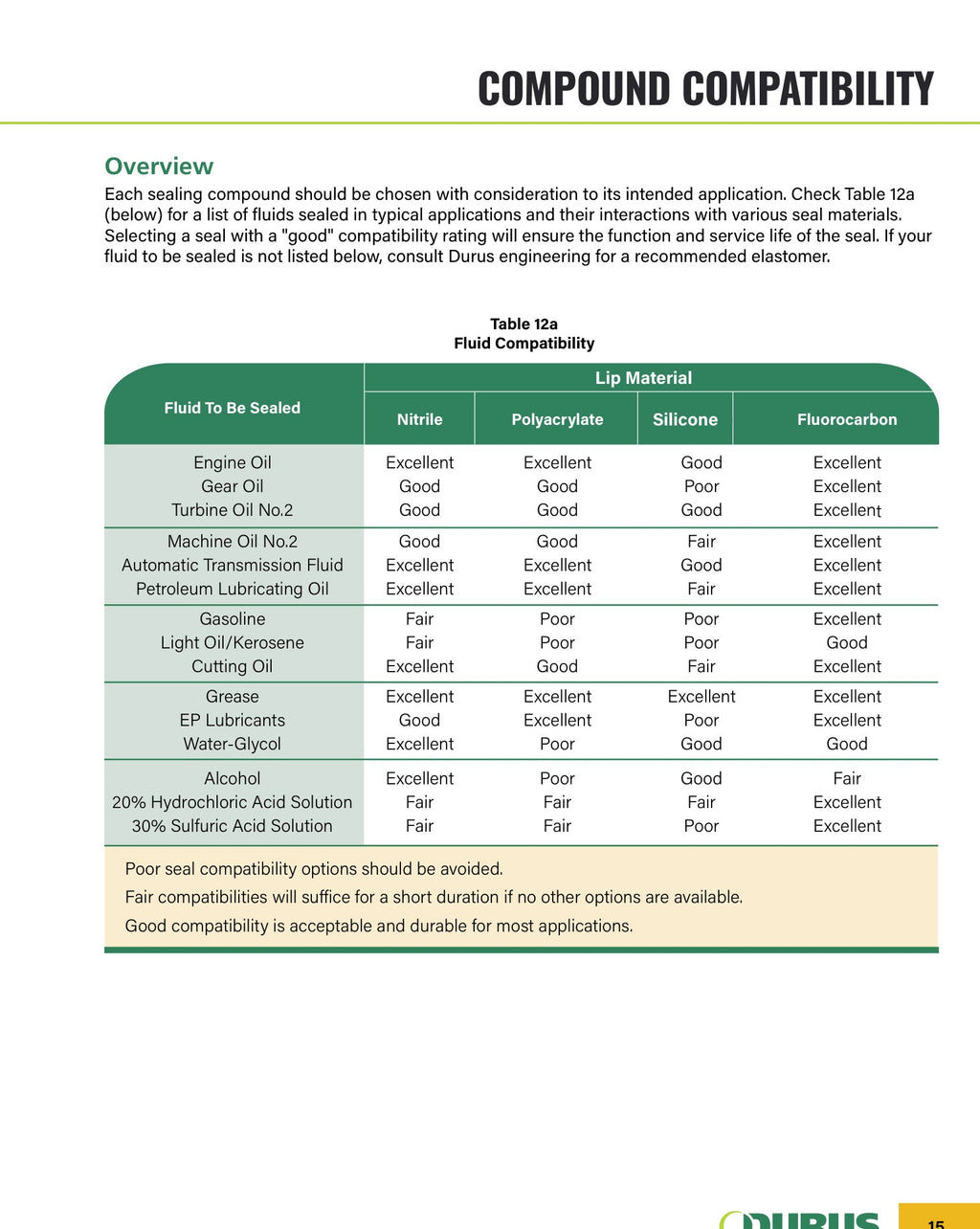

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -40°F to 250°F. Compatible with mineral oils, lubricating greases, hydraulic fluids, and most industrial fluids.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
