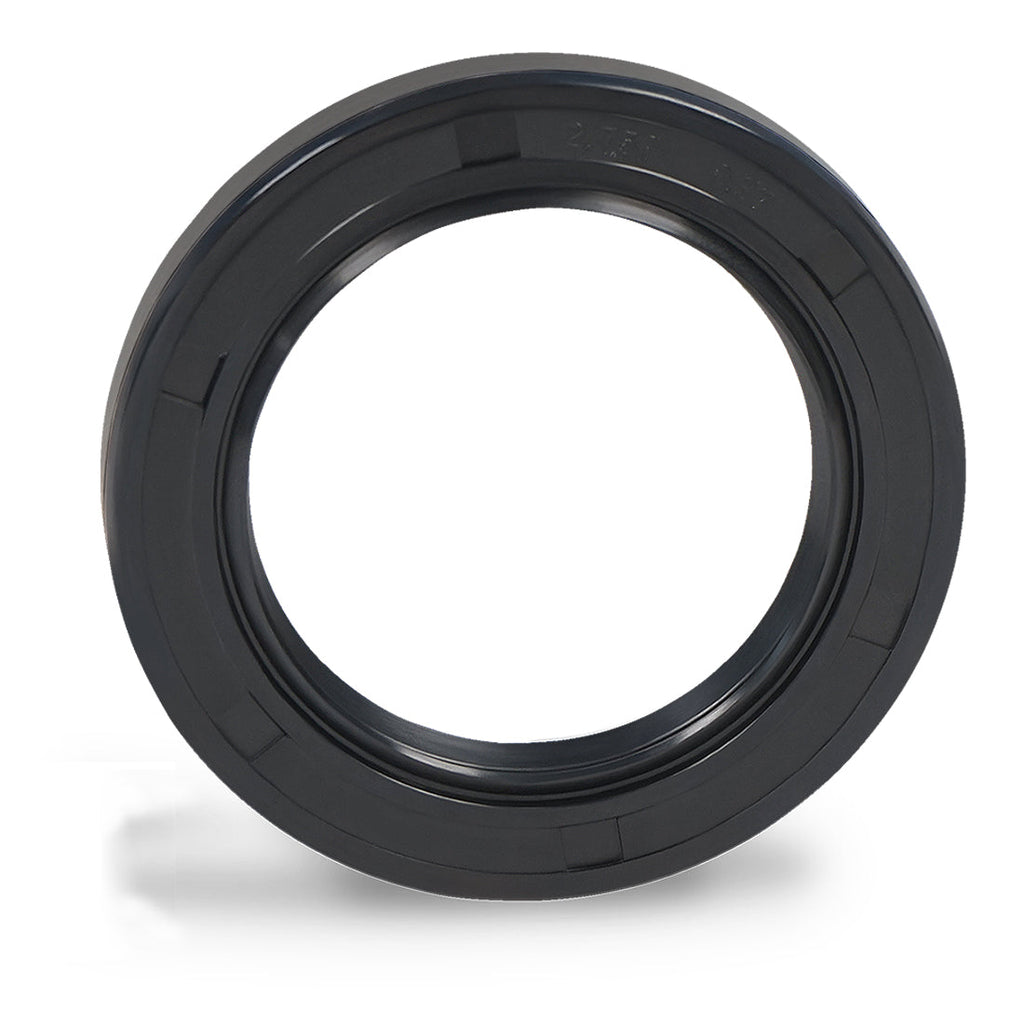

Durus 265X294X12 CV - 265mm × 294mm × 12mm Double Lip Viton Oil Seal (Metric)


Price:
$ 464.11

Description

The Durus 265X294X12 CV is a 265mm × 294mm × 12mm rotary shaft oil seal (Viton Single Lip + Dust Lip) with Viton (FKM) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 265X294X12 CV
Brand Durus
Category Metric Oil Seal
Seal Type CV - Viton Single Lip + Dust Lip
Inner Diameter (Shaft) 265mm
Outer Diameter (Bore) 294mm
Width 12mm
Material Viton (FKM)
Lip Configuration Double Lip
Weight 0.842 lbs

Application

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -40°F to 400°F. Excellent for fuels, synthetic oils, hydraulic fluids, and aggressive chemicals.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
