Durus 33X44X7 SBZ - 33mm × 44mm × 7mm Single Lip Oil Seal (Metric)


Price:
$ 5.39

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 33mm shaft diameter with different OD/width combinations:

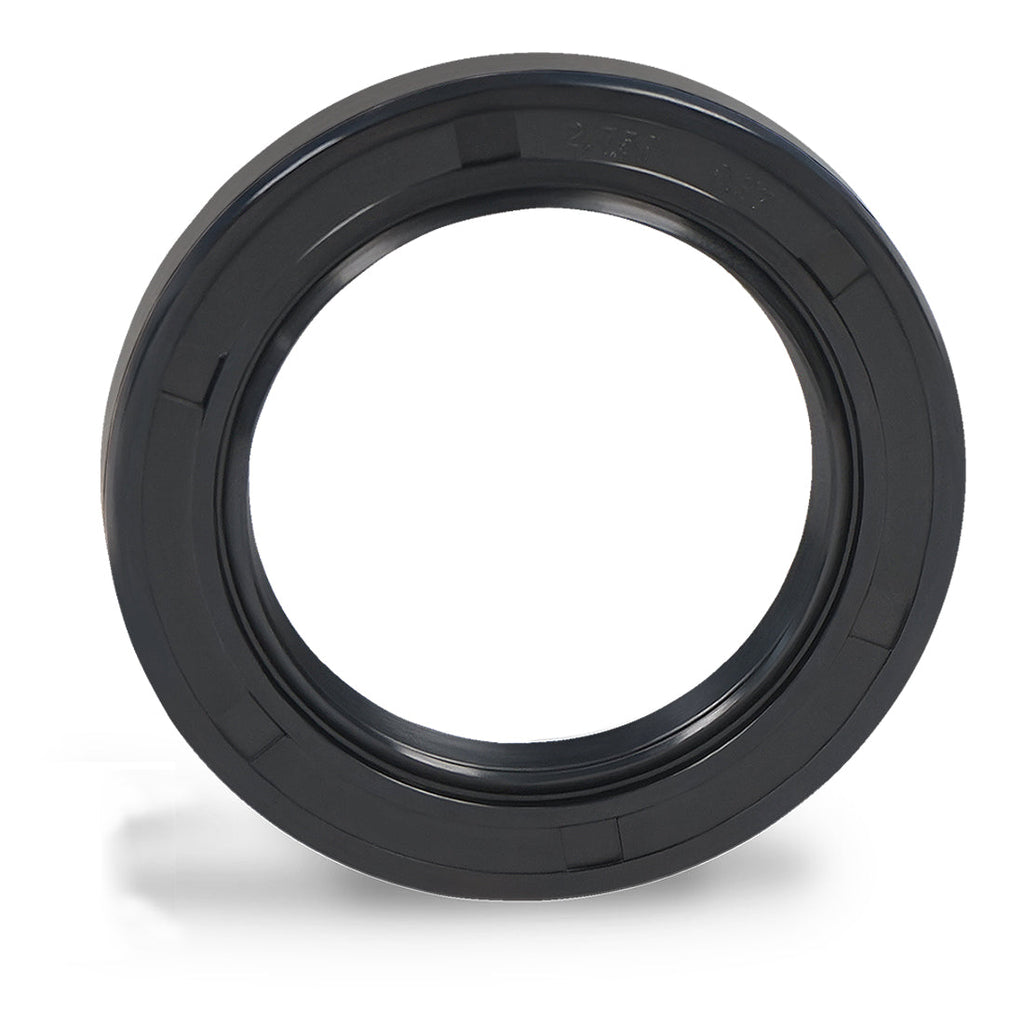

The Durus 33X44X7 SBZ is a 33mm × 44mm × 7mm rotary shaft oil seal (Type SBZ) with NBR (Buna-N) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 33X44X7 SBZ
Brand Durus
Category Metric Oil Seal

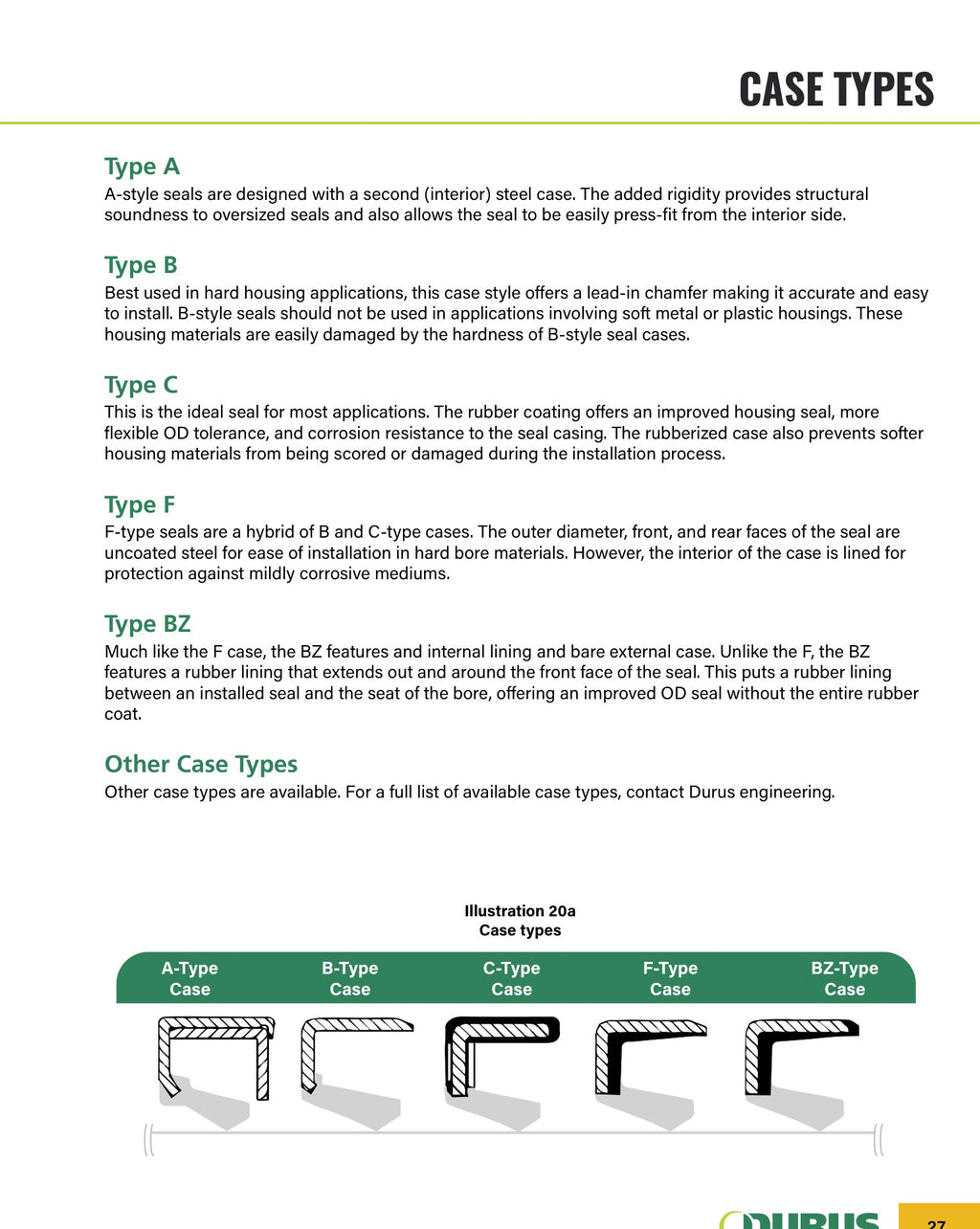

Seal Type SBZ - Type SBZ
Inner Diameter (Shaft) 33mm
Outer Diameter (Bore) 44mm
Width 7mm
Material NBR (Buna-N)
Lip Configuration Single Lip
Weight 0.026 lbs

Application

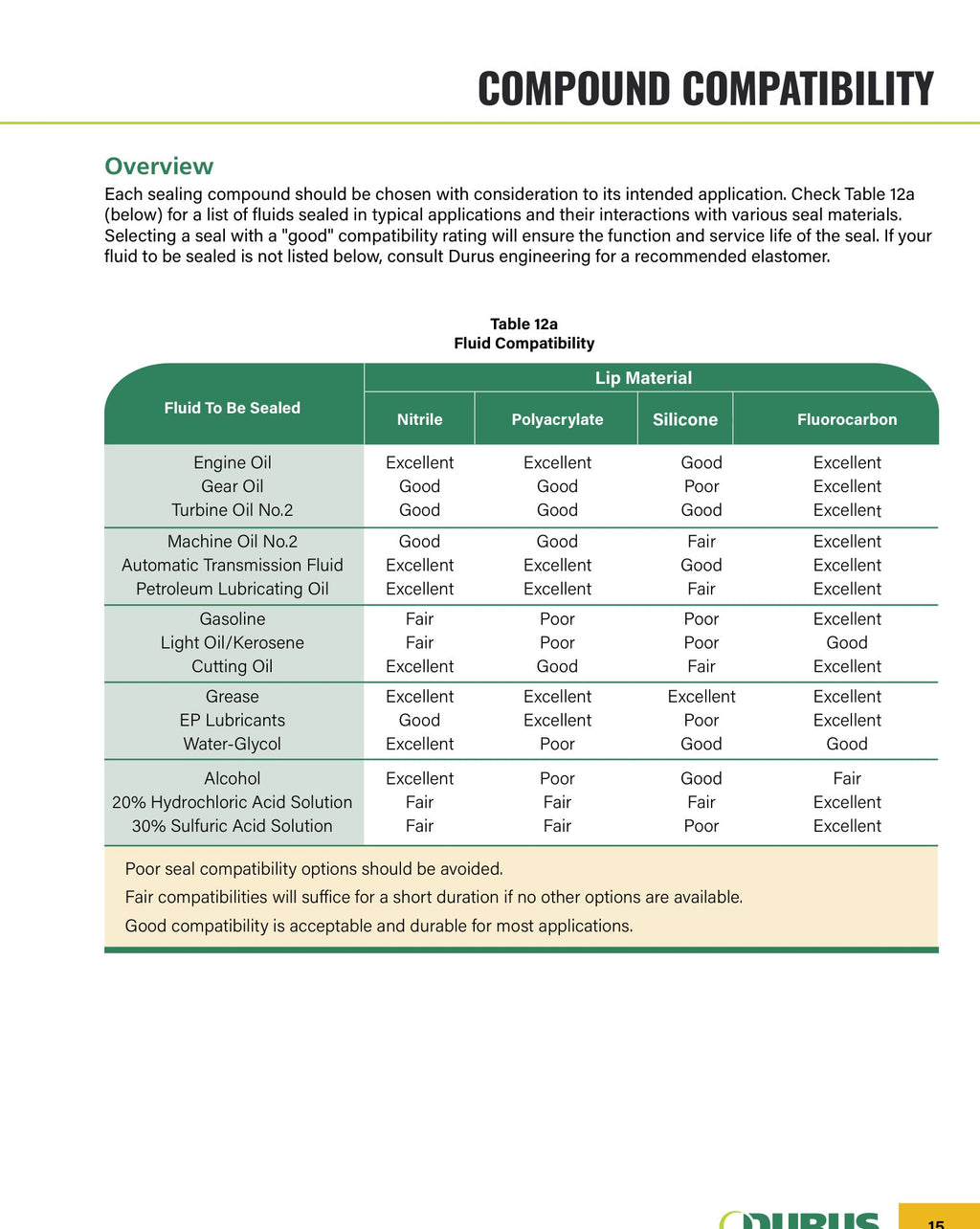

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -40°F to 250°F. Compatible with mineral oils, lubricating greases, hydraulic fluids, and most industrial fluids.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
