Durus 350X390X10 SA - 350mm × 390mm × 10mm Single Lip Oil Seal (Metric)


Price:
$ 422.53

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 350mm shaft diameter with different OD/width combinations:

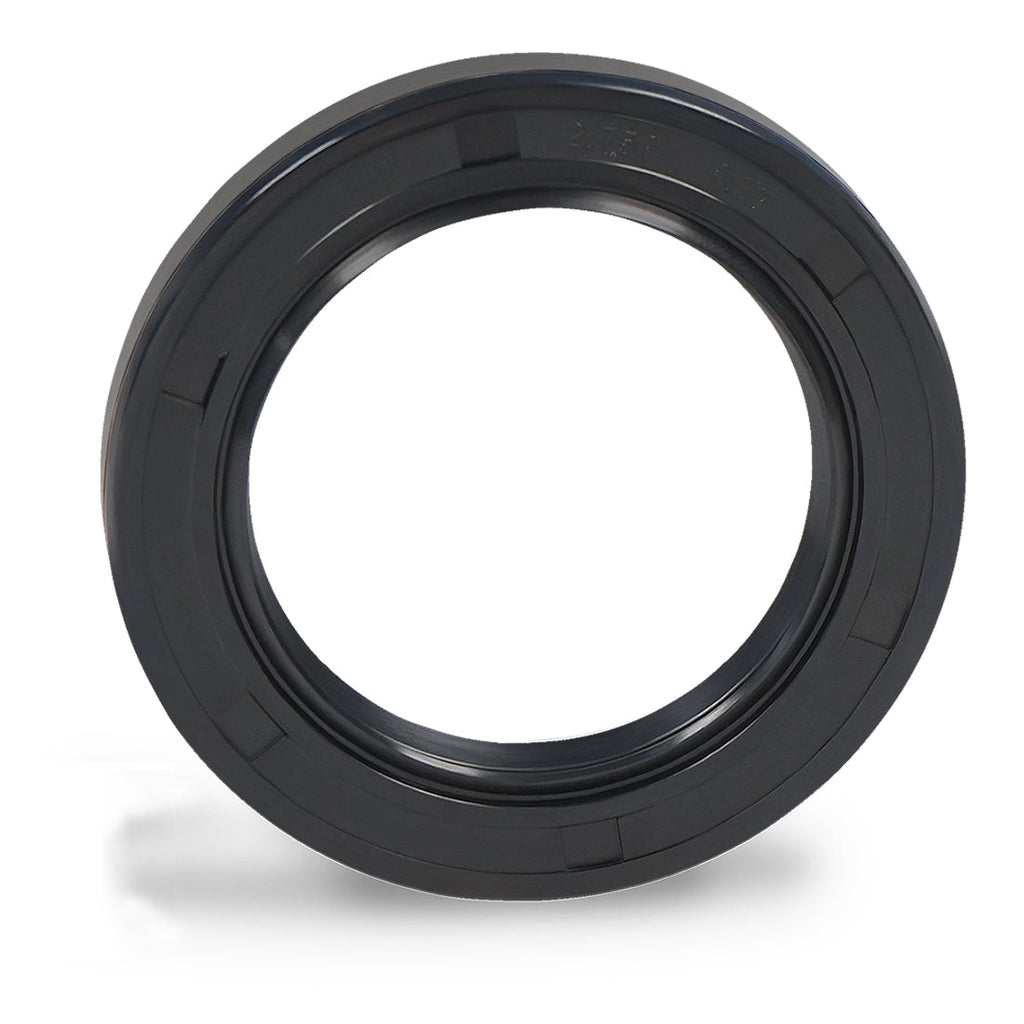

The Durus 350X390X10 SA is a 350mm × 390mm × 10mm rotary shaft oil seal (Spring-loaded (Metal Case)) with NBR (Buna-N) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 350X390X10 SA
Brand Durus
Category Metric Oil Seal
Seal Type SA - Spring-loaded (Metal Case)
Inner Diameter (Shaft) 350mm
Outer Diameter (Bore) 390mm
Width 10mm
Material NBR (Buna-N)
Lip Configuration Single Lip
Weight 1.281 lbs

Application

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -40°F to 250°F. Compatible with mineral oils, lubricating greases, hydraulic fluids, and most industrial fluids.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
