Durus 375444 AP - 3.75" × 4.499" × 0.468" Polyacrylate Oil Seal


Price:
$ 30.65

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 3.75" shaft diameter with different OD/width combinations:

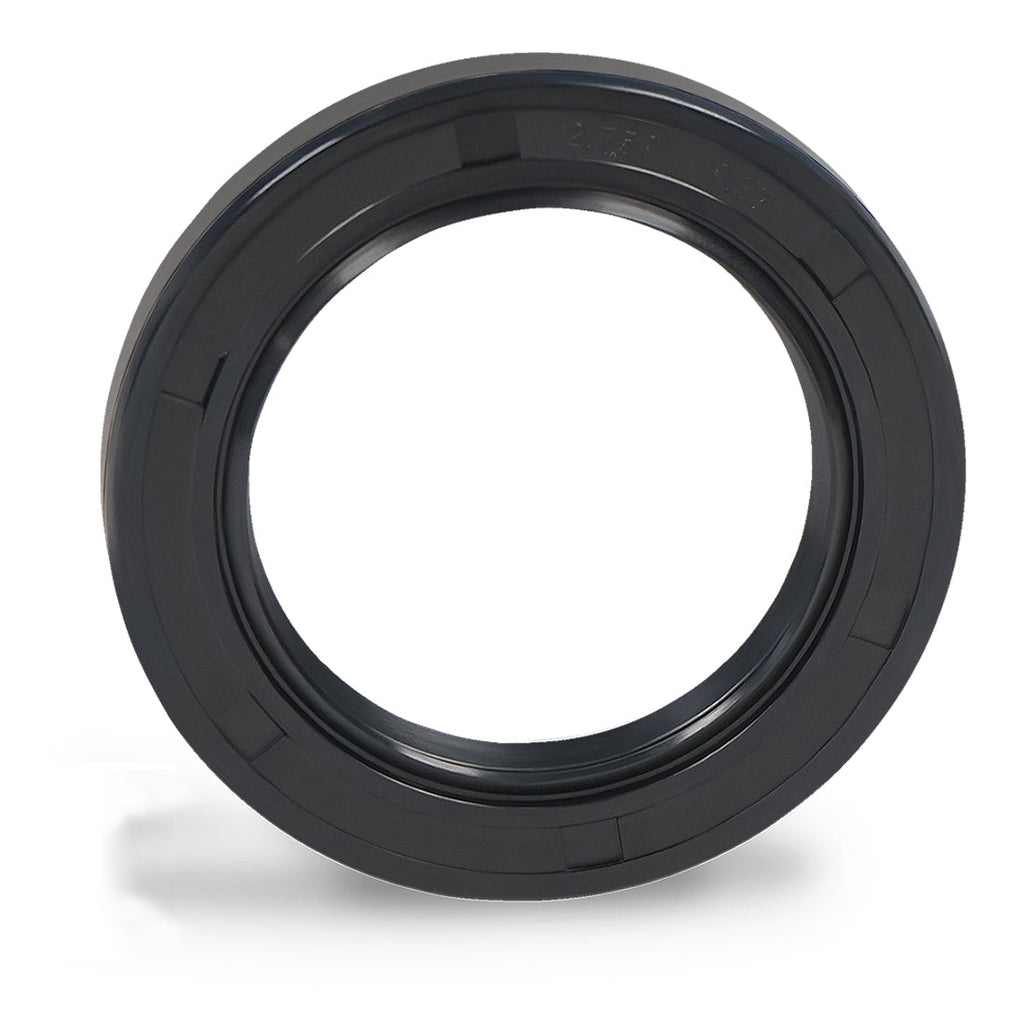

The Durus 375444 AP is a 3.75" × 4.499" × 0.468" rotary shaft oil seal (Type TA2) with Polyacrylate (ACM) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 375444 AP
Brand Durus
Category Inch Oil Seal

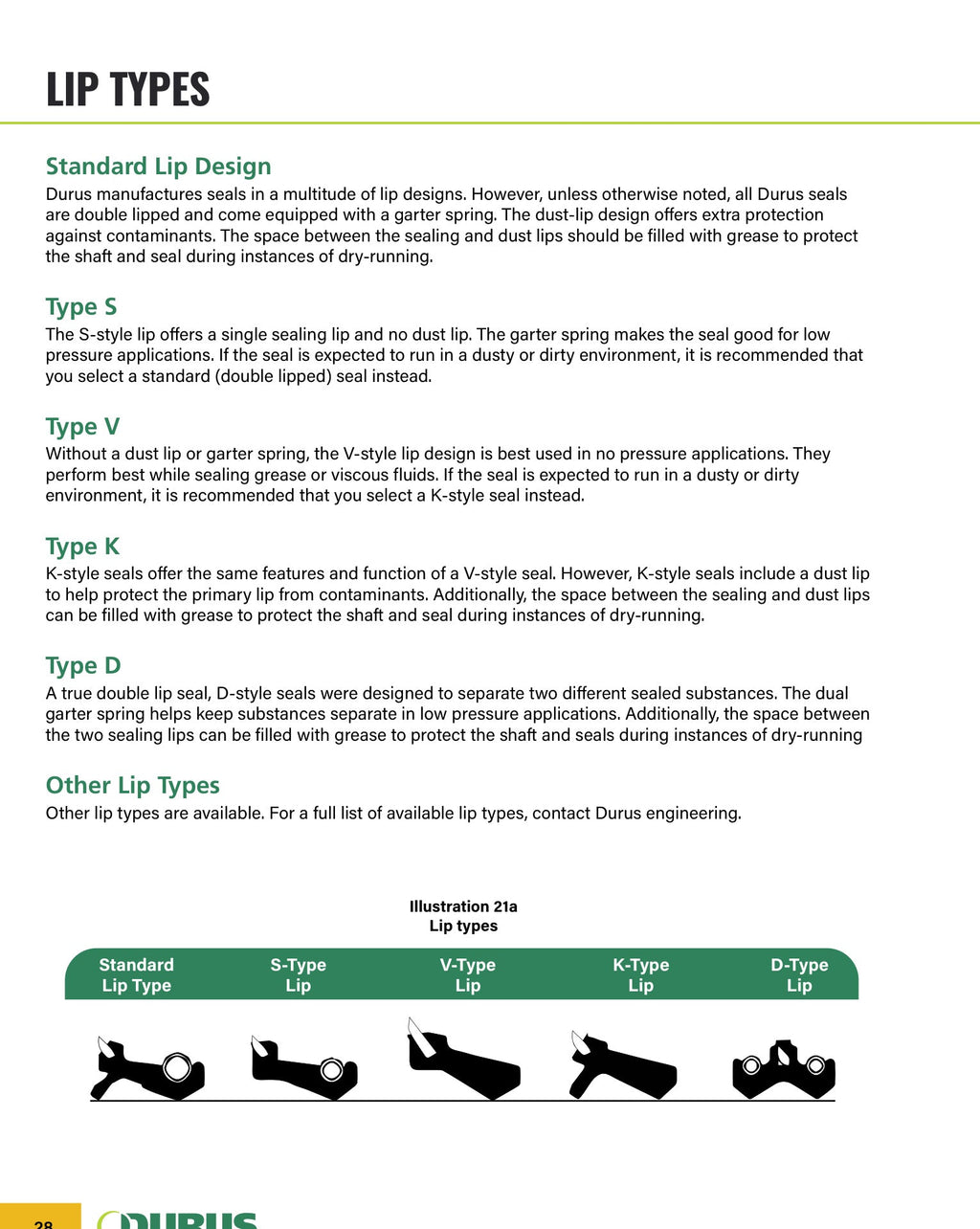

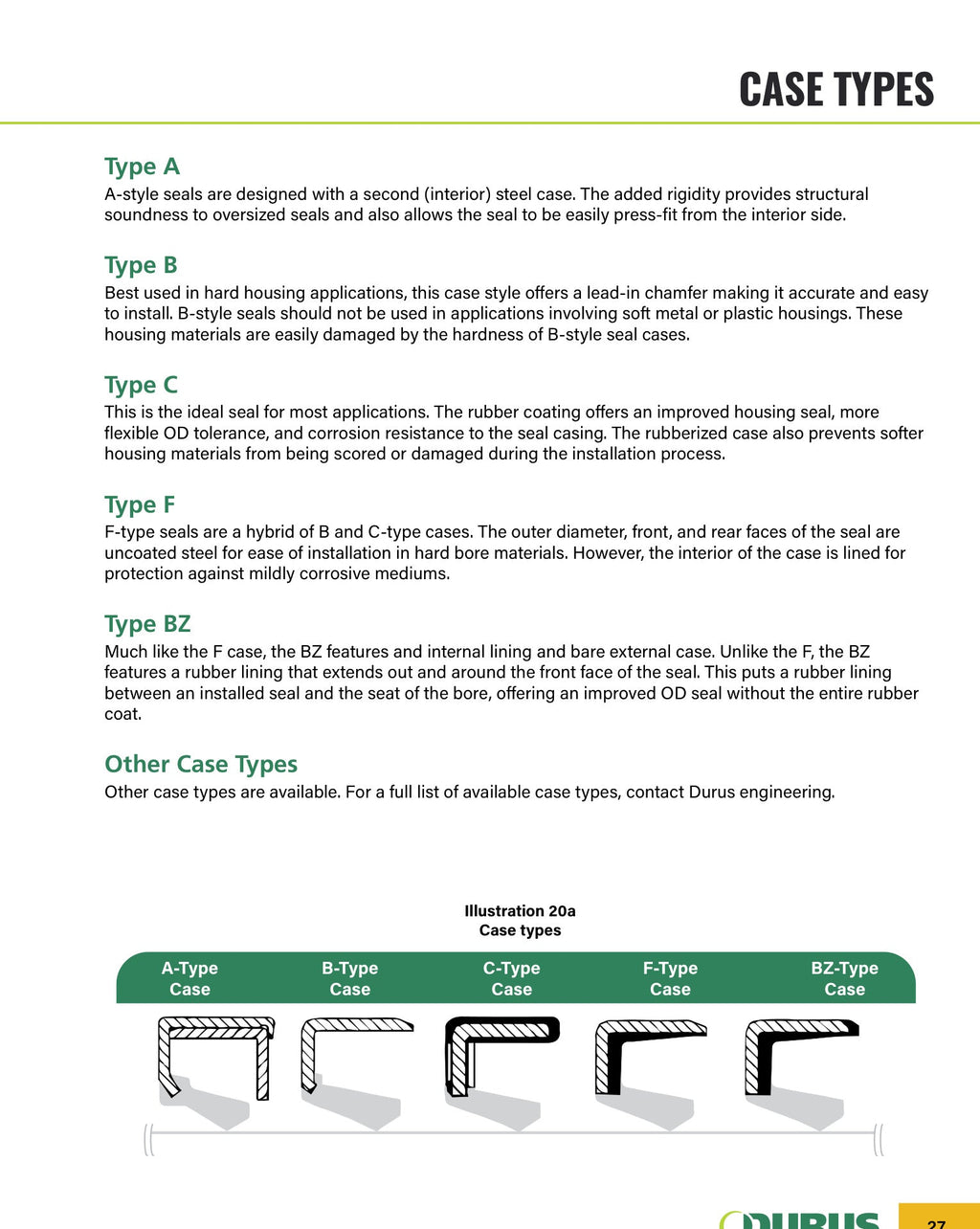

Seal Type TA2 - Type TA2
Inner Diameter (Shaft) 3.75"
Outer Diameter (Bore) 4.499"
Width 0.468"
Material Polyacrylate (ACM)
Weight 0.205 lbs

Application

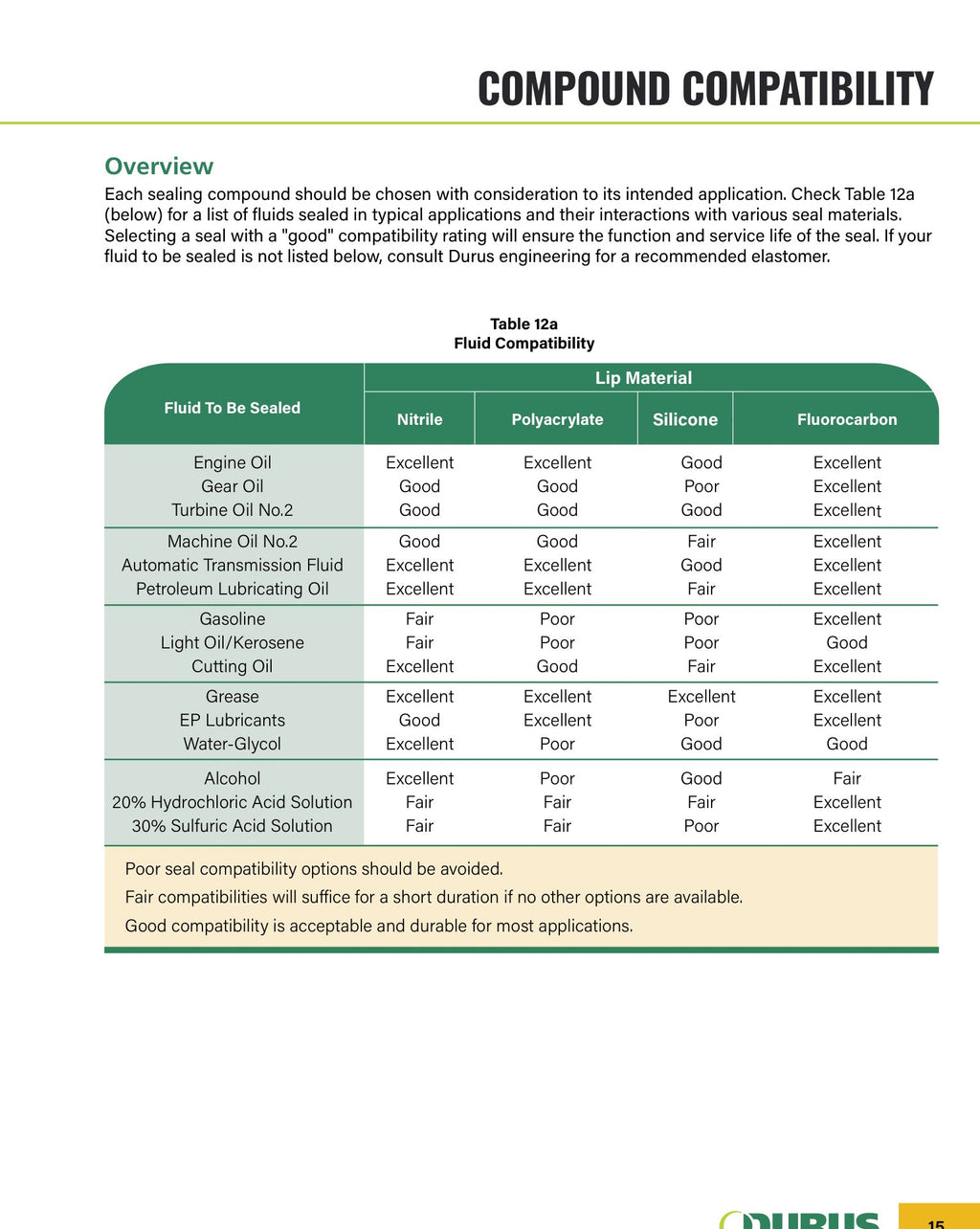

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -25°F to 300°F. Excellent for engine oil, gear oil, and EP lubricants; superior abrasion resistance.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
