Durus 41X65X9 SBP - 41mm × 65mm × 9mm Polyacrylate Oil Seal (Metric)


Price:
$ 11.21

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 41mm shaft diameter with different OD/width combinations:

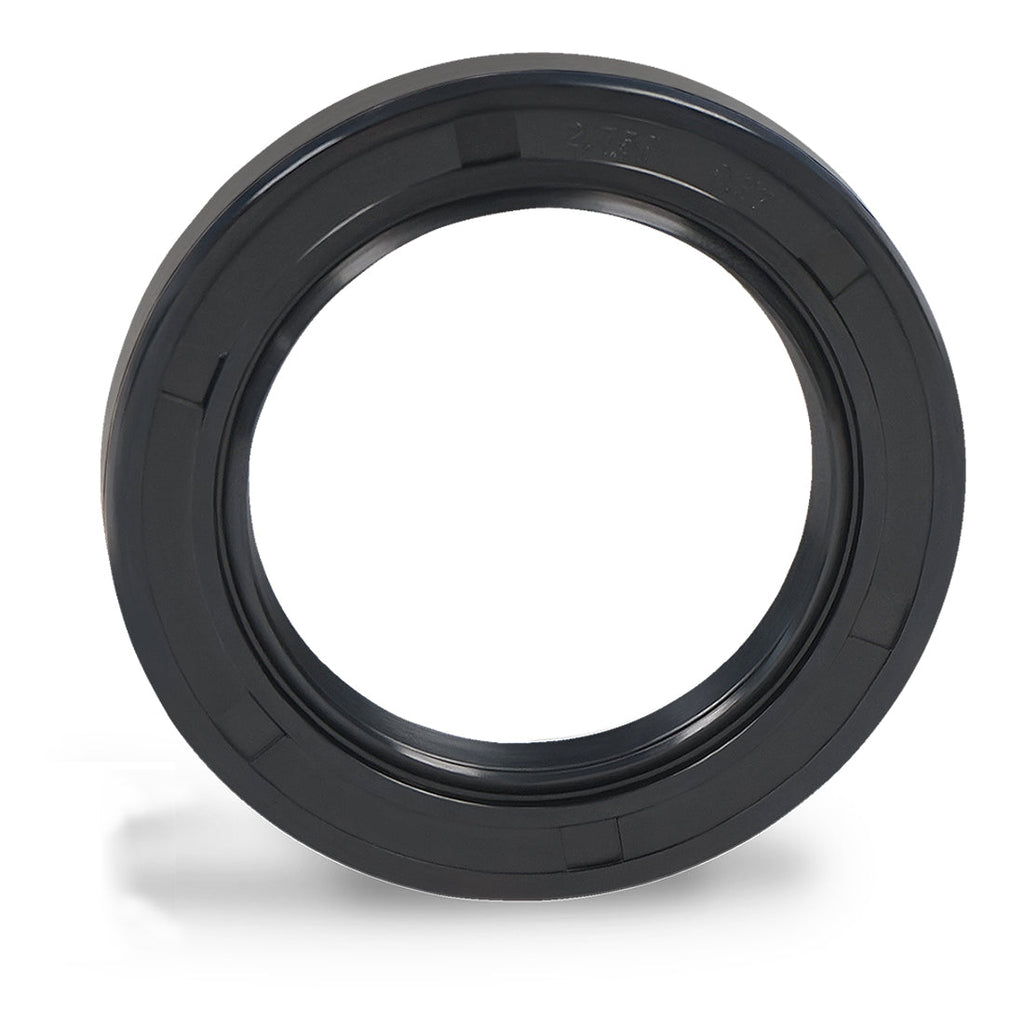

The Durus 41X65X9 SBP is a 41mm × 65mm × 9mm rotary shaft oil seal (Type SBP) with Polyacrylate (ACM) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 41X65X9 SBP
Brand Durus
Category Metric Oil Seal
Seal Type SBP - Type SBP
Inner Diameter (Shaft) 41mm
Outer Diameter (Bore) 65mm
Width 9mm
Material Polyacrylate (ACM)
Weight 0.099 lbs

Application

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -25°F to 300°F. Excellent for engine oil, gear oil, and EP lubricants; superior abrasion resistance.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
