Durus 42X72X10 C4 - 42mm × 72mm × 10mm Double Lip Oil Seal (Metric)


Price:
$ 7.72

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 42mm shaft diameter with different OD/width combinations:

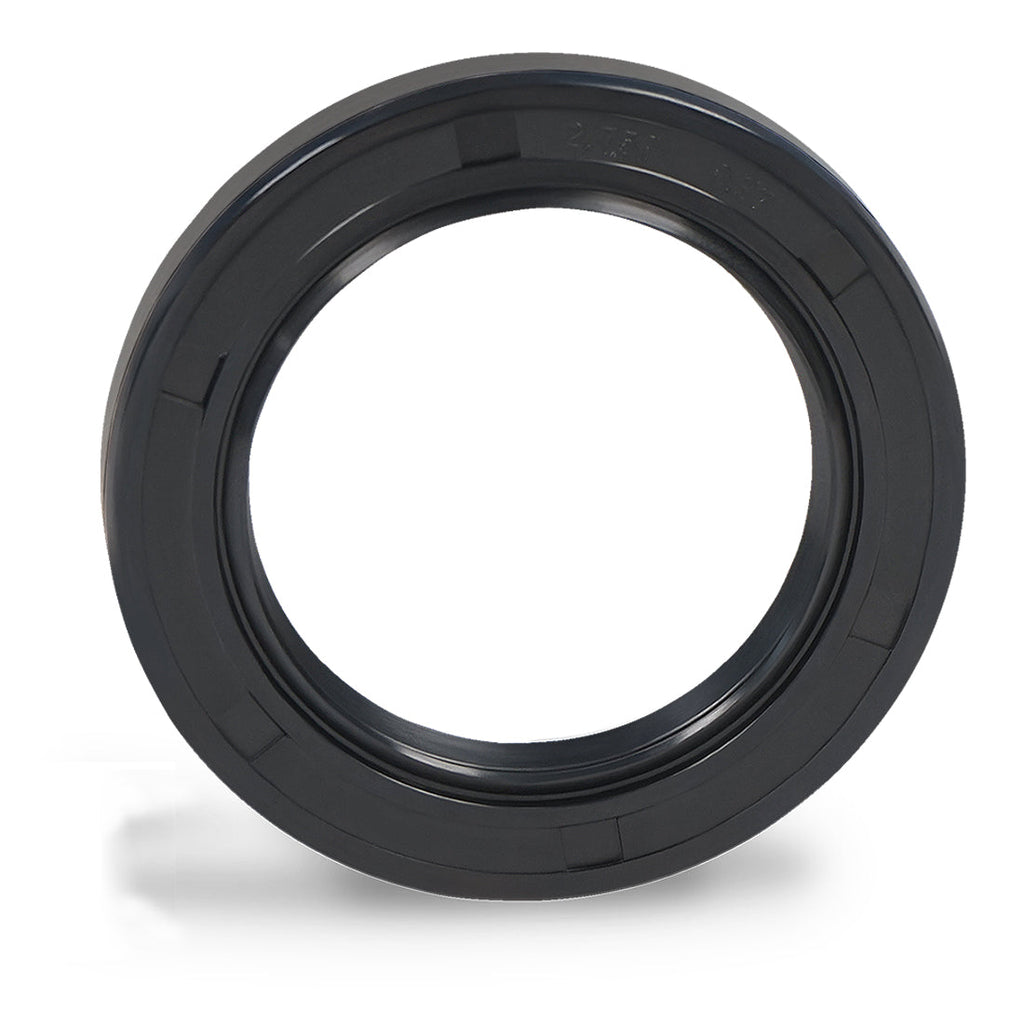

The Durus 42X72X10 C4 is a 42mm × 72mm × 10mm rotary shaft oil seal (Type C4) with NBR (Buna-N) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 42X72X10 C4
Brand Durus
Category Metric Oil Seal
Seal Type C4 - Type C4
Inner Diameter (Shaft) 42mm
Outer Diameter (Bore) 72mm
Width 10mm
Material NBR (Buna-N)
Lip Configuration Double Lip
Weight 0.148 lbs

Application

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -40°F to 250°F. Compatible with mineral oils, lubricating greases, hydraulic fluids, and most industrial fluids.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
