Durus 65X88X12 BP - 65mm × 88mm × 12mm Double Lip Polyacrylate Oil Seal (Metric)


Price:
$ 16.28

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 65mm shaft diameter with different OD/width combinations:

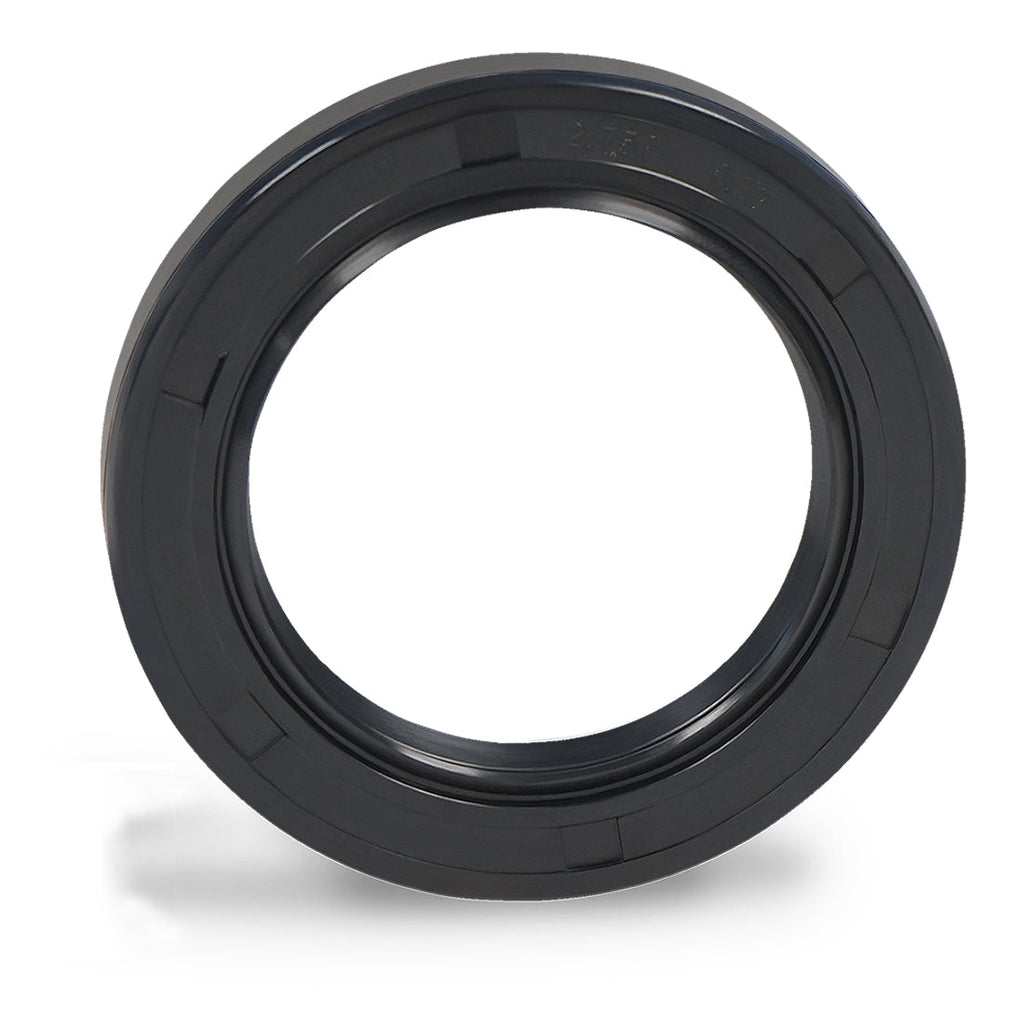

The Durus 65X88X12 BP is a 65mm × 88mm × 12mm rotary shaft oil seal (Type BP) with Polyacrylate (ACM) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 65X88X12 BP
Brand Durus
Category Metric Oil Seal
Seal Type BP - Type BP
Inner Diameter (Shaft) 65mm
Outer Diameter (Bore) 88mm
Width 12mm
Material Polyacrylate (ACM)

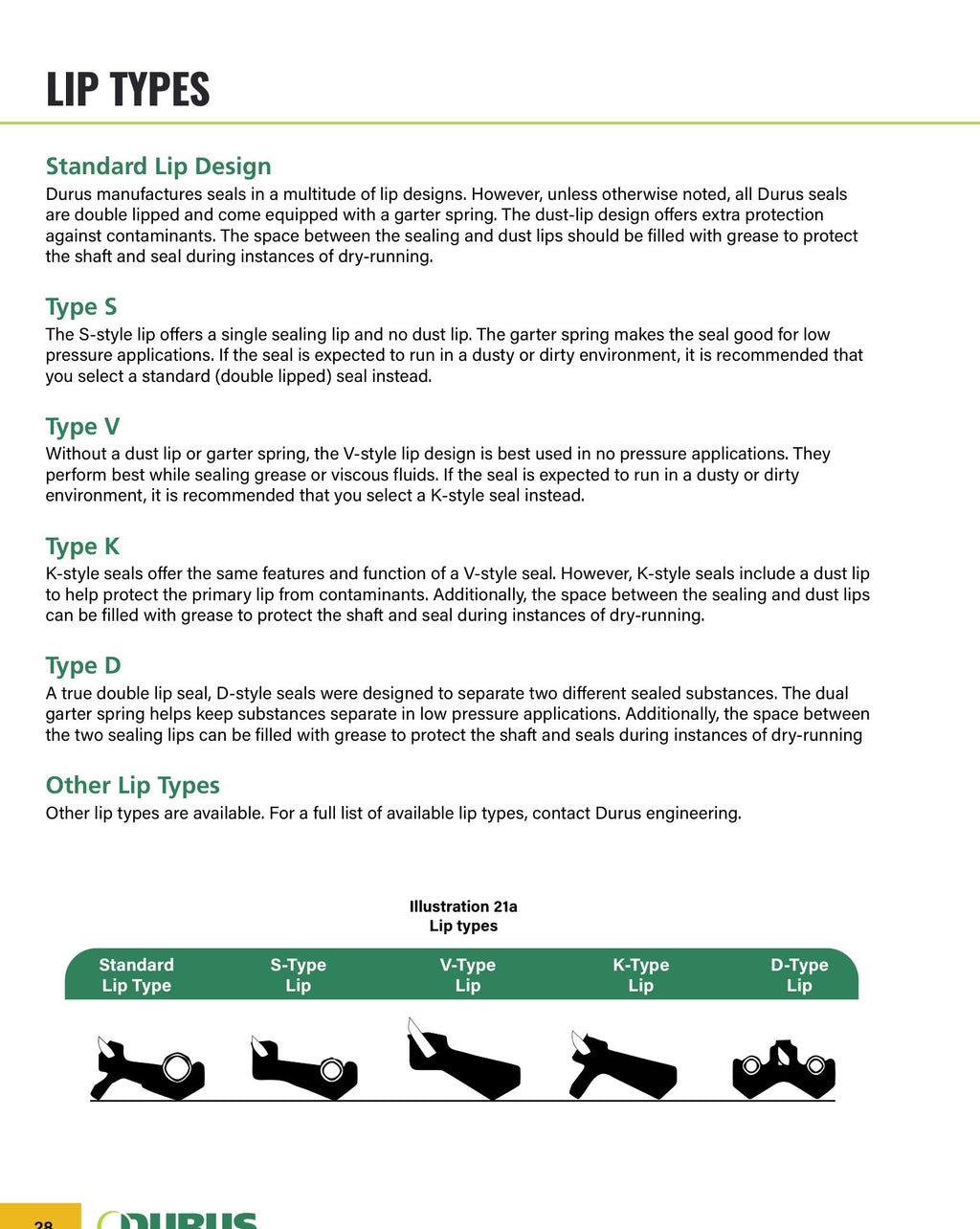

Lip Configuration Double Lip
Weight 0.183 lbs

Application

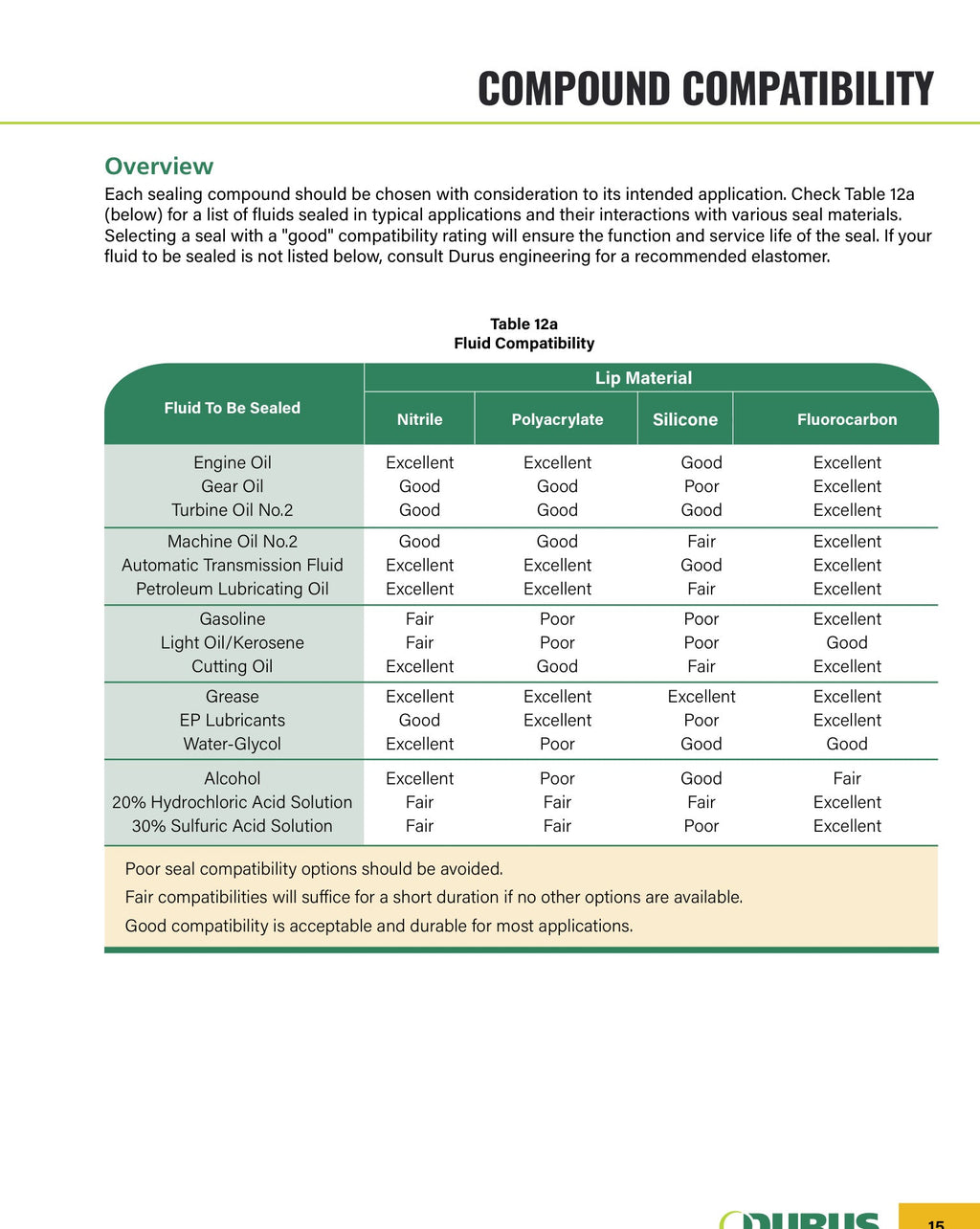

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -25°F to 300°F. Excellent for engine oil, gear oil, and EP lubricants; superior abrasion resistance.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
