Durus 75X121X13 BS - 75mm × 121mm × 13mm Double Lip Silicone Oil Seal (Metric)


Price:
$ 20.75

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 75mm shaft diameter with different OD/width combinations:

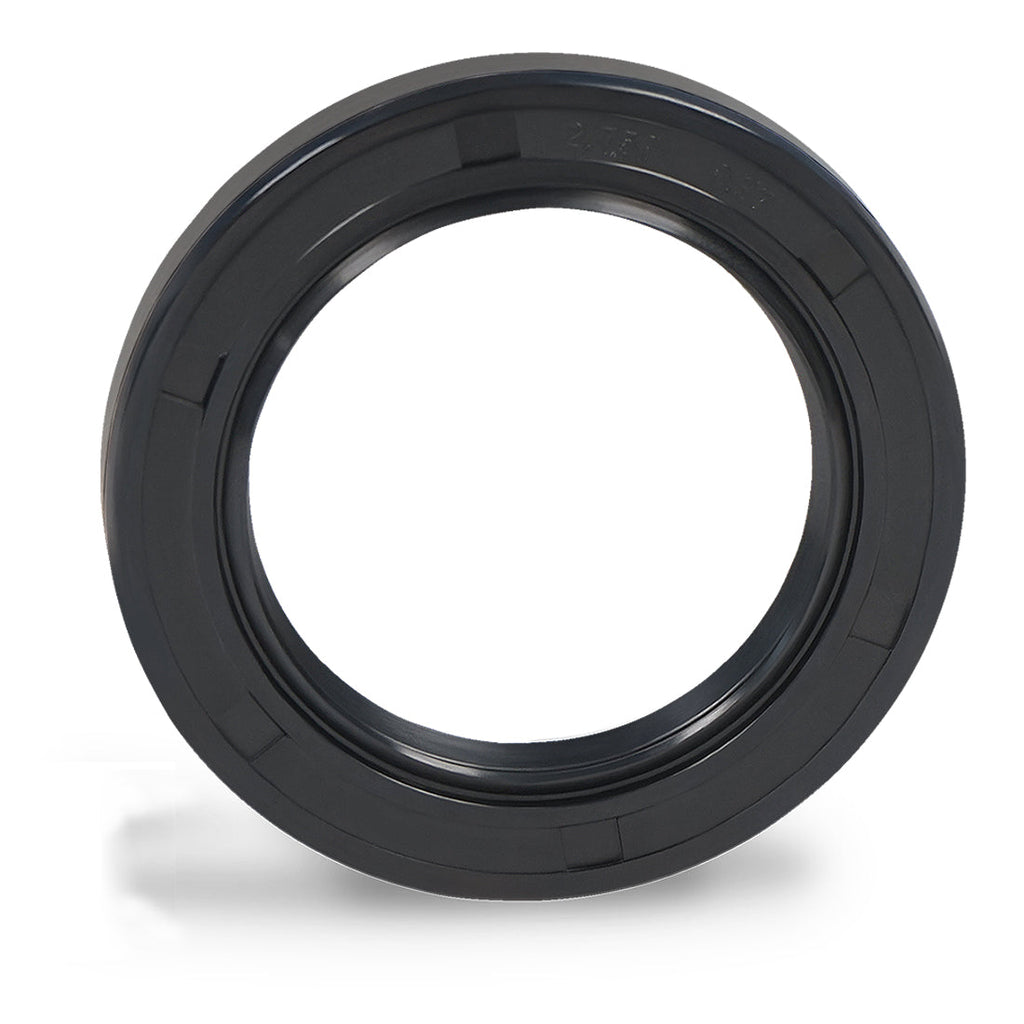

The Durus 75X121X13 BS is a 75mm × 121mm × 13mm rotary shaft oil seal (Type BS) with Silicone (VMQ) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 75X121X13 BS
Brand Durus
Category Metric Oil Seal
Seal Type BS - Type BS
Inner Diameter (Shaft) 75mm
Outer Diameter (Bore) 121mm
Width 13mm
Material Silicone (VMQ)
Lip Configuration Double Lip
Weight 0.507 lbs

Application

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -65°F to 350°F. Good for engine oil, brake fluid, and food-grade applications.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
