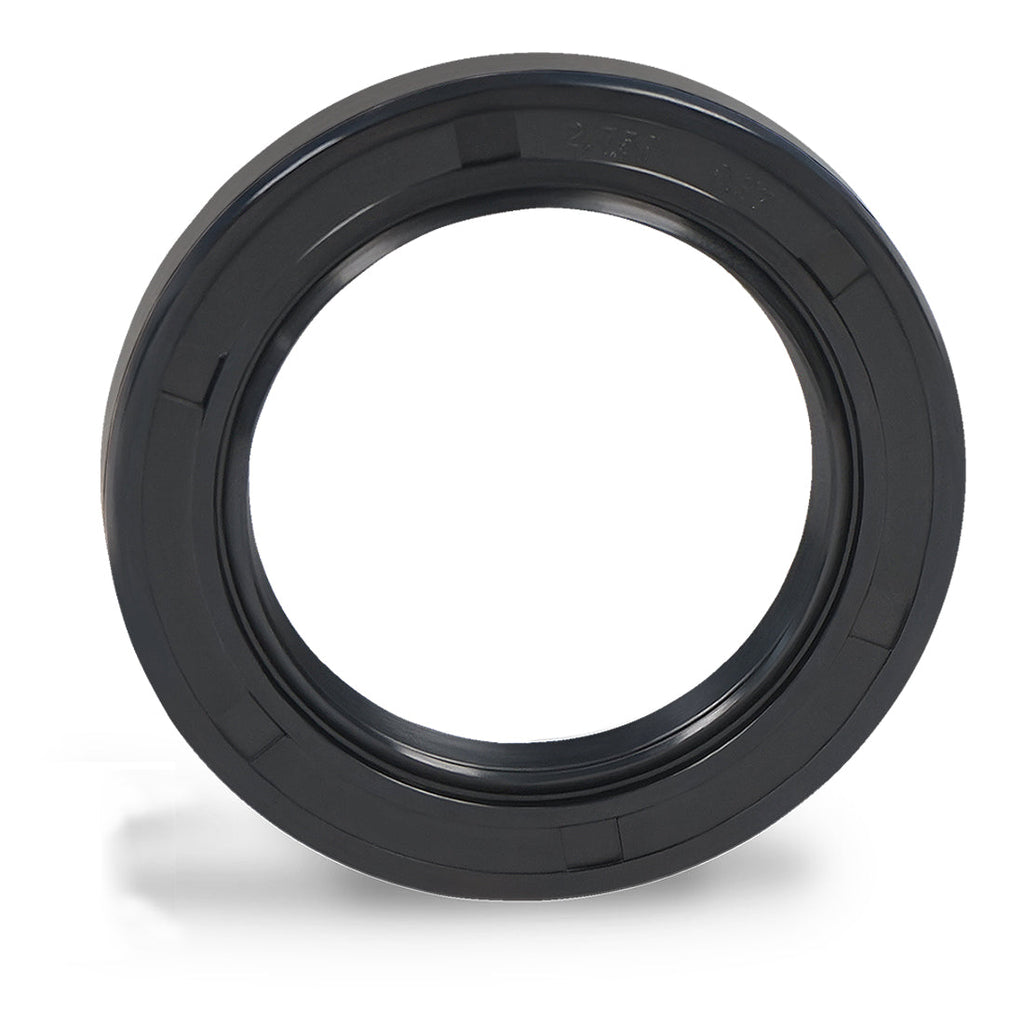

Durus 85X110X13 B - 85mm × 110mm × 13mm Double Lip Oil Seal (Metric)


Price:
$ 16.55

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 85mm shaft diameter with different OD/width combinations:

The Durus 85X110X13 B is a 85mm × 110mm × 13mm rotary shaft oil seal (Single Lip) with NBR (Buna-N) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 85X110X13 B
Brand Durus
Category Metric Oil Seal

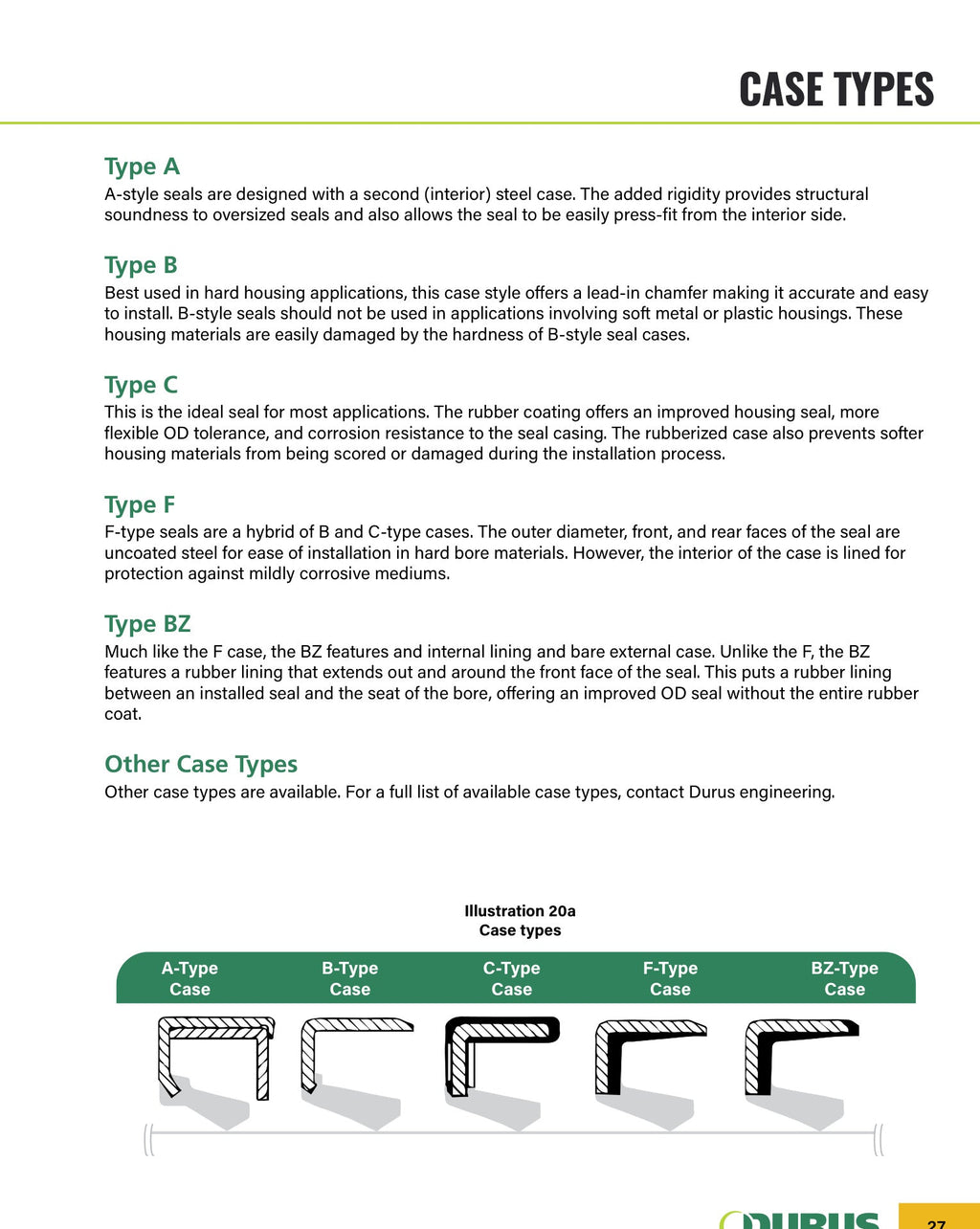

Seal Type B - Single Lip
Inner Diameter (Shaft) 85mm
Outer Diameter (Bore) 110mm
Width 13mm
Material NBR (Buna-N)

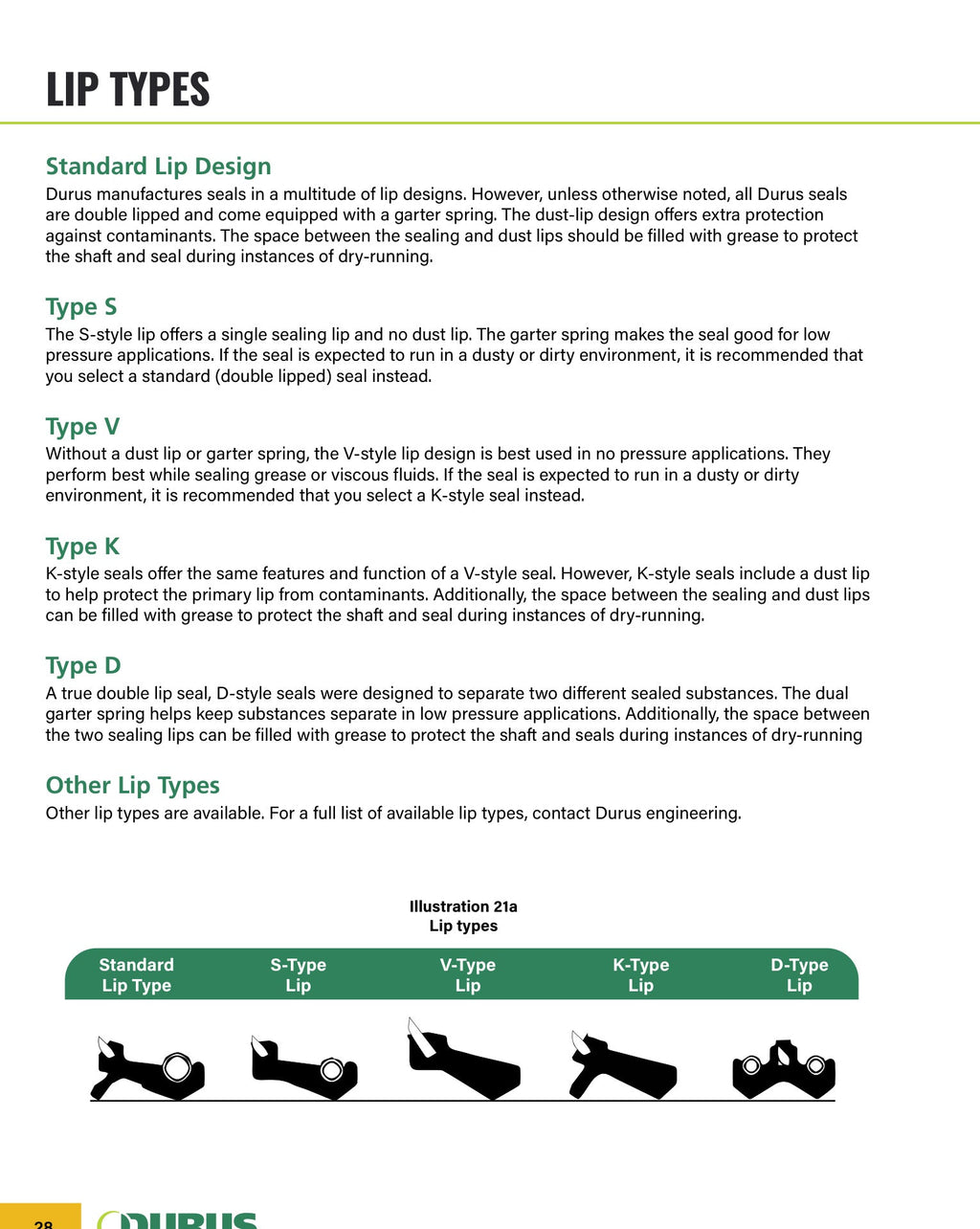

Lip Configuration Double Lip
Weight 0.274 lbs

Application

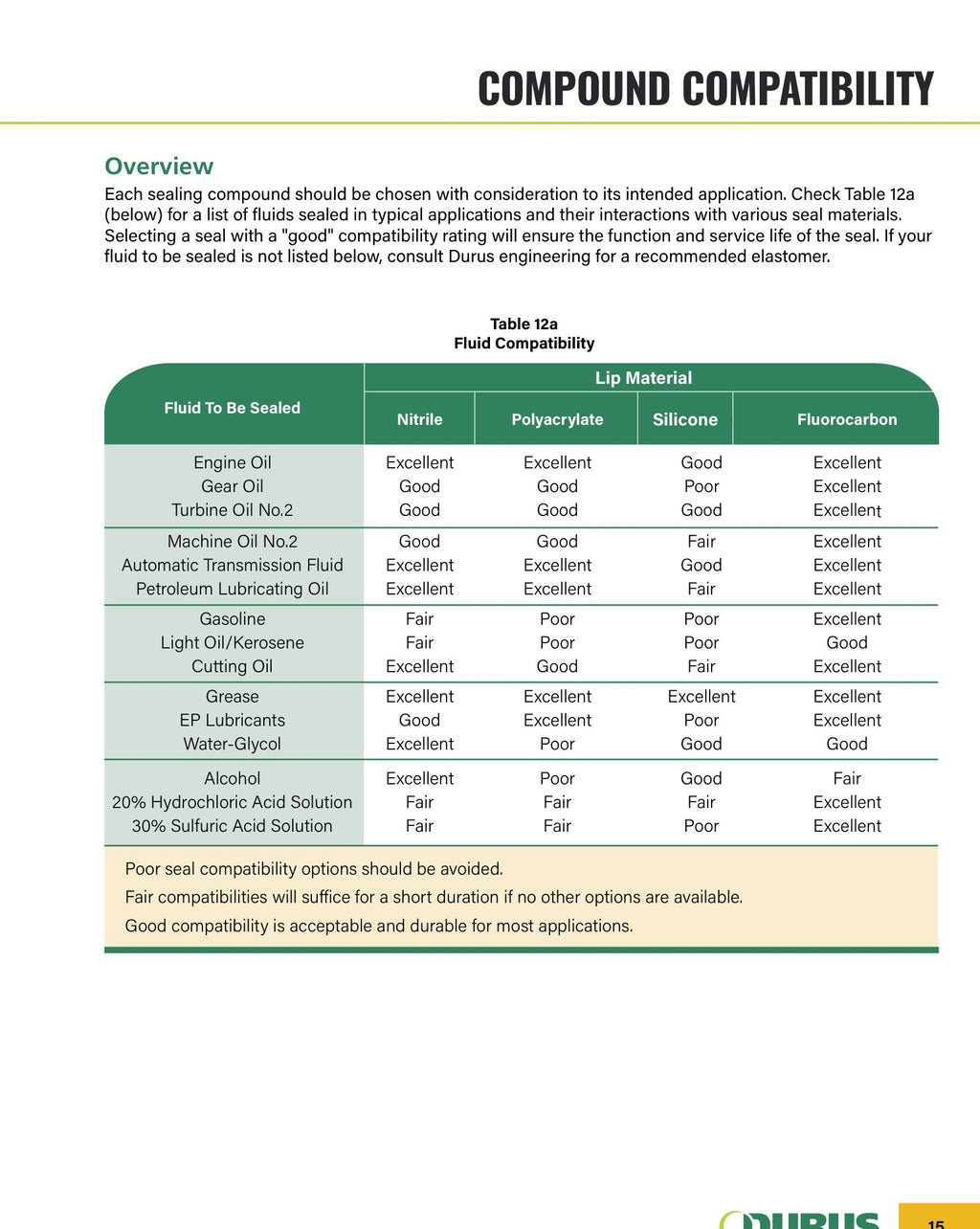

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -40°F to 250°F. Compatible with mineral oils, lubricating greases, hydraulic fluids, and most industrial fluids.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
