Durus 88X115X12 C - 88mm × 115mm × 12mm Double Lip Oil Seal (Metric)


Price:
$ 15.13

Description

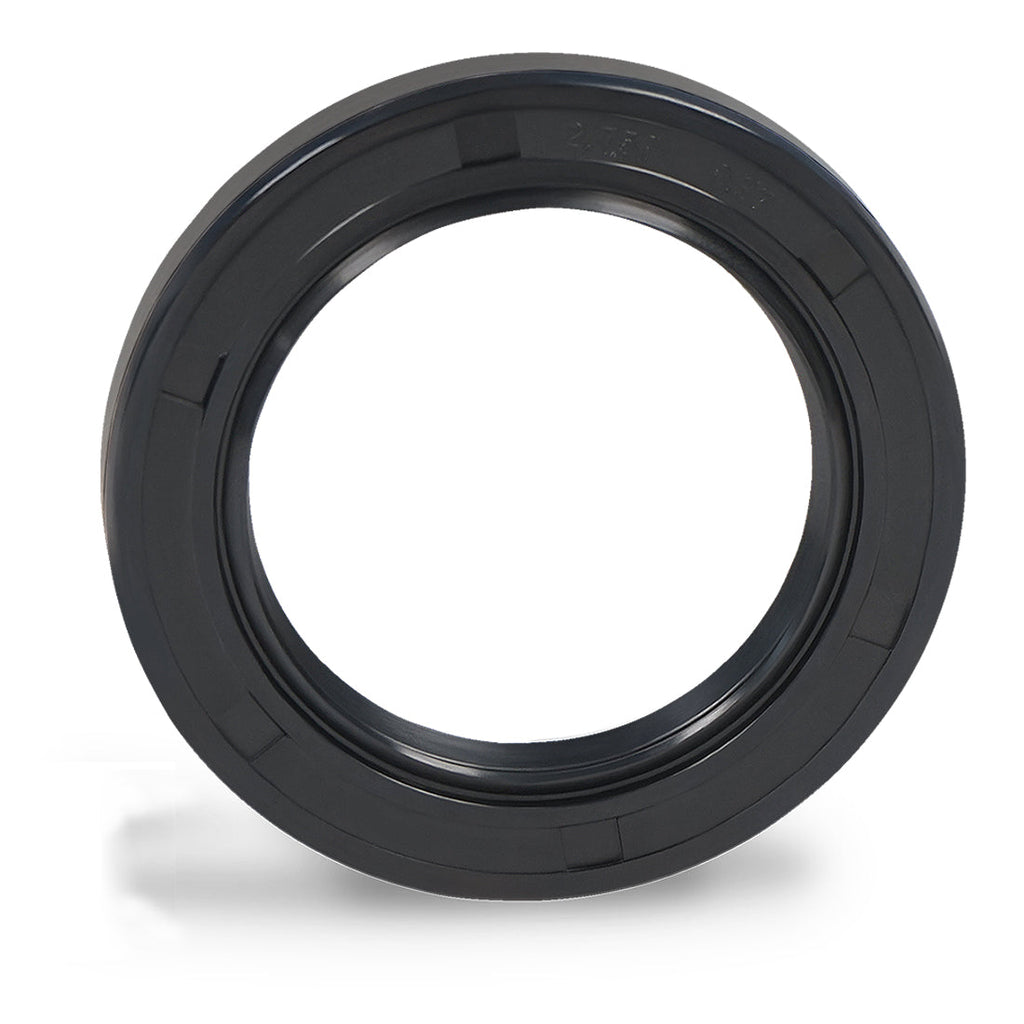

The Durus 88X115X12 C is a 88mm × 115mm × 12mm rotary shaft oil seal (Single Lip + Dust Lip) with NBR (Buna-N) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 88X115X12 C
Brand Durus
Category Metric Oil Seal

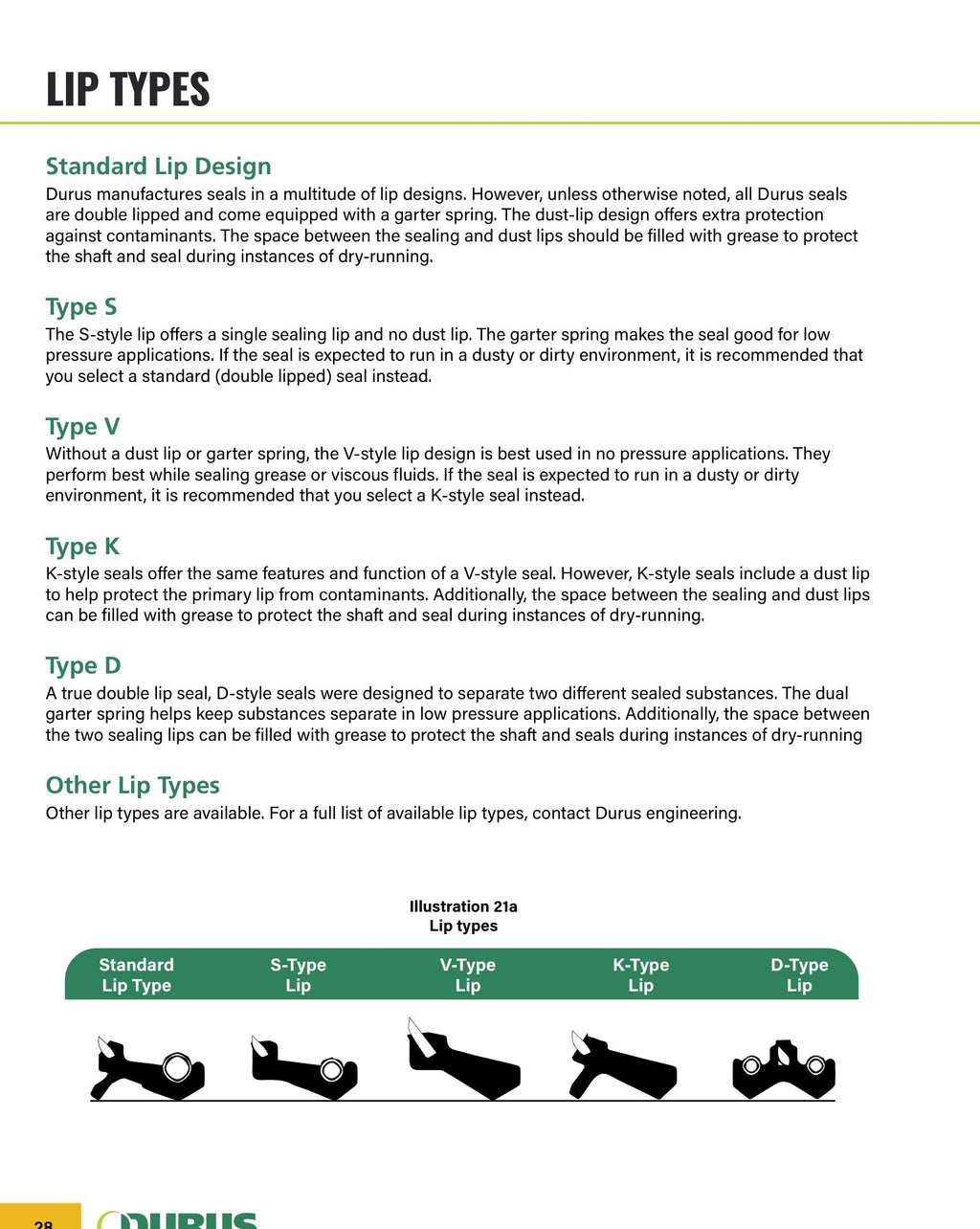

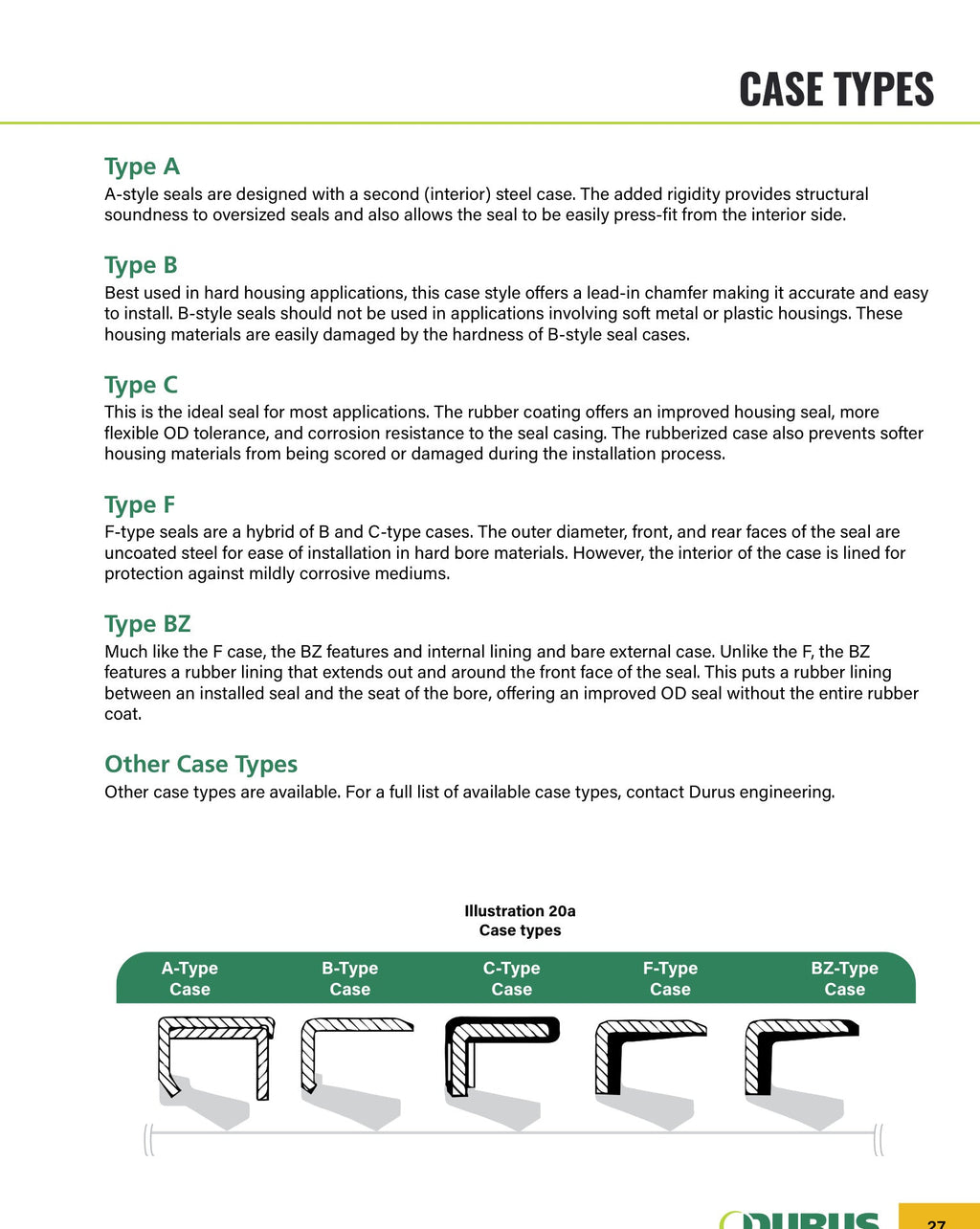

Seal Type C - Single Lip + Dust Lip
Inner Diameter (Shaft) 88mm
Outer Diameter (Bore) 115mm
Width 12mm

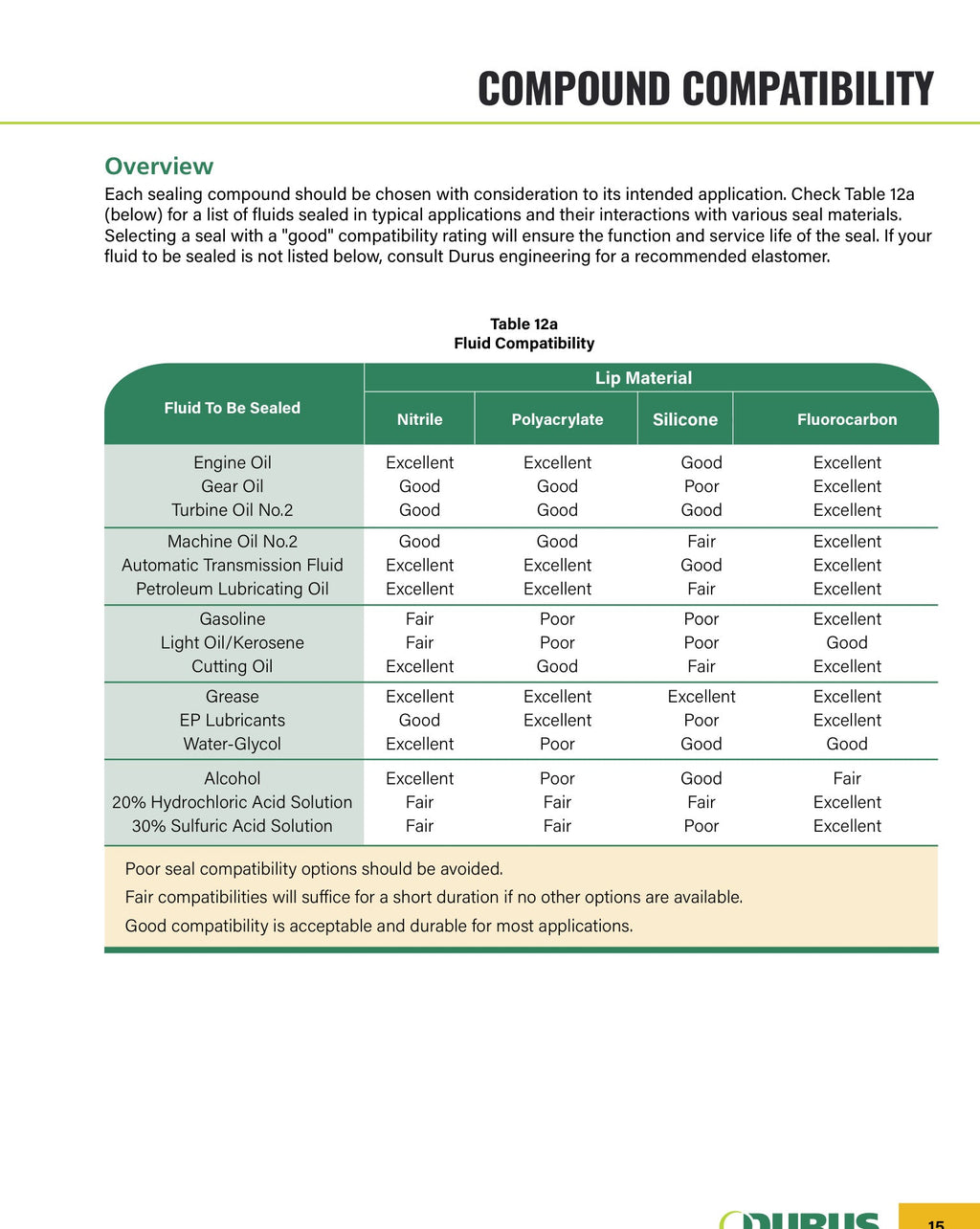

Material NBR (Buna-N)
Lip Configuration Double Lip
Weight 0.285 lbs

Application

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -40°F to 250°F. Compatible with mineral oils, lubricating greases, hydraulic fluids, and most industrial fluids.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
