Durus 9X16X5 G4V - 9mm × 16mm × 5mm Single Lip Viton Oil Seal (Metric)


Price:
$ 9.86

Description

⚡ Same Shaft Size, Other Options

Other Durus seals for 9mm shaft diameter with different OD/width combinations:

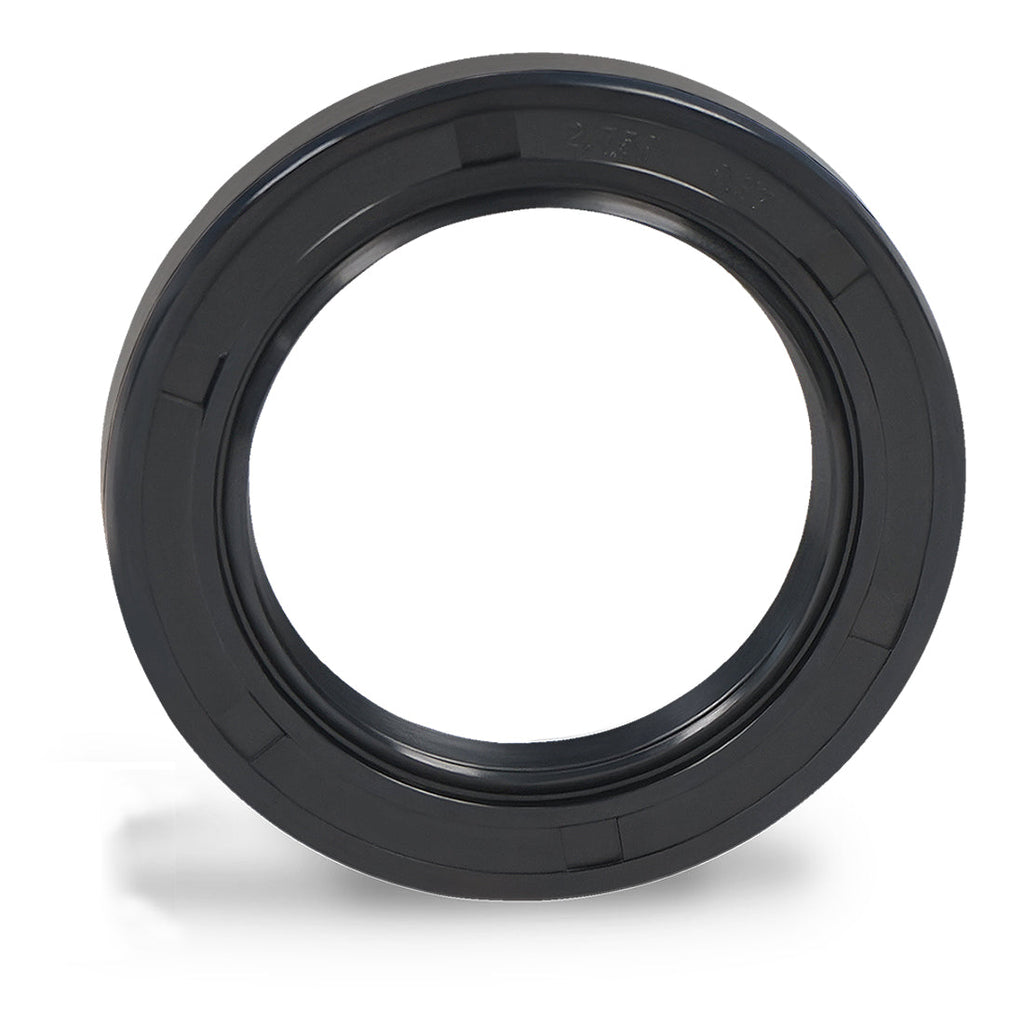

The Durus 9X16X5 G4V is a 9mm × 16mm × 5mm rotary shaft oil seal (Type G4V) with Viton (FKM) sealing lip. Designed for retaining lubricant and excluding contaminants in pumps, gearboxes, motors, agitators, and rotating industrial equipment.

Specifications

Part Number 9X16X5 G4V
Brand Durus
Category Metric Oil Seal
Seal Type G4V - Type G4V
Inner Diameter (Shaft) 9mm
Outer Diameter (Bore) 16mm
Width 5mm
Material Viton (FKM)
Lip Configuration Single Lip
Weight 0.02 lbs

Application

Durus rotary shaft oil seals are used in pumps, gear reducers, motors, agitators, conveyors, automotive transmissions, and rotating equipment where lubricant must be retained and contaminants excluded. Operating temperature range: -40°F to 400°F. Excellent for fuels, synthetic oils, hydraulic fluids, and aggressive chemicals.

Installation: Press into the housing bore using a flat-faced installation tool. The seal face should be flush or slightly recessed from the housing face. Lubricate the lip lightly before installation. Use a Durusleeve to restore shafts with wear grooves from prior seal contact.
