FM1-5-18-56H — Fractional Motor


Price:
$ 441.60

Description

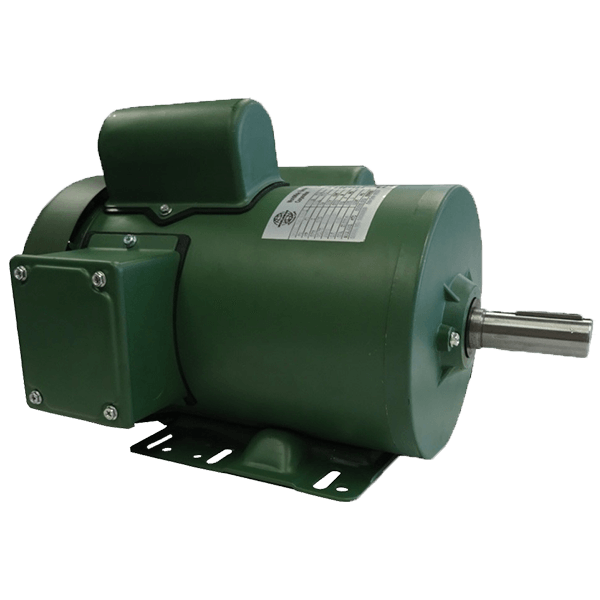

FM1-5-18-56H — Fractional Motor

The FM1-5-18-56H is a 1.5 hp, 1800 rpm, 1-phase, 115/230v, 56h frame, tefc fractional motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number FM1-5-18-56H
Horsepower (HP) 1.5
Speed (RPM) 1800
Phase Single-Phase
Voltage 115/230
Frequency 60 HZ
NEMA Frame 56H
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 77.0
Full-Load Amps 14.5
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP54
Weight (lbs) 37
Warranty Two Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the FM1-5-18-56H used for?

The FM1-5-18-56H is a 1.5 hp, 1800 rpm, 1-phase, 115/230v, 56h frame, tefc fractional motor used for industrial machinery and oem equipment and similar loads.

What frame is the FM1-5-18-56H?

The FM1-5-18-56H uses a NEMA 56H frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the FM1-5-18-56H run on?

The FM1-5-18-56H is rated 115/230V, 1-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the FM1-5-18-56H ship?

Most in-stock units of the FM1-5-18-56H ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on FM1-5-18-56H?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
