FM12-18-56 — Fractional Motor


Price:
$ 304.55

Description

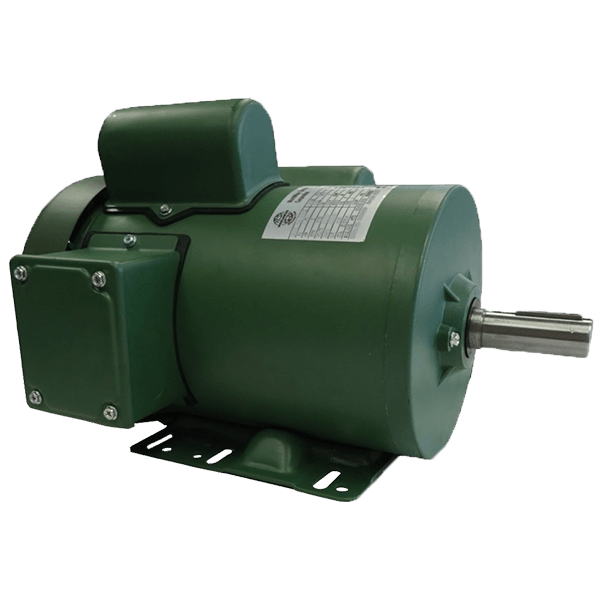

FM12-18-56 — Fractional Motor

The FM12-18-56 is a 0.5 hp, 1800 rpm, 1-phase, 115/230v, 56 frame, tefc fractional motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number FM12-18-56
Horsepower (HP) 0.5
Speed (RPM) 1800
Phase Single-Phase
Voltage 115/230
Frequency 60 HZ
NEMA Frame 56
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 64.5
Full-Load Amps 7.2
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP54
Weight (lbs) 25
Warranty Two Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the FM12-18-56 used for?

The FM12-18-56 is a 0.5 hp, 1800 rpm, 1-phase, 115/230v, 56 frame, tefc fractional motor used for industrial machinery and oem equipment and similar loads.

What frame is the FM12-18-56?

The FM12-18-56 uses a NEMA 56 frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the FM12-18-56 run on?

The FM12-18-56 is rated 115/230V, 1-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the FM12-18-56 ship?

Most in-stock units of the FM12-18-56 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
