IEC25-36-160-FF — Aluminum Frame Motor


Price:
$ 2,394.72

Description

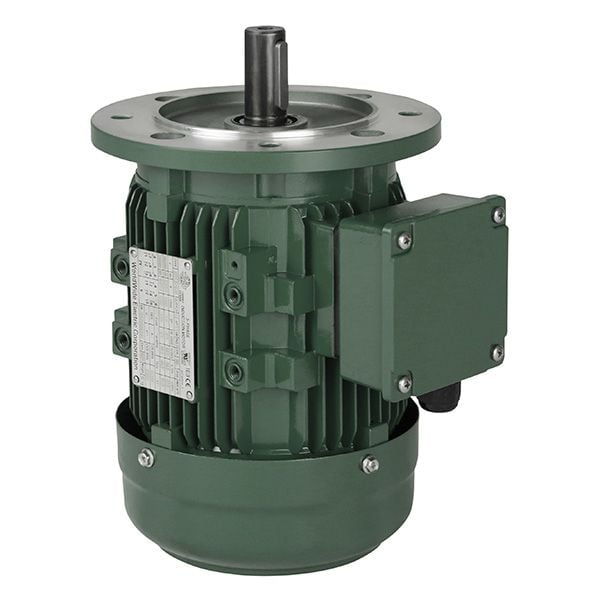

IEC25-36-160-FF — Aluminum Frame Motor

The IEC25-36-160-FF is a 25 hp, 3600 rpm, 3-phase, 230/460v, 160l frame, tefc aluminum frame motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number IEC25-36-160-FF
Horsepower (HP) 25
Speed (RPM) 3600
Phase Three-Phase
Voltage 230/460
NEMA Frame 160L
Enclosure TEFC
Service Factor 1.15
Ingress Protection IP55
Warranty Two Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the IEC25-36-160-FF used for?

The IEC25-36-160-FF is a 25 hp, 3600 rpm, 3-phase, 230/460v, 160l frame, tefc aluminum frame motor used for industrial machinery and oem equipment and similar loads.

What frame is the IEC25-36-160-FF?

The IEC25-36-160-FF uses a NEMA 160L frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the IEC25-36-160-FF run on?

The IEC25-36-160-FF is rated 230/460V, 3-Phase at 60 Hz. Verify supply voltage and connection against the motor nameplate.

How fast does the IEC25-36-160-FF ship?

Most in-stock units of the IEC25-36-160-FF ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on IEC25-36-160-FF?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
