Description

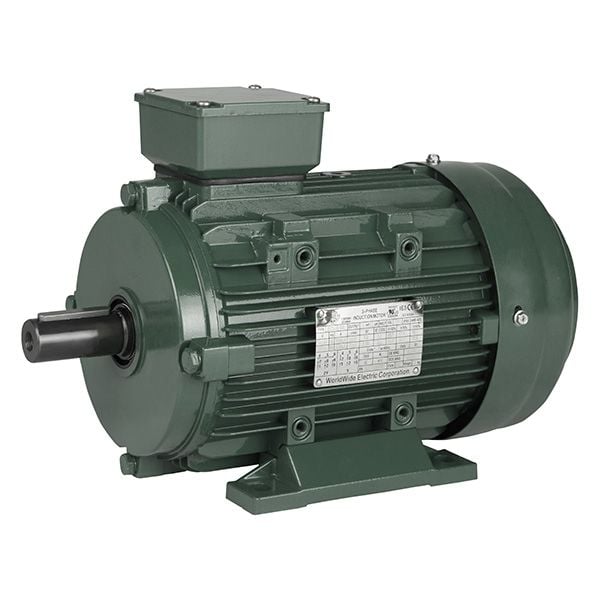

IEC5-5-18-112 - Aluminum Frame Motor
The IEC5-5-18-112 is a 5.5 hp, 1800 rpm, 3-phase, 230/460v, 112m frame, tefc aluminum frame motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | IEC5-5-18-112 |
| Horsepower (HP) | 5.5 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| NEMA Frame | 112M |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 88.6 |
| Full-Load Amps | 6.7 |
| Ingress Protection | IP55 |
| Warranty | Two Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the IEC5-5-18-112 used for?
The IEC5-5-18-112 is a 5.5 hp, 1800 rpm, 3-phase, 230/460v, 112m frame, tefc aluminum frame motor used for industrial machinery and oem equipment and similar loads.
What frame is the IEC5-5-18-112?
The IEC5-5-18-112 uses a NEMA 112M frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the IEC5-5-18-112 run on?
The IEC5-5-18-112 is rated 230/460V, 3-Phase at 60 Hz. Verify supply voltage and connection against the motor nameplate.
How fast does the IEC5-5-18-112 ship?
Most in-stock units of the IEC5-5-18-112 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Helpful guides: NEMA frame size chart · How to read a motor nameplate
Need a quote on IEC5-5-18-112?
Most in-stock items ship same-day - call to confirm availability and freight.
