Description

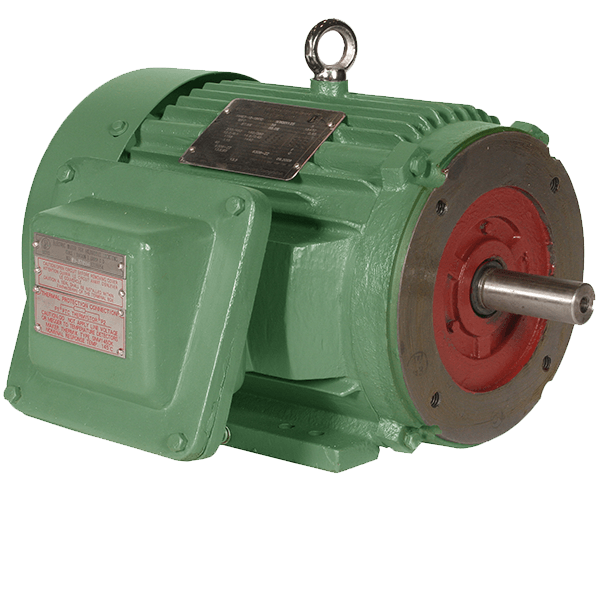

IXPEWWE100-18-405TC — Explosion Proof Motor
The IXPEWWE100-18-405TC is a 100 hp, 1800 rpm, 3-phase, 230/460v, 405tc frame, texp explosion proof motor for hazardous and classified locations. TEXP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | IXPEWWE100-18-405TC |
| Horsepower (HP) | 100 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 405TC |
| Enclosure | TEXP |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 95.4 |
| Full-Load Amps | 110 |
| Insulation Class | Class F |
| Mounting | C-Face with Feet |
| Ingress Protection | IP55 |
| Weight (lbs) | 1426 |
| Warranty | Two Year |
Applications
- Hazardous and classified locations
- Oil, gas, and chemical processing
- Grain handling and dust environments
- Class I/II Division 1 applications
Documentation & Downloads
- Spec Sheet (PDF)
- Installation & Operation Manual
- 2D CAD (DWG)
- 3D CAD Model
- Series Brochure
- Product Catalog
Frequently Asked Questions
What is the IXPEWWE100-18-405TC used for?
The IXPEWWE100-18-405TC is a 100 hp, 1800 rpm, 3-phase, 230/460v, 405tc frame, texp explosion proof motor used for hazardous and classified locations and similar loads.
What frame is the IXPEWWE100-18-405TC?
The IXPEWWE100-18-405TC uses a NEMA 405TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the IXPEWWE100-18-405TC run on?
The IXPEWWE100-18-405TC is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the IXPEWWE100-18-405TC ship?
Most in-stock units of the IXPEWWE100-18-405TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on IXPEWWE100-18-405TC?
Most in-stock items ship same-day — call to confirm availability and freight.
