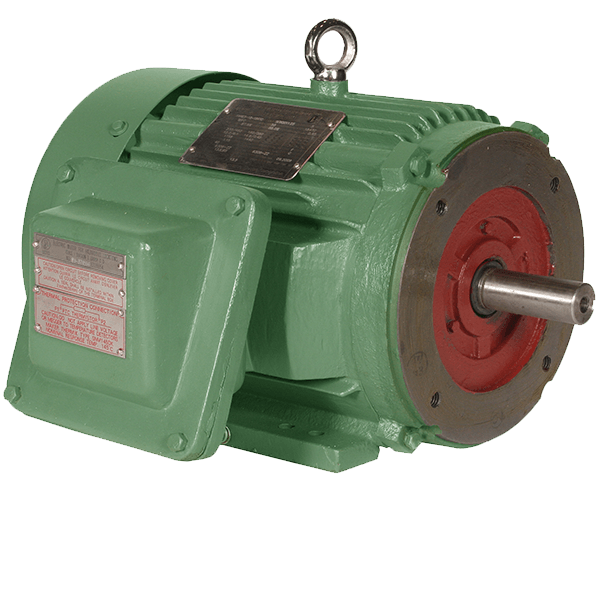

IXPEWWE15-12-284TC — Explosion Proof Motor
The IXPEWWE15-12-284TC is a 15 hp, 1200 rpm, 3-phase, 230/460v, 284tc frame, texp explosion proof motor for hazardous and classified locations. TEXP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | IXPEWWE15-12-284TC |
| Horsepower (HP) | 15 |
| Speed (RPM) | 1200 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 284TC |
| Enclosure | TEXP |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 91.7 |
| Full-Load Amps | 22.8 |
| Insulation Class | Class F |
| Mounting | C-Face with Feet |
| Ingress Protection | IP55 |
| Weight (lbs) | 476 |
| Warranty | Two Year |
Applications
- Hazardous and classified locations
- Oil, gas, and chemical processing
- Grain handling and dust environments
- Class I/II Division 1 applications
Documentation & Downloads
Frequently Asked Questions
What is the IXPEWWE15-12-284TC used for?
The IXPEWWE15-12-284TC is a 15 hp, 1200 rpm, 3-phase, 230/460v, 284tc frame, texp explosion proof motor used for hazardous and classified locations and similar loads.
What frame is the IXPEWWE15-12-284TC?
The IXPEWWE15-12-284TC uses a NEMA 284TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the IXPEWWE15-12-284TC run on?
The IXPEWWE15-12-284TC is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
