IXPEWWE150-18-444-5TBB — Explosion Proof Motor


Price:
$ 17,101.05

Description

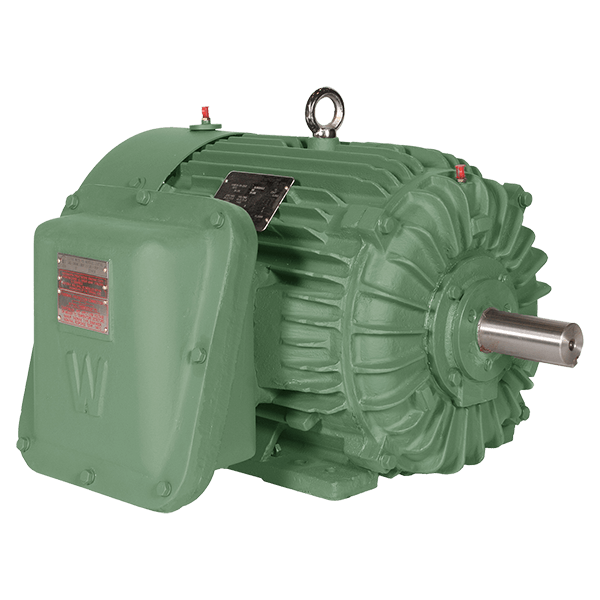

IXPEWWE150-18-444-5TBB — Explosion Proof Motor

The IXPEWWE150-18-444-5TBB is a 150 hp, 1800 rpm, 3-phase, 460v, 444/5t frame, texp explosion proof motor for hazardous and classified locations. TEXP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number IXPEWWE150-18-444-5TBB
Horsepower (HP) 150
Speed (RPM) 1800
Phase Three-Phase
Voltage 460
Frequency 60/50 HZ*
NEMA Frame 444/5T
Enclosure TEXP
Service Factor 1.15
Full-Load Efficiency (%) 95.8
Full-Load Amps 163
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Weight (lbs) 1898
Warranty Two Year

Applications

  • Hazardous and classified locations
  • Oil, gas, and chemical processing
  • Grain handling and dust environments
  • Class I/II Division 1 applications

Documentation & Downloads

Frequently Asked Questions

What is the IXPEWWE150-18-444-5TBB used for?

The IXPEWWE150-18-444-5TBB is a 150 hp, 1800 rpm, 3-phase, 460v, 444/5t frame, texp explosion proof motor used for hazardous and classified locations and similar loads.

What frame is the IXPEWWE150-18-444-5TBB?

The IXPEWWE150-18-444-5TBB uses a NEMA 444/5T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the IXPEWWE150-18-444-5TBB run on?

The IXPEWWE150-18-444-5TBB is rated 460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the IXPEWWE150-18-444-5TBB ship?

Most in-stock units of the IXPEWWE150-18-444-5TBB ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on IXPEWWE150-18-444-5TBB?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
